Summary of Contents for ZyXEL Communications MAX-206m2
- Page 1 XOHM Modem User Guide MAX-206m2 by ZyXEL © 2008 Sprint. XOHM and the XOHM logo are trademarks of Sprint. ZyXEL is a registered trademark of ZyXEL Communications Co. 2/29/08...
-
Page 3: Table Of Contents
Table of Contents Welcome to XOHM..........i Section 1: Get Started . - Page 4 2B. Advanced Menu ..........19 Display the Advanced menu .
- Page 5 Section 4: User Information and Warranty......39 4A. Important User Information ....... . . 40 Regulatory Notices .
-
Page 7: Welcome To Xohm
You’ll connect to the Internet using your choice of computer without long-term contracts or complications. Getting started with XOHM is simple: just connect your XOHM Modem MAX-206m2 by (XOHM Modem) to your computer and activate your XOHM membership, and ZyXEL you’ve got broadband. -
Page 9: Section 1: Get Started
Section 1 Get Started... -
Page 10: Your Xohm Modem
Section 1A Your XOHM Modem This section outlines the basic layout of your modem and connections. What’s in the box XOHM Modem MAX-206m2 by ZyXEL Power adapter Ethernet cable Get Started Guide User Guide Before setting up your XOHM Modem, make sure you have all the items listed above. -
Page 11: Get To Know Your Device
Your XOHM Modem lets you connect to the XOHM WiMAX network to provide fast and easy wireless connectivity to the Internet in your home or office. WiMAX overview WiMAX Tower Computer or Home Network XOHM Modem MAX-206m2 by ZyXEL Internet Telephones Your XOHM Modem... -

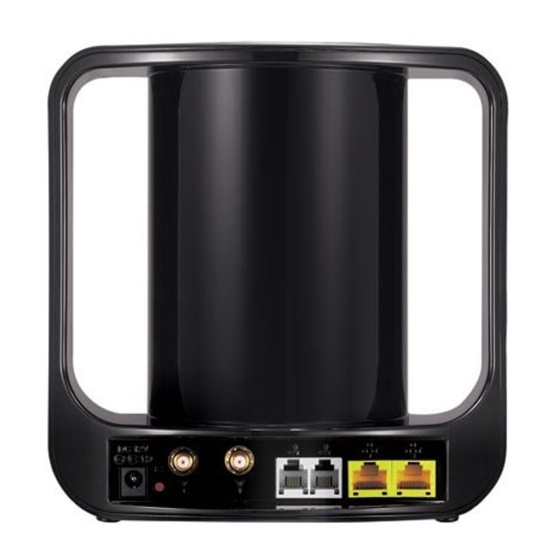

Page 12: Device Connectors (Back Of Device)
Device connectors (back of device) Reset Button Power Remote Telephones Computer/ Adapter Antenna [future service] Wi-Fi Router [optional] Connects the power adapter to power the modem. Power jack (black): Resets the unit back to factory defaults (use ONLY as a last Reset button (red): resort). -
Page 13: Modem Led Display (Front Panel)
Modem LED display (front panel) WiMAX Strength Phone 1 & 2 LAN 1 & 2 Power Signal Indicator WiMAX LEDs: The leftmost LED indicates WiMAX connectivity. A blinking LED indicates that the unit is ranging, while a solid LED indicates that a connection has been established and that the modem is ready to transmit and receive. -
Page 14: Positioning Your Modem
Indicates if the unit has power and is operating correctly. A blinking LED Power LED: indicates the unit is loading the firmware and configuration, while a solid LED indicates the unit is ready for operation. This LED will be green. Positioning your modem Your XOHM Modem has a convenient, contemporary design that allows for simple setup. -
Page 15: Accessories
Accessories Go to www.xohm.com to find accessories for your device, such as remote antennas and battery packs. If you wish to place the XOHM Modem in a location where it does not receive an adequate signal, we recommend that you purchase the optional remote antenna to extend the signal from a stronger area (such as near a window). -
Page 16: Install Your Xohm Modem
Section 1B Install Your XOHM Modem Set up the modem Find a place for your XOHM Modem. See “Positioning your modem” on page 6 for details and suggestions. Disconnect any existing LAN (Ethernet) connections or routers from the computer you are going to be using for your XOHM Modem. (Don’t worry: We’ll get you hooked up to your router when we’re finished.) Plug in the modem and connect it to your computer. - Page 17 Check the modem’s indicator lights to confirm your WiMAX signal. It may take a few moments for the signal to find your modem. If the indicator is solid green, the modem is receiving a WiMAX WiMAX Signal signal. Proceed to step 5. If the WiMAX Signal indicator is blinking, try moving the modem to a different...
-
Page 18: Connect To Your Router Or Network
Connect to your router or network Once you have set up your XOHM Modem and confirmed your web connection, you can set up your router or network as needed. Consult your router’s documentation for setup details. Disconnect the Ethernet cable from your computer and connect it to the router’s Internet port. -
Page 19: Telephone (Voip) Settings
Section 1C Telephone (VoIP) Settings Your XOHM Modem is able to support VoIP (Voice over Internet Protocol) telephony, meaning you will be able to use your XOHM WiMAX connection to provide both voice and Internet services. Coming soon: Telephone and voice (VoIP) service from XOHM will be available in the future. Visit www.xohm.com frequently for details and announcements. -
Page 21: Section 2: Your Xohm Modem Settings
Section 2 Your XOHM Modem Settings... -
Page 22: Modem Advanced Settings Overview
Section 2A Modem Advanced Settings Overview This section reviews all the basic settings options available through the XOHM advanced settings menu. Note The screen images in this user guide are illustrative and may not reflect the final software. Access the advanced settings menu Open the computer’s web browser, type in the address bar, and http://192.168.100.1... - Page 23 You may be prompted to enter a new password. To keep using the default password, click Ignore Clear and continue to the next steps. To change the password, enter and retype a new password and click Apply change the password. You will need to complete step 2 again to log in with your new password before continuing.
- Page 24 The advanced settings Home screen appears. Home area icons menu bar From the advanced settings screen, you can access your settings options either through the Home area icons in the middle of the window or through the menu bar options on the left side of the window. While it’s a good idea to familiarize yourself with these menus and options, rest assured that you may never need to use any of them.
-
Page 25: Advanced Settings Menu Options
Advanced settings menu options Home area icons – displays the LAN Configuration screen Setup – displays the Port Configuration screen Advanced – displays the Certificates screen (My Certificates and Trusted CAs) Tools Menu bar Though some headings are the same, the menu bar may offer additional sub-menu options: Advanced Port Configuration... -
Page 26: Using The Settings Menus
Using the settings menus The settings menus use just a few simple tools to help you make changes. Most of the menus allow you to enter or change values directly. If you’re satisfied with the changes, click at the bottom of the screen to save your settings. If you Apply want to cancel your changes, click Reset... -
Page 27: Advanced Menu
Section 2B Advanced Menu This section reviews all the settings options available through the menu bar’s Advanced menu. Display the Advanced menu From the settings screen (see “Access the advanced settings menu” on page 14), click Advanced in the menu bar on the left side of the screen to expand the Advanced menu. -
Page 28: Port Configuration
Port Configuration The Port Configuration menus allow you to control which modem ports are open for incoming traffic, such as applications and game hosting. There are 3 submenus. Note The Port Configuration settings do not apply for remote management of the modem. For any questions regarding remote management or similar advanced functioning please call XOHM Care at 877-333-XOHM (9646). -
Page 29: Port Forwarding
Port Forwarding The Port Forwarding menu lets you forward outside ports to inside devices so that users from the Internet can use shared resources such as web servers, remote workstations, gaming platforms, etc. Note Port forwarding does NOT apply to normal browsing or downloading by users behind the modem, and no additional settings are needed for those functions on this menu. - Page 30 There are 11 configurable rules and one “Default Rule.” When the modem receives an unsolicited packet from the Internet, it will first look at rules 1-11 to see if the traffic’s port matches a rule. If not, the modem will see if a Default Server is present, and if so, pass the packet to the Default Server.
-
Page 31: Trigger Port
Trigger Port allows you to configure up to 12 “trigger” ports that can open and close Trigger Port as necessary, instead of being always open. Advanced Menu... -
Page 32: Voice Menu
Section 2C Voice Menu Reminder Though your modem is capable of supporting VoIP (Voice over Internet Protocol) telephony, telephone and voice (VoIP) support from XOHM will not be available upon product launch. The XOHM WiMAX network will add telephone/voice (VoIP) support in the future. -
Page 33: Tools Menu
Section 2D Tools Menu This section reviews all the settings options available through the menu bar’s Tools menu, including certificate management, remote management, modem logs, and password setup. Display the Tools menu From the settings screen (see “Access the advanced settings menu” on page 14), click Tools in the menu bar on the left side of the screen to expand the Tools... -
Page 34: Certificates
My Certificate self-signed or submitted manually or automatically to a Certificate Authority (CA), so that a CA can verify the identity of the MAX-206M2 as an authorized network (WiMAX) client. Tools Menu... - Page 35 Click to display the certificate creation screen, and then enter the appropriate Create information for your certificate. Once you’re finished, you can either accept the certificate as self-signed or you can submit it for approval by a CA, which would allow you to add the certificate through the “Trusted CAs”...
-
Page 36: Trusted Cas
Trusted CAs This menu is used to import certificates from trusted CAs to fully incorporate mutual authentication via certificates. Clicking allows you to upload a signed certificate Import from a CA to the XOHM Modem in order to verify the identity of the CA. Tools Menu... -
Page 37: Password Setup
Password Setup screen lets you reset your XOHM Modem password. Password Setup Enter your old password, and then enter and reenter the new password and click Apply to save the new password. Tools Menu... -
Page 39: Section 3: Troubleshooting
Section 3 Troubleshooting... -
Page 40: Troubleshooting
Frequently Asked Questions System What are the minimum system requirements to be able to run the XOHM Modem, MAX-206m2 by ZyXEL? The minimum system requirements are: 32MB RAM (64MB recommended) 20MB available hard disk space Available 10/100Mbps Ethernet port Web browser: XOHM Internet service has been tested with Internet Explorer 6 and 7, Firefox 1.5 and 2.0, and Safari 2.0. -
Page 41: Issues
Make sure the round end of the power adapter is firmly connected to the modem’s power jack. Make sure you are using the power adapter that came with your modem. The correct adapter for the MAX-206m2 provides output power of 12V AC at 1 Amp. If you still see no lights, call (9646). - Page 42 Your modem may not be receiving the proper voltage. Make sure you are using the power adapter that came with your modem. The correct adapter for the MAX-206m2 provides output power of 12V AC at 1 Amp. should be illuminated if the modem is using default settings.
- Page 43 XOHM Care 877-333-XOHM What do I do if my browser is not working properly? The web interface for the XOHM Modem, MAX-206m2 ( ) should http://192.168.100.1 be accessible to any computer connected to the modem. If you cannot display this page, you will not be able to reach any network device or the internet.
- Page 44 If the Reset option does not work, your XOHM Modem could have corrupted firmware. Replace the modem. My XOHM Modem is broken. How do I replace it? First, try the Reset Button . Press and hold the red Reset Button on the back of the device for 10 seconds and then release the button to restore the factory default settings.
-
Page 45: General
General Can I use my XOHM Modem with more than one computer? Will that impact the quality of the service I am receiving? With XOHM, you can connect to the Internet in more than one location, and extend your service to multiple users throughout your location. You can connect up to two computers directly to the two Ethernet ports of the XOHM Modem, or you can attach a standard Wi-Fi router to one of the Ethernet ports to create a wireless local area network. -
Page 47: Section 4: User Information And Warranty
Section 4 User Information and Warranty... -
Page 48: Important User Information
The ZyXEL MAX-206m2 Modem has been tested for compliance with FCC Caution: RF exposure limits. The ZyXEL MAX-206m2 Modem should not be used with external antennas that are not approved for use with this device. Use of this device in any other configuration may exceed the FCC RF exposure compliance limits. - Page 49 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
-
Page 50: Important Notice
Do not operate the ZyXEL MAX-206m2 Modem in any aircraft, whether the aircraft is on the ground or in flight. In aircraft, the ZyXEL MAX-206m2 Modem MUST BE POWERED OFF. When operating, it can transmit signals that could interfere with various onboard systems. -
Page 51: Technical Specifications
Technical Specifications Environmental Specifications Operating Temperature 0°C – 55°C Storage Temperature -30°C – 85°C Humidity 5% to 90% (non-condensing) Drop 75cm drop, no damage – fully operational Mechanical Specifications Dimensions (W x D x H) 160mm x 118mm x 167mm Weight 480g Battery Pack... - Page 52 Interface Status LED Color Not Connected OFF (no light) 10 or 100Mbps (Ethernet) Solid Green Activity Stay Solid Green VoIP 1 & VoIP 2 When the phone port’s defined SIP account Solid Green for outgoing calls is registered When the voice port is off-hook Flashing Green (slow) When the phone port’s defined SIP account Solid Yellow...
-
Page 53: Software Specifications
Software Specifications WiMAX Standard IEEE 802.16e-2005 PRL (preferred roaming list) support Authentication EAP-TLS, EAP-TTLS Mobile IP support Transmitter Specifications Normal Output Power 23dBm TX Max Power 27dBm Frequency Range 2.5GHZ – 2.7GHz Bandwidth 5M, 10M Modulation Method QPSK, 16QAM, 64QAM Receiver Specifications Frequency Range 2.5GHZ –... -
Page 54: Hardware Specifications
Hardware Specifications Interface Type Ethernet and VoIP Common Air Interface WiMAX Channel Spacing 250 KHz Transmitting (max. data rate) Forward link: 20 Mbps Reverse link: 10 Mbps Supply Voltage 12 V Communication Ports 4 Ethernet Voice Capability 2 VoIP Important User Information... -
Page 55: Manufacturer's Warranty
Section 4B Manufacturer’s Warranty ZyXEL warranty With the following warranty, ZyXEL guarantees that this product will be free from any defects, due to inferior materials or workmanship, for a period of up to two (2) years from the date of purchase. During the warranty period, should the product prove defective in workmanship and/or materials, ZyXEL’s RMA center will repair the product and/or replace the defective components or the defective product without charge on following terms:... - Page 56 This warranty does not cover: Any adaptation and/or modification for the purpose of improvement and enhancement of the product’s usual range of application as described in the user guide without ZyXEL prior written permission. Damages due to: misuse, including but not limited to: (1) use of the product for the purpose other that that it is deigned for, or failure to follow ZyXEL user guide, and (2) product installation or operation in conditions other than specified by the standards and safety regulations enforced in the country of operation;...
-
Page 57: Index
Index password 14 change 15 password setup 29 accessories 7 phone ports 4 advanced menu 19–23 port configuration 20 advanced settings menu port forwarding 21 access 14 positioning your modem 6 home screen 16 power jack 4 options 17 password 14 regulatory notices 40 user name 14 reset button 4...
