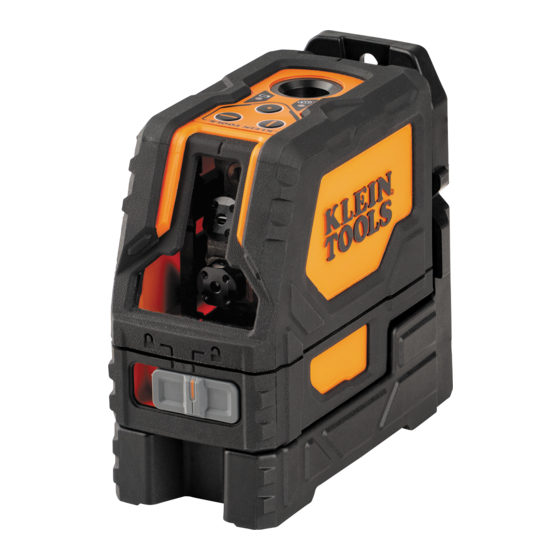

- Page 1 ENGLISH INSTRUCTION MANUAL Self-Leveling 93LCL Cross Line Laser Level Self-Leveling 93LCLS Cross Line Laser Level with Plumb Spot • HORIZONTAL AND VERTICAL CROSS LINES • PLUMB SPOT (MODEL 93LCLS) 93LCL ESPAÑOL pg. 11 FRANÇAIS pg. 21 93LCLS...
-
Page 2: General Specifications
Klein Tools 93LCL and 93LCLS are self-leveling laser alignment instruments that can be used to deliver horizontal and/or vertical cross lines for alignment and layout applications. Furthermore, model 93LCLS can also deliver a plumb spot directly above the instrument. • Operating Altitude: 6562 ft. (2000 m) •... - Page 3 WARNINGS To ensure safe operation and service of the instrument, follow these instructions. Failure to observe these warnings can result in serious personal injury, re, or electrical shock. Retain these instructions for future reference. WARNING: LASER RADIATION. DO NOT STARE INTO BEAM. Class II Laser. •...
-
Page 4: Feature Details
Vertical Line Apeture Plum Spot Apeture (93LCLS) Horizontal Line On/Off Button Battery Compartment Door Vertical Line On/Off Button 1/4-20 Tripod Mount Plum Spot On/Off Button (93LCLS) 5/8-11 Survey Tripod Mount Low Battery Indicator Magnetic Mount Bracket Excessive Tilt Indicator Magnets... - Page 5 , and plumb spot (93LCLS model only) to turn ON and OFF their respective laser lines. These buttons are only active once the Pendulum Lock/Unlock Slider Switch been set to the Unlocked position. If the Pendulum Slider Switch is moved from the Unlocked to the Locked position while the laser beams are active, they will be turned OFF.
- Page 6 ENGLISH OPERATING INSTRUCTIONS MAGNETIC MOUNTING BRACKET The instrument is attached to a magnetic mounting bracket. The bracket may be magnetically attached to any magnetic structure such as steel studs, ducts, structural beams, and steel doors. The bracket also features a key-hole for mounting the instrument using a screw or nail to non-magnetic structures.
- Page 7 CHECKING LASER BEAMS FOR LEVEL ACCURACY Horizontal Beam Left/Right Tilt (FIG. 1) Secure instrument via its mounting bracket at a distance x from a vertical wall structure as shown. Rotate the instrument on the bracket to the left so that the right side of the beam is projected on the wall directly across from the instrument, mark...
- Page 8 The distance d should be ≤5/32" (4 mm) for a 33' (10 m) ceiling or ≤3/32" (2 mm) for a 15' (4.6 m) ceiling. FIG. 3 Plumb Spot (Model 93LCLS Only, FIG. 4) CEILING Position instrument on the floor and project a spot with the plumb spot laser to the ceiling.
-
Page 9: Maintenance
Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov or www.erecycle.org for additional information. CUSTOMER SERVICE KLEIN TOOLS, INC. 450 Bond Street Lincolnshire, IL 60069 1-877-775-5346 customerservice@kleintools.com...
