Summary of Contents for iLive IHCTB627CW

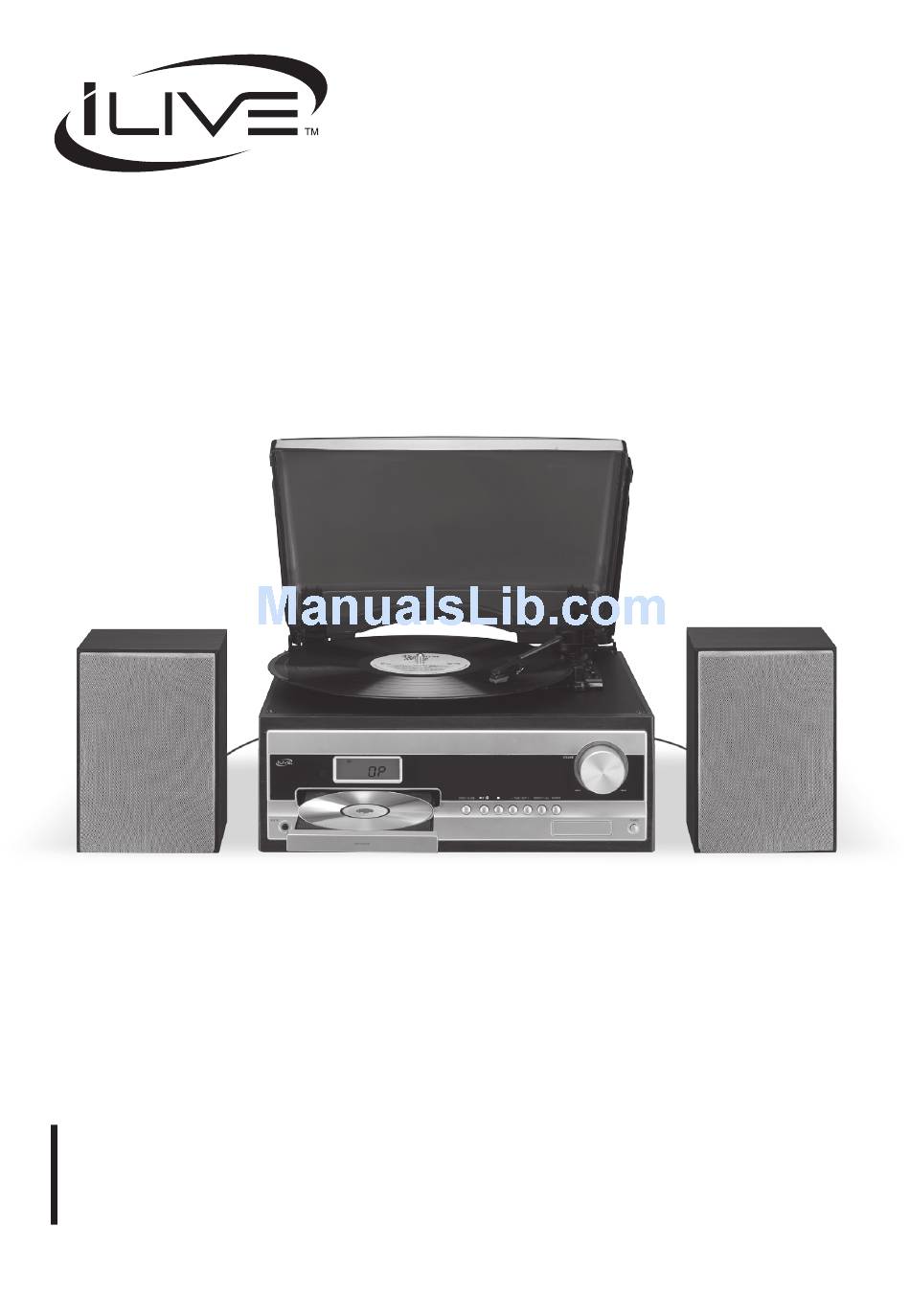

- Page 1 Wireless Home Music System User’s Guide for Model IHCTB627CW v1831-01 For the most up-to-date version of this User’s Guide, go to www.iliveelectronics.com...
- Page 2 Safety Instructions & Warnings WARNING: To reduce the risk of electric CAUTION RISK OF ELECTRIC SHOCK shock, do not remove cover (or back). No DO NOT OPEN user-serviceable parts inside. Refer servicing ATTENTION to qualified service personnel. RISQUE D' ÉLECTROCUTION NE PAS OUVRIR The exclamation point within an equilateral triangle is intended to alert the user to...
-
Page 3: Important Safety Instructions
Important Safety Instructions Battery Warnings • WARNING: Do not ingest the battery, Chemical Burn • Read these Instructions. Hazard. • Keep these Instructions. • The remote control supplied with this product contains a • Heed all Warnings. coin/button cell battery. •... -
Page 4: Table Of Contents
Table of Contents Setup ....................5 Includes Power Speakers... -
Page 5: Setup
Setup Includes • Remote control with CR2025 battery • 45 rpm adapter • User's Guide SPEAKER OUTPUT AUDIO OUTPUT FM ANT. 120V~60Hz Power Plug the built in AC power cord into a standard wall outlet. AUDIO OUTPUT AUDIO OUTPUT Speakers Connect the speaker wires to the speaker inputs on the turntable. -
Page 6: Orientation
Orientation Features & Controls Dust Cover SPEAKER OUTPUT AUDIO OUTPUT Audio Output FM ANT. Connect to send 120V~60Hz audio signal to an external source. Cassette Speaker Output Player Connect included speakers here. FM Antenna Speakers Remote Display Volume Receiver VOLUME OPEN / CLOSE –... - Page 7 45 rpm Record Adapter Tone Arm Lift Switch Turntable Tone Arm Lock Tone Arm & Stylus Auto Stop Select ON or OFF. Record Speed Choose 33, 45, or 78, depending on the type of record to be played.
-
Page 8: Remote Control
Remote Control Functions Power Open POWER OPEN Press to power the Press to open the CD player. system ON or OFF. Stop Source Press to stop audio track. SOURCE Press to set the media source. Play/Pause/Pair Repeat 1/All Press to play or pause an Press to repeat 1 audio track or audio track. -
Page 9: Connecting External Devices
Connecting External Devices Pairing Bluetooth and Playing Audio Wirelessly 1. Set the Source to BT and press and hold the Play/Pause/Pair button. The pairing indicator will begin quickly flashing blue. When pairing, remain within 3 feet of the unit. 2. Using the controls on your Bluetooth device, search for and select IHCTB627 in your Bluetooth settings to pair. If your device requests a password, enter the default password 0 0 0 0 . -
Page 10: Operation
Operation Playing a Record It is recommended that you use extreme care when manipulating the tone arm, stylus, and other components of this turntable. These parts are very sensitive and can easily break or become damaged if they are carelessly handled. 1. -
Page 11: Loading And Playing A Cd
Loading and Playing a CD 1. Press the Open/Close button to open the CD tray. 2. Place a CD in the tray, label side facing up, and close the CD tray. 3. Set the Source to CD mode. 4. Use the controls on the unit to begin play, pause, stop and skip audio on the loaded disc. Programming a CD 1. -
Page 12: Customer Support
Customer Support Contact Information Website: www.iliveelectronics.com Email Support: prodinfo@dpiinc.com Email Parts: partsinfo@dpiinc.com Phone Support: 1-888-999-4215 Warranty For Warranty Information and the most up-to-date version of this User’s Guide, go to: www.iliveelectronics.com International Support To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.iliveelectronics.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.iliveelectronics.com...
