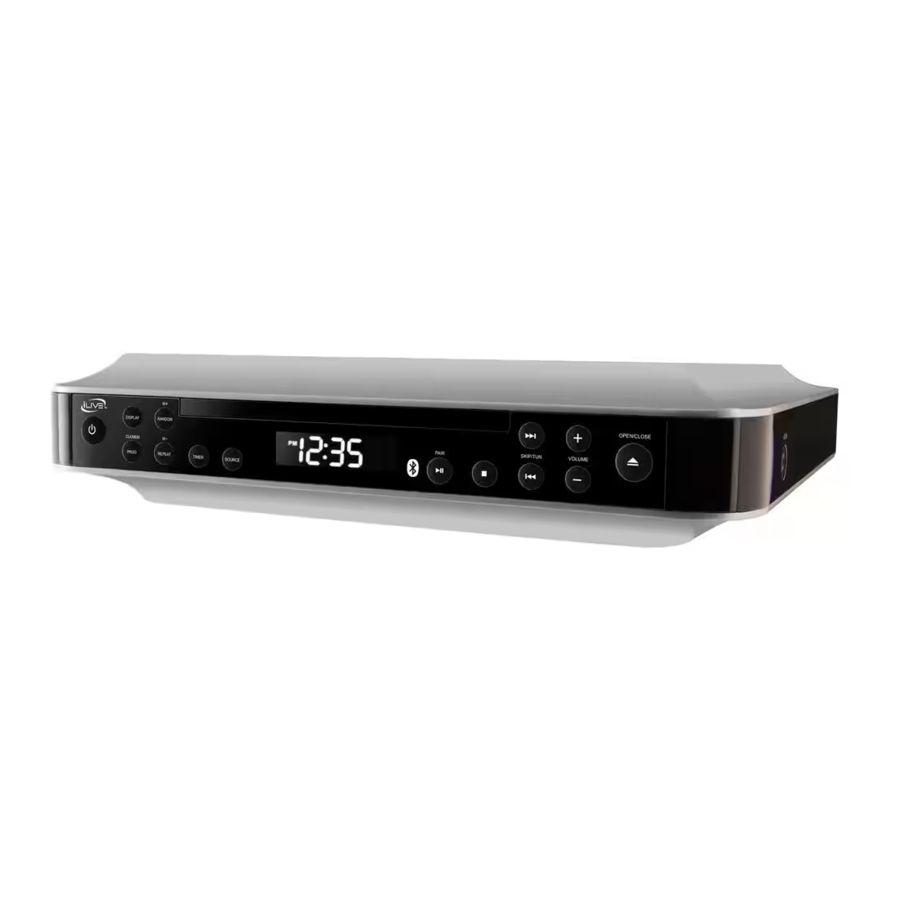

iLive IKBC384S Manual

Orientation

Clock & Timer

Setting the Clock

1. With the power off, press and hold theClk Set/Mem button. The hour on the display will begin flashing.
2. Press theTune +/- buttons to adjust the hour.
3. Press theClk Set button again to adjust the minutes. The minutes on the display will begin flashing.
4. Press theTune +/- buttons to adjust the minutes.
5. Press theClk Set button to finish setting the time, or wait for the display to stop flashing.

Setting the Timer

1. With the power off, press theTimer button. The display will flash.
2. Press theTimer buttons to adjust the timer in increments of 10 min.
3. Press theTune +/- buttons to adjust the timer in increments of 1 min.
4. Wait for the display to stop flashing.
5. After the set time has expired, the under cabinet music system will sound an alarm.

Disabling the Timer

To cancel the alarm after it has sounded, press the Power button.
To cancel the timer before the alarm has sounded, press the Timer button until the display reads 000 and the timer light is no longer lit.

CD

Note: This unit is not compatible with MP3 CDs.

Loading and Playing a CD

1. Open theCD Door.
2. Place a CD into the tray, label side facing up.
3. Close theCD Door.
4. Press theSource button to switch to CD mode.
5. Press thePlay/Pause button to begin playing the loaded CD.
6. Press theSkip/Tune buttons to cycle through tracks.

Programming a CD

1. Press theStop button to stop the CD during play.
2. Press theProg button.
3. "PROG" will begin to blink on the display.
4. Press theTune +/- buttons to select a track.
5. Press theProgram button to save the selected track to the program.
6. Repeat steps 4 and 5 to program up to 20 tracks.

Radio

Radio Reception

An FM Antenna is built into the unit. To improve FM radio reception, adjust the position of the unit.

Tuning the FM Radio

1. Press thePower button to turn the under cabinet music system on.
2. Press theSource button to switch to FM Radio Mode.
3. Press theTune +/- button to tune the radio manually.
4. Hold down theTune +/- button to scan for available stations.

Saving and Playing a Station as a Preset

1. Tune to the desired station.
2. Press theClk Set/Mem button.
   Preset number will appear on the display.
3. Press theM +/- buttons to adjust to the desired preset number.
4. Press theClk Set/Mem button to save the current radio station to the selected preset.
5. Press theM +/- buttons to cycle through preset radio stations.

Bluetooth & Line In

Pairing a Bluetooth Device for the First Time

1. Power on the unit by pressing thePower button.
2. Press and hold thePair button. The Pairing Indicator will begin flashing quickly. When pairing, remain within 3 feet of the unit.
3. Using the native controls on your Bluetooth device, select theIKBC384 in your Bluetooth settings to pair.
4. If your device requests a password, enter the default password0 0 0 0 .
5. Refer to the user's manual for your specific device for instructions on pairing and connecting Bluetooth devices.
6. When successfully paired and connected, the Pairing Indicator will be solid.
7. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due to a reset of the device.
8. If your device should become unpaired or you find it is unable to connect, repeat the above steps or press the Pair button to start the pairing process pairing again.

Playing Audio through Bluetooth

1. After successfully pairing to a device, use the native controls on the connected Bluetooth Device to select a track.
2. To play or pause the selected track, use the native controls on the connected Bluetooth Device, or thePlay/Pause button on the unit.
3. To skip forward or back on the selected track, use the native controls on the connected Bluetooth Device, or theSkip/Tune +/- buttons on the unit.
4. Audio played through the connected Bluetooth device will now be heard through the speakers.

Using the Speakerphone

1. When a call is received, a ringtone will sound through the unit.
2. Press the button to accept the call, or accept the call using the controls on the connected phone.
3. The incoming call received through the device will now be heard through the speaker.
4. To end the call, press the button or end the call using the controls on the connected device.

Using the Audio Input

Requires a 3.5mm audio cable (not included).

1. Connect a 3.5mm audio cable to theLine In Input on the side of the unit and the audio output on an audio device.
2. Press thePower button to turn the unit on.
3. Press theSource button to switch to Line In mode.
4. Use the native controls on the connected device to play your audio through the unit.

International Support

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

ADDITIONAL WARNINGS AND PRECAUTIONS

•
  TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected form the mains socket outlet completely.
•
  Shock hazard - Do Not Open.
• Caution and marking information is located at the rear or bottom of the apparatus.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus.
•
  To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing.
•
  Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure.
•
  Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
•
  Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
•
  Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
•
  The remote control's button cell battery contains mercury. Do not put in the trash, instead recycle or dispose of as hazardous waste.
• This product is supplied with a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns and can lead to death.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
• Batteries should be recycled or disposed of as per state and local guidelines.
•
  This product may contain chemicals known to the State of California to cause birth defects, or other reproductive harm (California Prop 65). Wash hands after handling.
• This product meets and complies with all Federal regulations.
