VXi Reveal™/Xplorer™ Quick‐Start Guide
IMPORTANT: CHARGE HEADSET FULLY PRIOR TO FIRST USE
Package Contents
1. Headset
2. 2 Ear Hooks (1 small, 1 large)
3. 4 Contoured Ear Buds (multiple sizes)
4. USB Charging Cable
5. Auto Adapter
6. Quick‐Start Guide
7. Warranty and Compliance Insert

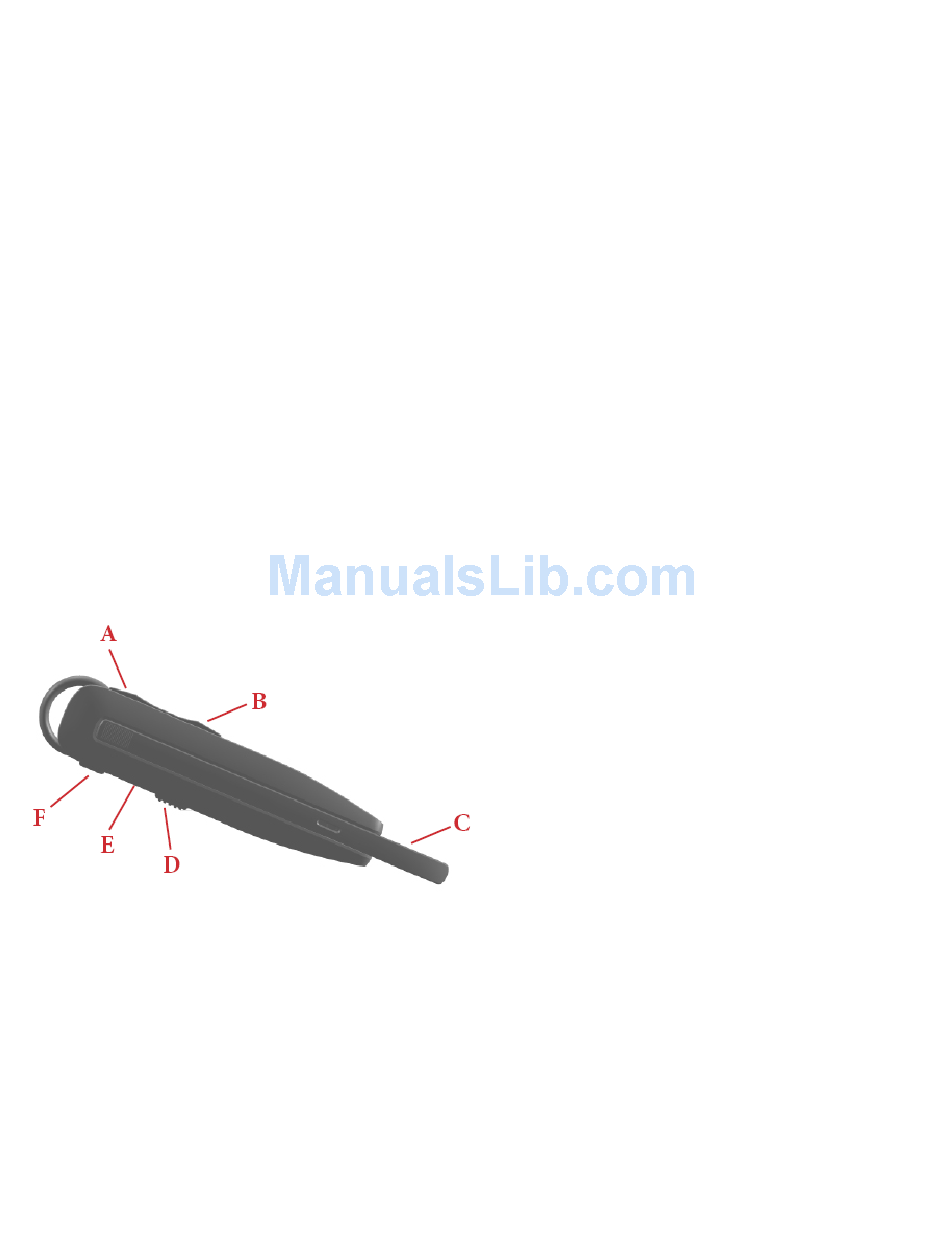

Features and Functions
A. Volume Up/Mute
B. Volume Down
C. Extendable Microphone Boom
D. On/Off Switch
E.
Indicator Lights
F.
Multifunction Button (MFB)
G. NFC Zone (pictured below)
IMPORTANT SAFETY NOTE: Prolonged exposure to high volume levels can damage your hearing. To avoid injury, set the volume to
the lowest comfortable level. If you experience ringing in your ears, or voices sound muffled, stop using the headset. Avoid turning up
the volume to block noisy surroundings. It's possible for your ears to adapt to volume that is too high, and this could result in
permanent hearing damage without any noticeable discomfort.
1
Advertisement
Table of Contents
Related Manuals for BlueParrott VXi Reveal
Summary of Contents for BlueParrott VXi Reveal
- Page 1 VXi Reveal™/Xplorer™ Quick‐Start Guide IMPORTANT: CHARGE HEADSET FULLY PRIOR TO FIRST USE Package Contents 1. Headset 2. 2 Ear Hooks (1 small, 1 large) 3. 4 Contoured Ear Buds (multiple sizes) 4. USB Charging Cable 5. Auto Adapter 6. Quick‐Start Guide 7. Warranty and Compliance Insert Features and Functions A. Volume Up/Mute B. Volume Down C. Extendable Microphone Boom D. On/Off Switch Indicator Lights Multifunction Button (MFB) G. NFC Zone (pictured below) IMPORTANT SAFETY NOTE: Prolonged exposure to high volume levels can damage your hearing. To avoid injury, set the volume to the lowest comfortable level. If you experience ringing in your ears, or voices sound muffled, stop using the headset. Avoid turning up the volume to block noisy surroundings. It’s possible for your ears to adapt to volume that is too high, and this could result in permanent hearing damage without any noticeable discomfort. 1 ...
-
Page 2: Turning Headset On/Off
VXi Reveal™/Xplorer™ Quick‐Start Guide Wearing and Adjusting the Reveal To get the best performance from our noise‐canceling technology, angle the microphone boom towards the corner of your mouth. Positioning is important; small adjustments in microphone placement can improve performance. The headset can be worn on either ear, with or without the ear hook. Choose the ear bud that best fits your ear. To adjust the fit, rotate the ear bud so that the stabilizer loop (if applicable) presses against the back curve of your ear. Using the Headset in High‐Noise Situations The microphone boom is extendable for greater levels of noise cancelation in noisy environments. Simply slide the boom in or out as needed. Charging Connect charger cord to the headset’s USB charging port. The headset indicator lights will illuminate red when charging and blue when fully charged. Turning Headset On/Off Slide the switch to turn the headset on or off. One‐Touch Pairing (NFC) Confirm that your cell phone is NFC‐capable. Make sure that NFC is enabled on your cell phone. Turn the headset on. 4) Place the NFC zone of your cell phone against the NFC zone of the headset and hold together while your cell phone registers the headset. 5) Follow the prompts on your cell phone until it confirms pairing is successful. NFC Zone on headset (back of unit, just below earpiece receiver) 2 ... -
Page 3: Manual Pairing
VXi Reveal™/Xplorer™ Quick‐Start Guide Note: NFC and One‐Touch Pairing are dependent on your cell phone. The size and sensitivity of your phone’s NFC zone and how to connect the headset may vary between devices. Manual Pairing Placing Headset into Pairing Mode When you turn the headset on for the first time, it will go into pairing mode automatically. If you want to pair the headset with another device, you will need to manually put it into pairing mode: 1) Turn the headset on and make sure it does not connect to another device. 2) Press and hold the MFB for 5 seconds, until the lights alternate flashing between red and blue. You will hear the voice prompt “Discovering” (in English). 3) Headset will be visible for pairing to devices for 120 seconds. Pairing to a Cell Phone 1) Make sure that other Bluetooth devices are turned off or out of range. 2) Place headset into pairing mode. 3) Put your cell phone in Bluetooth Search/Scan Mode per the manufacturer’s instructions. 4) Select “VXi Reveal” or “VXi Explorer” to pair. (Passcode is “0000” if needed.) 5) When connected, the headset will give you the voice prompt, “Your headset is connected” (in English). Multi‐Point Mode Multi‐point mode is the default mode for this headset. It enables the headset to be simultaneously paired and connected to two devices. In multi‐point mode, the headset will monitor both devices and allow you to switch between them when there is an incoming call. To use Multi‐Point: 1) Pair each device you wish to use with the headset. Power off the headset. 2) Enable Bluetooth, or power on both paired devices, then power on the headset. 3) You should hear the voice prompt “Your headset is connected” (in English) twice, as the headset connects to each device. 3 ... -
Page 4: Quick Reference Table
VXi Reveal™/Xplorer™ Quick‐Start Guide Quick‐Reference Table Voice Indicator Function Button/Duration of Press LED Indicator Audio Indicator (in English) On = Three quick blue flashes “Power on” or “Power Power On/Off Slide Switch (Green = On) Short tone Off = Four quick off” red flashes Red and blue, Manual Pairing Mode Press and Hold MFB (5 seconds) NONE “Discovering” alternating flash Volume Up Volume Up (quick press) NONE Single tone NONE Volume Down Volume Down (quick press) NONE Single tone NONE Single tone, reminder tone Mute (On/Off) Volume Up (1‐2 seconds) NONE ... - Page 5 203601A_One-Year_Warranty_for_Wireless_063014_Layout 1 7/1/14 10:47 AM Page VXi WARRANTY STATEMENT (1) VXi warrants that your product will be free from defects in material and workmanship for one year from the date of purchase. If, during the first year from the date of purchase, your product fails to work due to a defect in material or workmanship, VXi will repair or replace the product, at its election, free of charge.
- Page 6 203601A_One-Year_Warranty_for_Wireless_063014_Layout 1 7/1/14 10:47 AM Page DÉCLARATION DE GARANTIE VXI (1) VXi garantit votre produit pendant un an à compter de la date d'achat contre tout défaut matériel et vice de fabrication. Si, lors de la première année à compter de la date d'achat, votre produit tombait en panne suite à...
