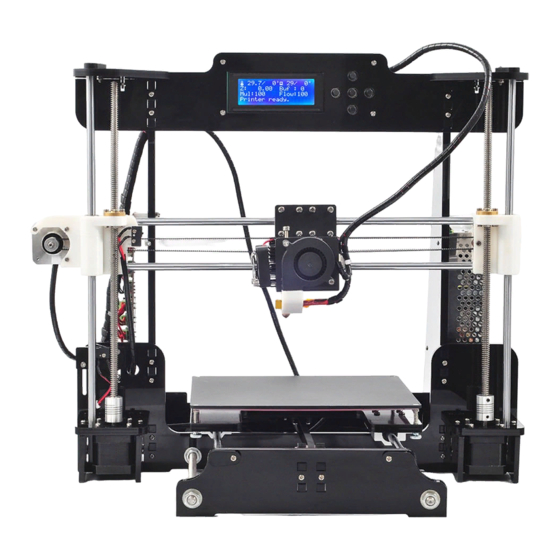

ALUNAR M505 3D Printer Installation Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the M505 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alunar M505

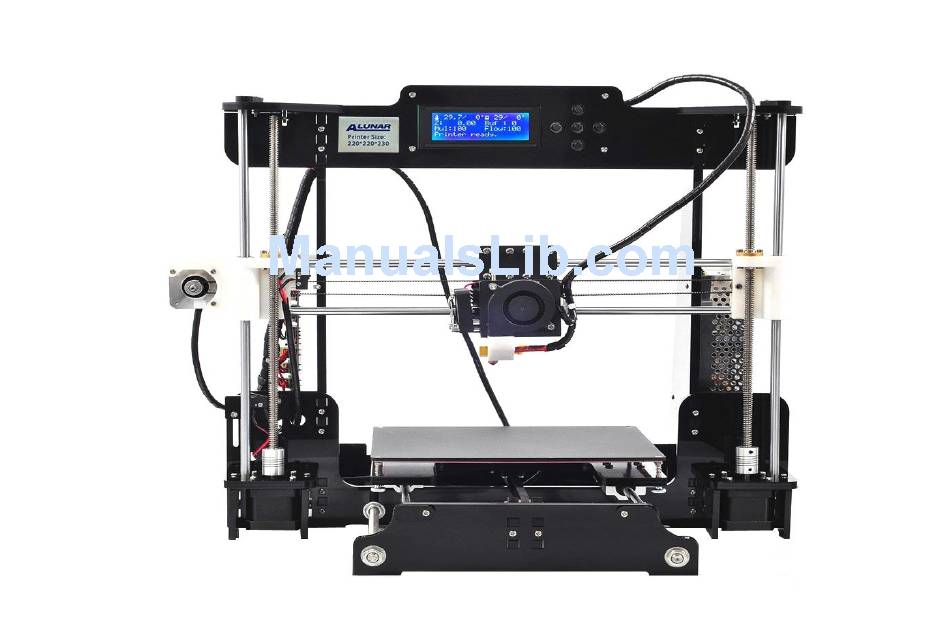

  • Page 1 ALUNAR M505 3D Printer Installation Guide...
  • Page 2 Assembly Instructions Attention: 1.Please make sure the package not broken when you receive it. 2.Please check the printer parts according to the packing list. 3. Please contract if any questions.
  • Page 3 Name of each printer part...
  • Page 4: Assembly Step

    Assembly Step 1 Please be aware the screw holes is in red circles Step 1...
  • Page 5 Assembly Step 2 Please be aware the screw holes is in black circles Step 2...
  • Page 6 Assembly Step 3 Step 3...
  • Page 7 Assembly Step 4 Step 2 Step 3...
  • Page 8 Assembly Step 5...
  • Page 9 Assembly Step 6 Threaded rod 400mm...
  • Page 10 Assembly Step 7 Y Guide rod 380mm...
  • Page 11 Assembly Step 8 Attention:Leave vacancy between belt fixation clamp and hot bed fixed plate for belt positioning.
  • Page 12 Assembly Step 9 Before Assembly After Assembly Attention: Please diagonally tighten the screws when all are in there place...
  • Page 13 Assembly Step 9 Attention: Belt is for X&Y axis transmitting .Cut the length you need to each transmission shaft. The belt is 1.5m in total and 10-20cm left after installation.
  • Page 14 Attention: Hot bed screws should be in the bottom, and Assembly Step 10 wing nuts will keep the height of hot bed level as well as firming the hotbed.
  • Page 15 Assembly Step 11 Attention: This hole is for Z axis guide rod positioning...
  • Page 16 Assembly Step 12...
  • Page 17 Assembly Step 13 Z axis Guide rod:380mm...
  • Page 18 Assembly Step 13...
  • Page 19 Assembly Step 14 Attention: loose the jackscrew of elastic coupling to place T lead screw to the bottom, then tighten the jackscrew. T lead screw 345mm...
  • Page 20 Attention: Please keep A&B at the same level during X Assembly Step 15 rods installation. Knock the guide rods with a hammer slightly if it’s hard to place. X axis Guide rod 436mm...
  • Page 21 Assembly Step 16 After disassembly Before disassembly After disassembly Loose M4*6 screws first, then separate extruder from L black aluminum parts, remember to keep the screws.
  • Page 22 Assembly Step 17 Replace M3*20 screws with M3*45 screws M3*45 screw holes...
  • Page 23 Assembly Step 18...
  • Page 24 Assembly Step 19 Attention: Install M4*6 screw. Tighten M6 Screw on the throat with spanner till extruder is not loose.
  • Page 25 Assembly Step 20...
  • Page 26 Assembly Step 21 Attention: Belt is for X,Y axis transmitting . The length of belt is 1.5m in total. Normally there’ll be 10-20cm left after installation.
  • Page 27 Assembly Step 21 M3 Nut...
  • Page 28 Assembly Step 22...
  • Page 29 Assembly Step 23 Attention This is the wiring diagram of power supply. 1, 2, 3 seperately represent the line of fire (brown),Zero line (blue), ground wire (yellow). 4,5, 6 represent negative pole (black) (-);7,8,9 represent the positive pole (red) (+).To avoid danger , please assure the installation is correct .
  • Page 30 Assembly Step 24 Red circles stand for the power screw holes Power Supply...
  • Page 31 Assembly Step 25 Mainboard...
  • Page 32 Length of ALUNAR M505 Components Wire...
  • Page 33 Assembly Step 25 Attention: Please connect the electronics wire to each component correspondingly.
  • Page 34 Assembly Step 26...
  • Page 37 Assembly Step 27 Installation Picture 3...
  • Page 38 Assembly Step 27 Installation Picture 4...
  • Page 39 Assembly Step 27 Installation Picture 5...
  • Page 40: Installation Complete

    Installation Complete • Congratulations ! You have just made yourself a 3D printer ! • Please contact your 3D printer supplier if any puzzles during using process. • Thank you for choosing our products, we will always provide you more services.
