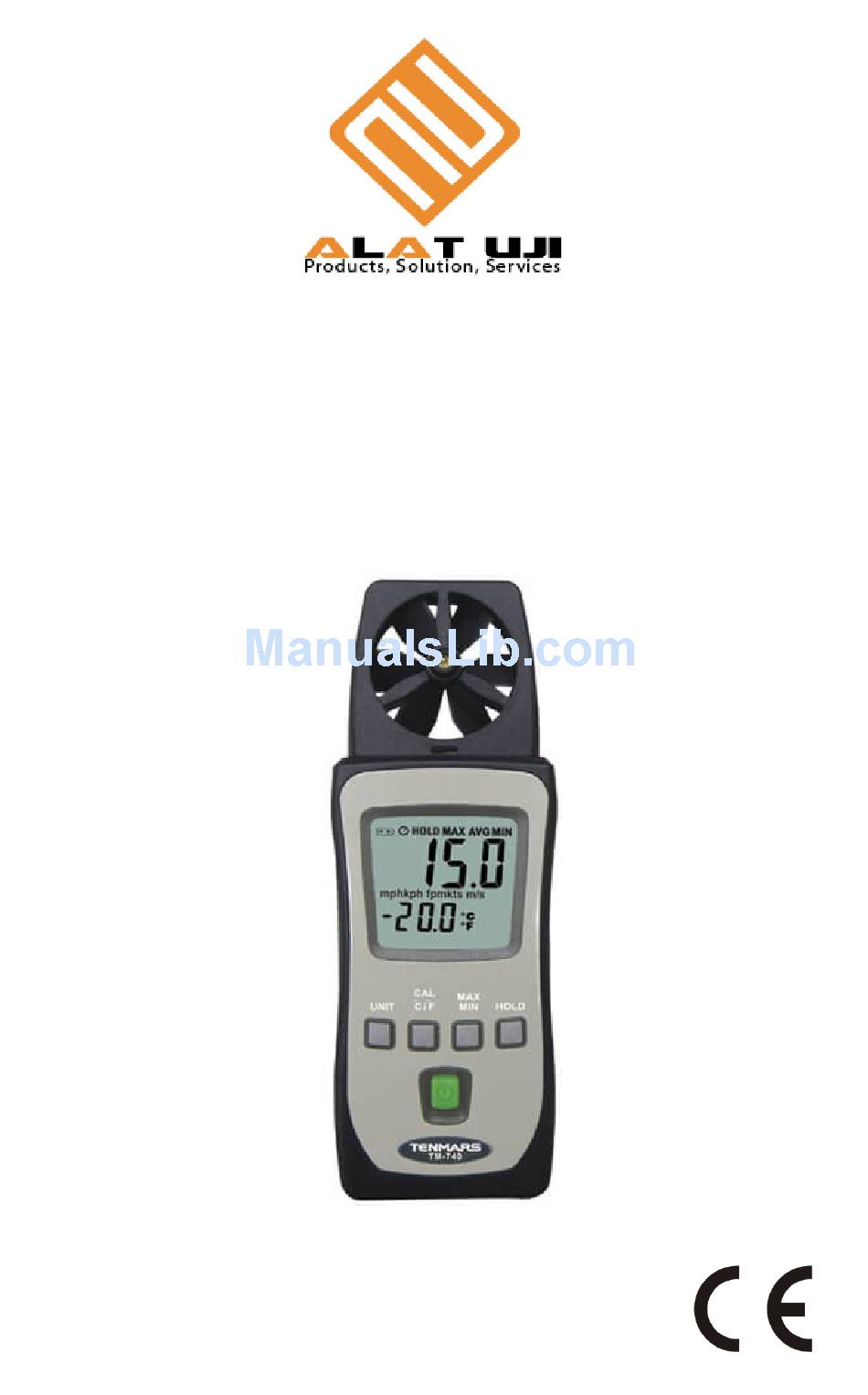

- Page 1 Air Velocity Meter TM-740 User’s manual alatuji.com HB2TM7400001...
-
Page 2: Table Of Contents
Table of Contents 1. Description ........... 3 2. Safety Precaution ........ 3 3. features ..........5 4. Specifications........5 General Specifications ........5 Electrical Specification: ......... 6 Accessories: ..........6 5. Air Velocity Measures......7 6. Operation ..........8 6.1. Velocity Unit Button: ...... -
Page 3: Description
TM-740 1. Description TM-740 measures air speed and temperature. It is ideal for spot measurements. at air outlets on account of its 30mm vane. In addition to air speed and temperature. 2. Safety Precaution CAUTION Be extremely careful for the following conditions while measuring. - Page 4 TM-740 ․ Operating Environment : Indoors use. This instrument has been designed for being used in an environment of pollution degree 2. ․ Operation Altitude : Up to 2000M. ․ Operating Temperature & Humidity : 40 , 0%~ 80%RH. ℃...
-
Page 5: Features
TM-740 3. Features ․ 30mm 6 plastics vane. ․ Light air response 0.4m/s. ․ Air flow calculate function. ․ Max/Min/Avg and data hold. ․ Auto power off with disable function. 4. Specifications General Specifications ․ Display : Dual LCD display. The maximum value on the primary display is 9999. -
Page 6: Electrical Specification
TM-740 ․ Operating Temperature and Humidity : 5°C ~ +40°C, <95% RH. ․ Storage Temperature and Humidity : -10 to 60°C, <70% RH. Electrical Specification: Velocity: Unit Range Resolution Accuracy 0.4~25 ±2﹪+0.2 Km/hr(kph) 1.5~90 ±2﹪+0.8 0.9~55 ±2﹪+0.4 Knots(kts) 0.8~48 ±2﹪+0.4 ft/min(fpm) 79~4921 ±2﹪+40... -
Page 7: Air Velocity Measures
TM-740 5. AIR VELOCITY MEASURES Fallow the arrows to measure velocity. As shown in figures. WARNING Please don’t touch the vanes by fingers or foreign body to avoid damage to the vanes. EN-7... -
Page 8: Operation
TM-740 6. Operation 6.1. Velocity Unit Button: Select the m/s Knots(kts) ft/min(fpm) Km/hr(kph) mph. 6.2. CAL/℃/℉ Button: Calibration of 10 m/s Prepare the 10m/s velocity. Press CAL button and POWER button more than 2 second the LCD will display CAL. -
Page 9: Data Hold Button
TM-740 6.5. Data Hold button: Freezes the reading present on the LCD screen at the moment the button is pressed. 6.6. Power Button: Press the ” ” button more than 2 second to power on the meter. 6.7. Auto Power:... -
Page 10: Instrument Description
TM-740 7. Instrument Description 1. Vane. 2. Display (LCD). 3. Velocity unit select button. 4. Calibration and ℃/℉ button. 5. Data hold button. 6. Maximun/Average/minimum button. 7. Power Button : ON/OFF. EN-10... -
Page 11: Battery Replacement
TM-720 Battery Replacement WARNING If the symbol ” ” appears on the LCD, please replace the battery immediately. 1. Remove the battery cover. 2. Replace the battery. 3. Install the battery cover. 12. END OF LIFE Caution : this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal. - Page 12 ALATUJI.COM E-mail: sales@alatuji.com http://www.alatuji.com...
