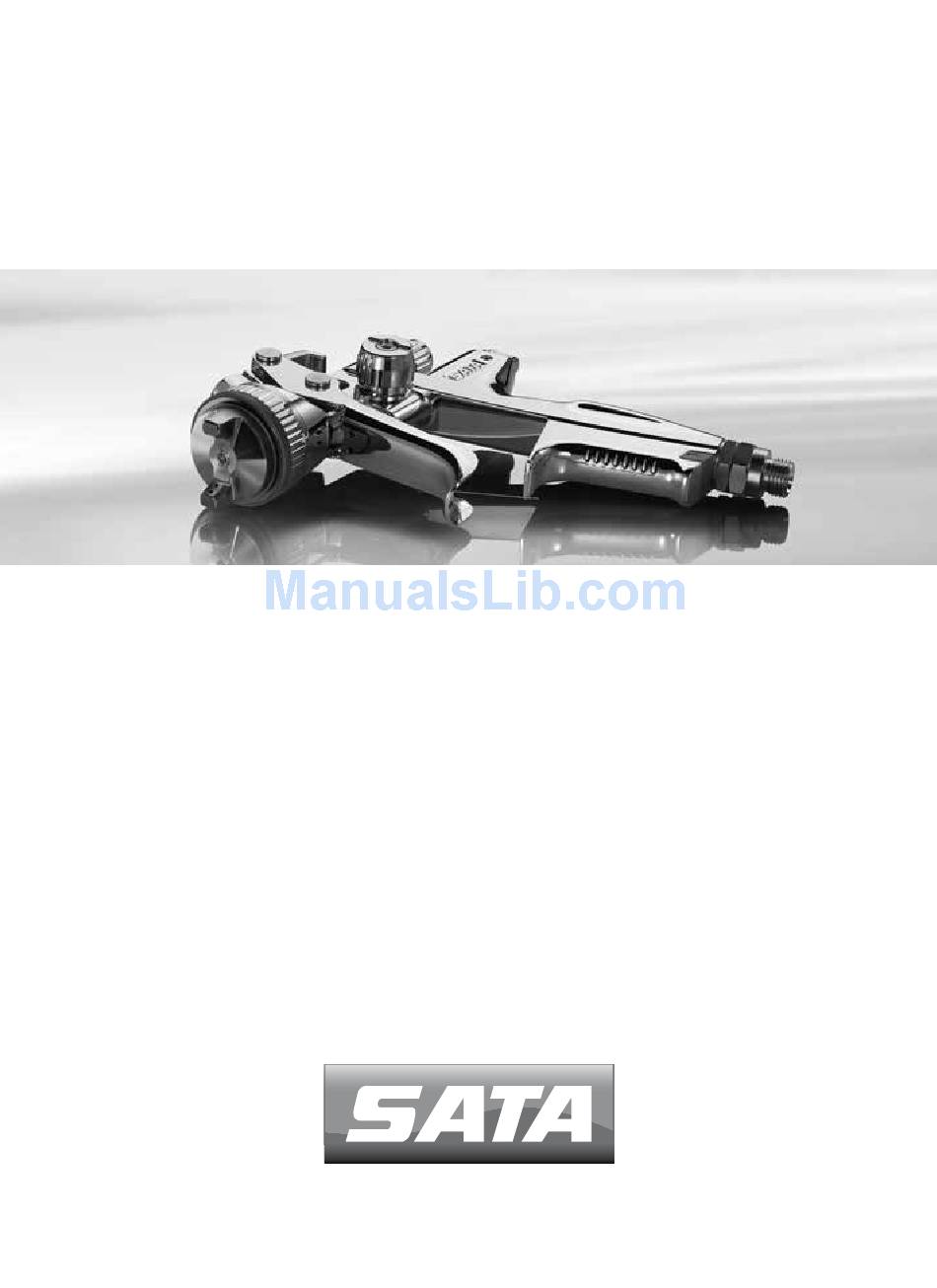

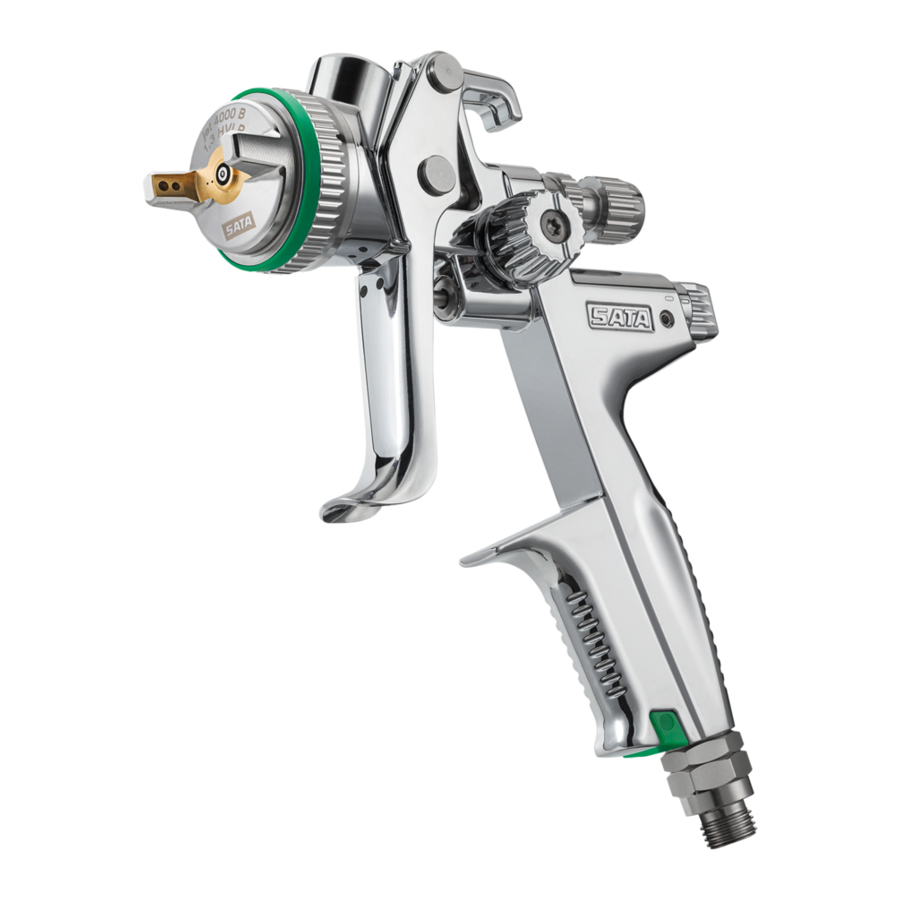

Page 1 SATAjet 4000 B Betriebsanleitung | Упътване за работа | 使用说明书 | Návod k použití Betjeningsvejledning | Kasutusjuhend | Operating Instructions | Instrucciones de servicio | Käyttöohje | Mode d'emploi | Οδηγίες λειτουργίας | Üzemeltetési utasítás | Istruzione d'uso Naudojimo instrukcija | Lietošanas instrukcija | Gebruikershandleiding | Bruksveiledning | Instrukcja obsługi | Instruções...
Page 2 [1-9] [1-8] [1-7] [1-6] [1-5] [1-4] [1-10] [1-3] [1-11] [1-12] [1-13] [1-14] [1-2] [1-15] [1-1] Design: [1-19] US D644,716S [1-18] [1-17] [1-16]...
Page 3 [2-3] [2-4] [2-6] [2-5] [2-2] [2-1] [2-12] [2-7] [2-8] [2-11] [2-10] [2-9] [2-13] [2-14]...
Page 4: Technical Data
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Content [Original Version: German] Symbols ........ 113 Cleaning of the Spray Gun ... 120 Technical Data ...... 113 Maintenance ......121 Scope of Delivery ....114 10. Troubleshooting ....124 Design of the Spray Gun ..115 11.
Page 5: Scope Of Delivery
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Air consumption at 2.0 bar spray gun inlet pressure 285 Nl/min HVLP 430 Nl/min Max. material temperature 50 °C Weight | Version Standard DIGITAL without cup 440 g 462 g with 0.6 l RPS cup...
Page 6: Design Of The Spray Gun
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Design of the Spray Gun [1] [1-1] Spray gun handle [1-11] Material flow control screw [1-2] Trigger [1-12] Material flow control counter [1-3] Nozzle set consisting of air cap, fluid tip (not visible), [1-13] Air micrometer (air flow paint needle (not visible) control knob) [1-4] Spray gun connection with...
Page 7: Personal Protection Equipment
• Never manipulate or technically modify the spray gun! • Use original SATA spare parts and accessories only! • Exclusively use spray gun cleaning machines recommended by SATA! Please observe the operating instructions! • Never spray materials containing acid, lye or benzine! • Alyways keep the spray gun away from ignition sources, such as open...
Page 8 Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) The painter is not exposed to vibrations while using the spray gun. Recoil forces are minimal. 6.4. Use In Explosive Areas Ex-sign Equipment cat- Device category Gas category Temperature level egory 6.4.1 General The spray gun is approved for the use / storage in explosive areas of Ex- Zone 1 and 2.
Page 9 10 bar, e.g. Art. No. 53090! Notice! The following requirements must be fulfilled: • Use a compressed air connection G 1/4 a or a suitable SATA connec- tion nipple. • Ensure minimum compressed air volume (air consumption) and pres- sure (recommended spray gun inlet pressure) according to chapter 2.
Page 10 Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) 7. Connect compressed air hose [2-14]. 7.1. Adjustment of the Spray Gun Inlet Pressure Notice! • Pull the trigger fully and adjust the spray gun inlet pressure (see chapter 2) following instructions of one of the followig sections ([3-1], [3-2], [3-3], [3-4] bis [3-5]), then release the trigger.
Page 11: Cleaning Of The Spray Gun
• Do not clean cover plate of the electronic pressure display with pointed, sharp or rough objects! • Drillings are to be cleaned with SATA cleaning brushes or SATA nozzle cleaning needles only. The use of other tools may cause damage or may affect the spray pattern.
Page 12: Maintenance
[7-1], [7-2], [7-3], [7-4], [7-5] and [7-6] Every SATA nozzle set consists of "paint needle" [7-1], "air cap" [7-2] and "fluid tip" [7-3] and has been hand-adjusted to provide a perfect spray pattern. Lubricate both paint needle [7-1] in the paint needle area (approx.
Page 13 Check sealing surfaces inside the spray gun [8-2] after disassembly, clean them, if required. Should the sealing surfaces be damaged, please contact your SATA dealer. Align new air distribution ring with the help of the marking [8-3], (pin must be located in the drilling) and press in with even force. Adjust material flow according to chapter 7.2 after...
Page 14 1. After disassembly, please check air piston rod [10-4] and clean it, if required. If damaged (e.g. if scratched or bent), replace it and grease with SATA high performance spray gun grease (Art. No. 48173) and insert. Please observe correct order of installation! 2.
Page 15: Troubleshooting
Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) • Make sure that spindle pick-up is free of material and paint residues, remove residues and clean with solvent, if necessary 2. Installation and positioning of the new spindle [a, b] • Screw in spindle [11-3] • Turn spindle nut [11-3] to position 6 o’clock using a wrench (size 6)
Page 16 Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Malfunction Cause Corrective Action Air bubbles appearing Loose air cap Tighten air cap [2-2] in the gravity flow cup by hand Gap between air cap Clean air circuit, ob- and fluid tip ("air cir- serve chapter 8 cuit") is clogged Nozzle set is clogged...
Page 17 Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) Malfunction Cause Corrective Action Corrosion on air cap Cleaning solution Cleaning, observe thread, inside material (water-based) remains chapter 8, get a passages (cup con- inside/on the spray replacement spray nection) or on spray gun for too long.
Page 18: After-Sale Service
SATA dealer. 13. Warranty / Liability The SATA General Conditions of Sale and Delivery and further contractual agreements, if applicable, as well as the valid legislation at the time apply. SATA cannot be held responsible especially in the following cases: • When the operating instructions are disregarded.
Page 19: Ec Declaration Of Conformity
Description 133959 Spring set consisting of 3x paint needle and 3x air piston springs each 133967 Pack of 3 locking screws for SATAjet 4000 B air micrometer (air flow control knob) 133991 Pack of 3 air piston heads 134098 Air connecting piece G 1/4 - M15 x 1...
Page 20 EC-Directive 94/9/EC, EC Directive 2014/34/EC in explosion hazard areas (ATEX), appendix X, B. Product description: ..............spray gun Type description: ......SATAjet 4000 B RP/HVLP / DIGITAL ATEX classification: ............II 2 G Ex ia IIC T4 Inspection facility: 0344 KEMA 05 ATEX 1090 IECEx KEM 09.0075X...
Page 21 Operating instructions SATAjet 4000 B RP/HVLP (DIGITAL) 70806 Kornwestheim, 18.01.2016 Albrecht Kruse President SATA GmbH & Co. KG...
