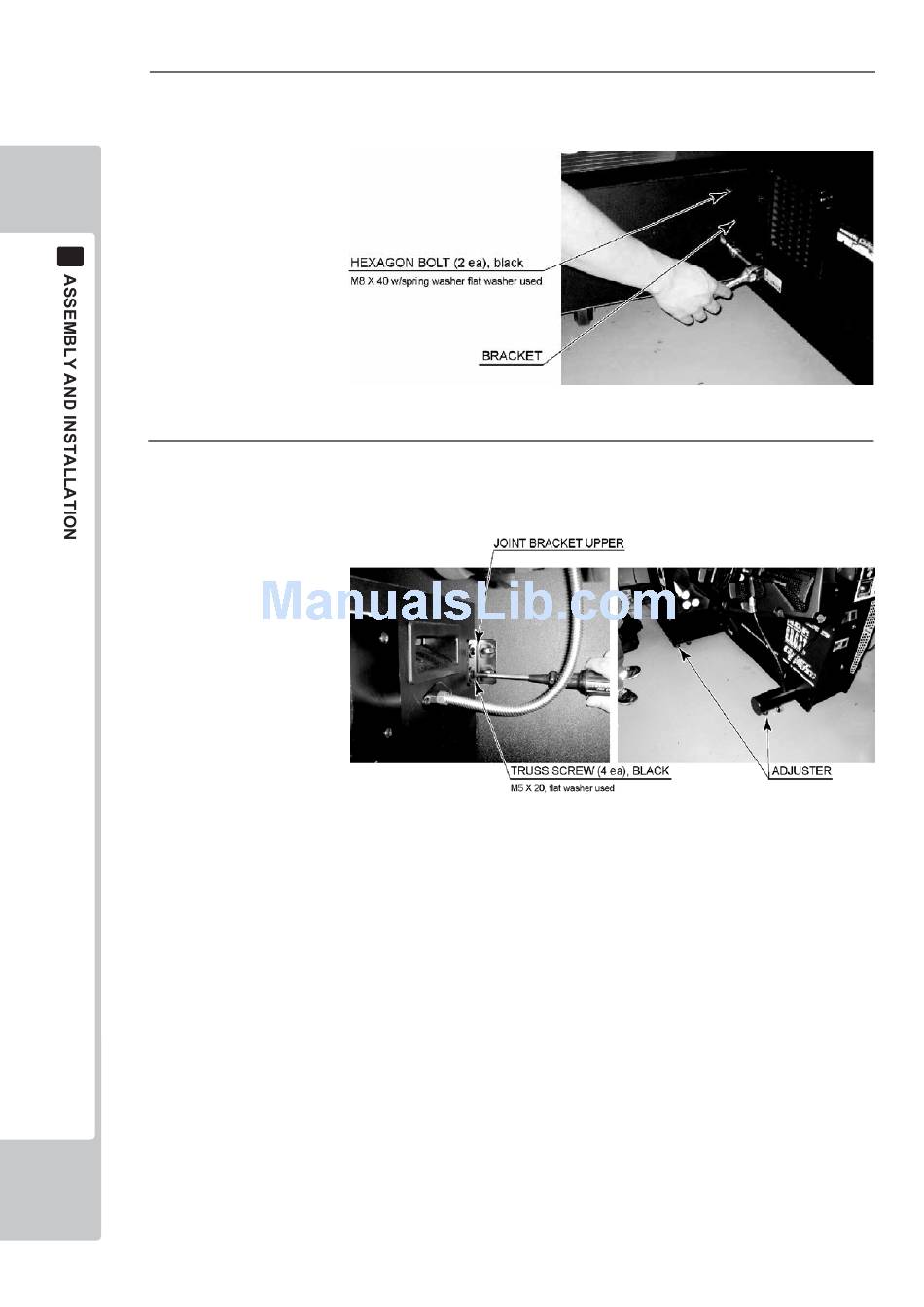

Carefully place the Gun cabi on to the support of the Display Cabi (be careful not to trap any wires). Fix the
two cabinets together by secureing the left and right brackets of the Gun Cabi to the Display cabi using 4x
M8 Hex Bolts Black.
6
10
Finally attach the joint brackets upper from the Gun Cabi to the Display Cabi using 4x truss screws on
each side of the joint. arrange these so that the vertical hole positions correspond to the holes in the Display
Cabi and the horizontal holes correspond to the Gun Cabi. If these is a slight gap between the two cabinets,
ensure that adjusters are equally level before tightening.
20
FIG. 6-1l
FIG. 6-1m
