3 x Set-up and installation
3.2

Set-up

Incorrect set-up and installation would render the manufacturer's guarantee void. If you have questions, please contact our Tech-
nical Customer Service.
Prerequisite
The installation site meets the applicable national requirements.
• Remove the packaging Dispose of the packing in an environmen-
tally-responsible manner.
• Transport the Hot water storage tank carefully, using the
handles provided.
• Install the Hot water storage tank at the installation site. Recom-
mended wall distance of 200 mm must be observed.
• When using an electric immersion heater element (booster heater)
(see Chapter 2.4.1 „Electric immersion heater elements"), it
must be screwed into the cover opening in the Hot water storage
tank (see Fig 3-7 and Fig 3-8, Item 18).
– If headroom is restricted, tilt the Hot water storage tank until
16
CAUTION!
• Only erect the ROTEX Sanicube / HybridCube if a ground load-bearing capacity of 1050 kg/m² plus
safety factor is guaranteed. The ground must be flat and level.
• Erection outdoors is only possible to a limited extent. The storage tank may not be exposed to continuous
direct sunlight, as the UV radiation and the effects of the weather will damage the plastic.
• The ROTEX Sanicube / HybridCube must be protected from frost.
• Make sure that the supply company does not provide corrosive domestic water.
– Appropriate water treatment may be required.
HYBRIDCUBE
Permitted lengths of the pipes between the HybridCube hot water storage tank and the hydraulic connections
on the HPSU heat pump (see Installation and operating instructions for the HPSU heat pump as well as for the
respective storage tank connect set "E-PAC").
the electric immersion heater element can be fitted without
damage.
Do not switch on the power supply for the electrical
immersion heater element until the ROTEX Sanicube
/ HybridCube is filled.

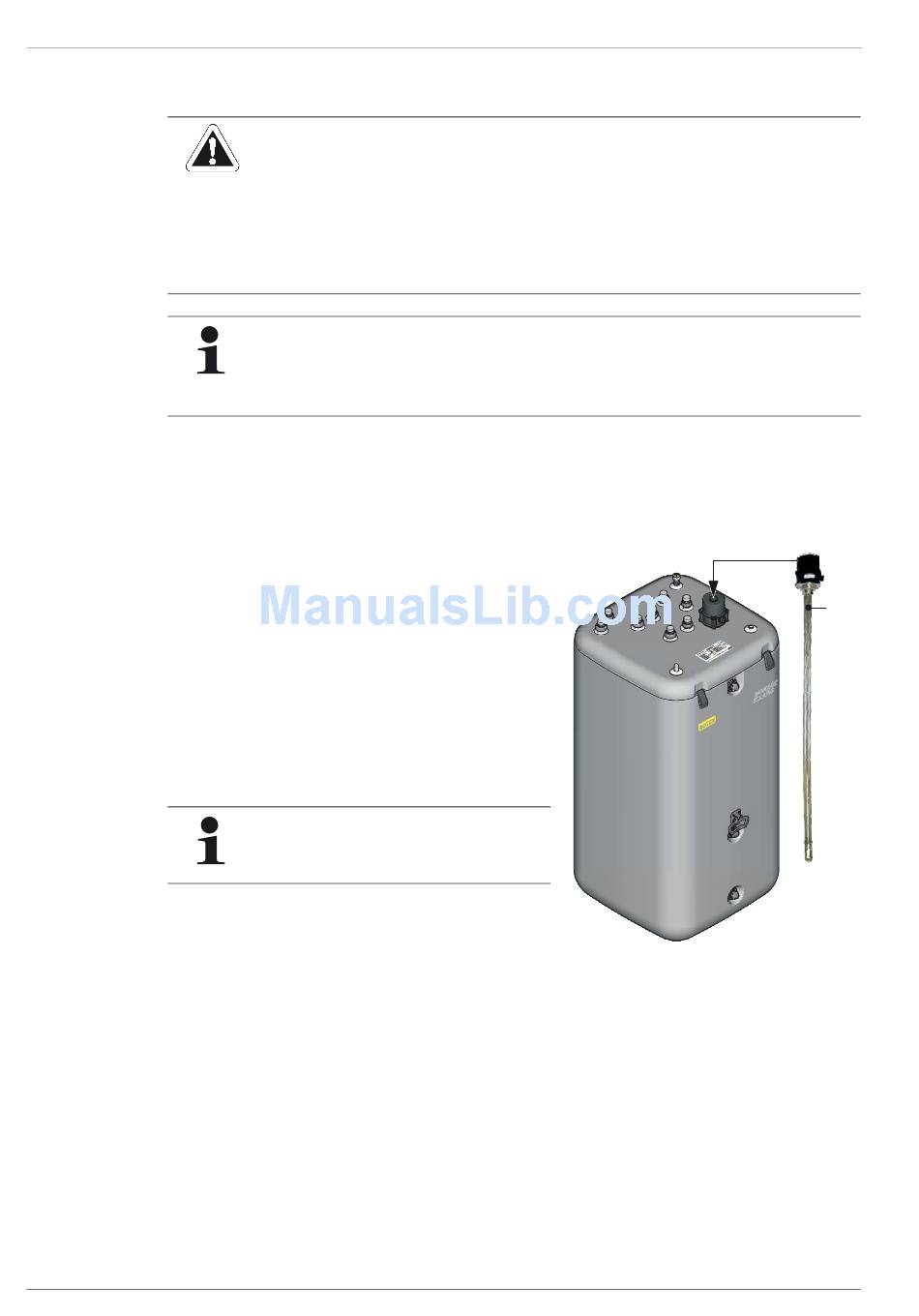

Fig. 3-7 Installation position electric immersion heater
element (shown on the Sanicube Solaris)
