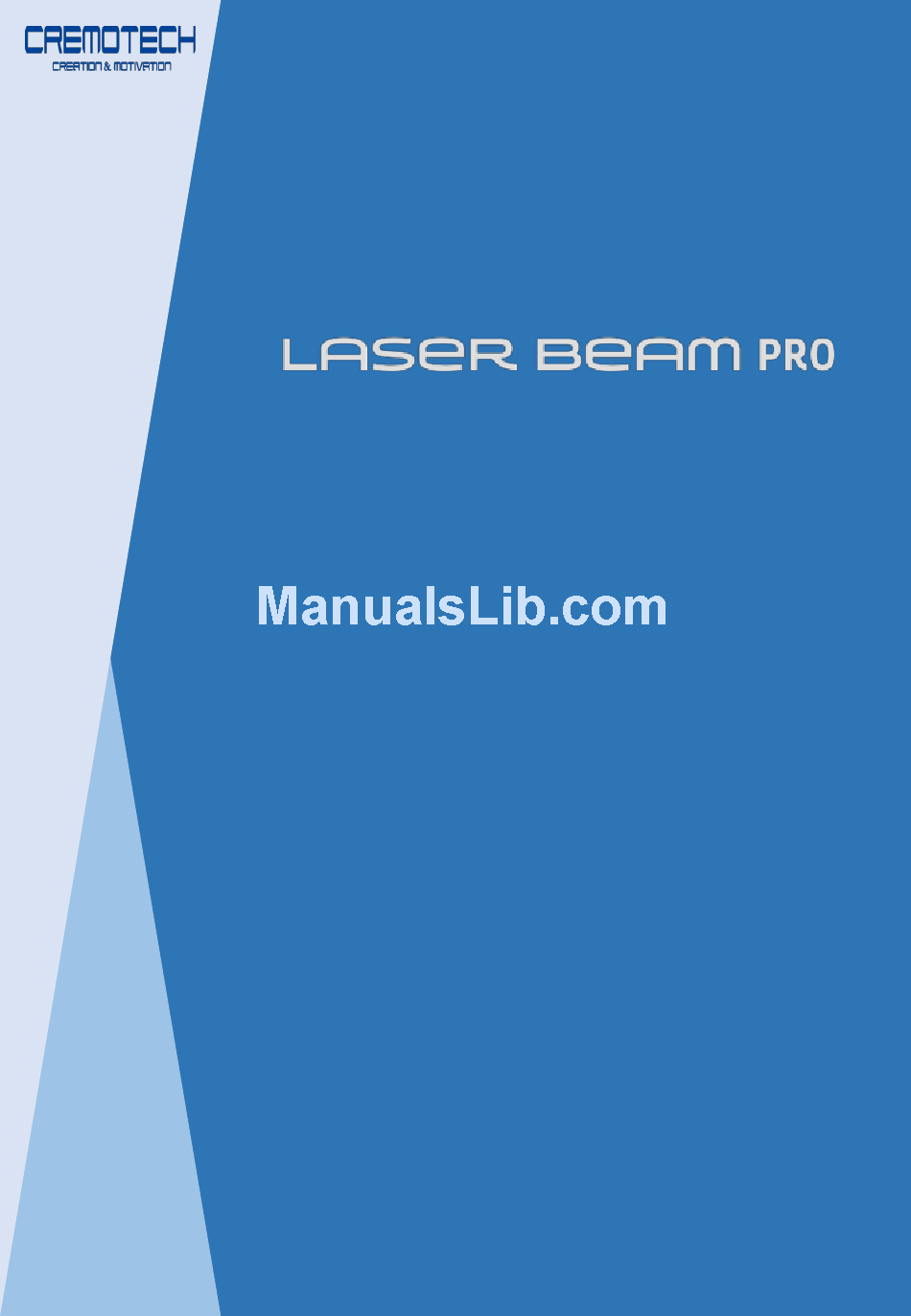

- Page 1 (CLASS 1 LASER PRODUCT) IEC 60825-1 Edition 3: 2014 User Guide 2017/08 Rev 1.8 www.cremotech.co.kr...
-
Page 2: Getting Started
- CLASS 1 LASER PRODUCT - Getting Started Supplied Items Beam Projector Power Adapter [Caution] Be sure to use a dedicated charger. Chargers with different specifications may not be fully charged or may cause malfunction. Basic Manual... -
Page 3: Parts And Controls
- CLASS 1 LASER PRODUCT - Getting Started Parts and Controls Keypad LED Indicator USB Port Lens micro HDMI Input (Supported up to HDMI 1.4) Speaker Power Socket Audio Jack USB Port micro SD Port (FAT32, NTFS supported) -
Page 4: Keypad Functions
- CLASS 1 LASER PRODUCT - Getting Started Keypad Functions Direction Keys Volume Up Power Enter/OK (Play/Pause) Right(Fast forward) Left(Rewind) Exit/Back Volume Down Mouse Pointer (Long-press) Down Power On Turn the projector on by pressing and holding the Power Key for four seconds until the LED indicator displays yellow. Power Off Press and hold the Power Key until the ‘Power Off’... -
Page 5: Connecting To The Internet
- CLASS 1 LASER PRODUCT - Getting Started Connecting to the Internet Please connect the projector to a Wi-Fi (AP : Access Point) to connect to the Internet. Select Settings. Select Wi-Fi to connect to an AP. Long press the OK button or the left mouse button on the registered Wi-Fi will erase network. -
Page 6: Media Player
- CLASS 1 LASER PRODUCT - Getting Started Media Player Select Apps > Media Player. You can play video files stored in the internal storage (Internal Memory), USB Memory, or micro SD card). [Caution] Video with AC3 audio codec is not sounded due to copyright problem. -
Page 7: Using File Manager
- CLASS 1 LASER PRODUCT - Getting Started Using File Manager (1/4) Select File Manager. ※ It is displayed in List only when Micro SD card or USB memory is recognized. You can manage the files stored in the projector's internal storage device (represented by Internal Memory), USB memory, and micro SD card. - Page 8 - CLASS 1 LASER PRODUCT - Getting Started Using File Manager (2/4) ① Home: There are Internal Memory, SD card, USB storage on Home screen. ② Level Up: button to go up one level folder ③ Multi: Button to select multiple folders or files ④...
- Page 9 - CLASS 1 LASER PRODUCT - Getting Started Using File Manager (3/4) ※ When you select Editor, window of red box appears when you press and hold file or folder with mouse. ① Copy : You can copy a folder or file. ②...
- Page 10 - CLASS 1 LASER PRODUCT - Getting Started Using File Manager (4/4) Copying a File to the Projector Long press or Multi on a file and select Editor> Copy. (Multi-file copying and pasting function can select multiple files only when Multi is selected.) You can save the file to the projector by selecting the desired path in the projector's internal storage (shown as Internal Memory) and selecting Editor >...
-
Page 11: Using Applications
- CLASS 1 LASER PRODUCT - Getting Started Using Applications You can download apps from Google Play You can use pre-installed apps – YouTube, Netflix, etc. – as well as apps you have downloaded. You can delete the app by touching and holding the selected app and clicking the OK button in the pop-up window. - Page 12 - CLASS 1 LASER PRODUCT - Getting Started Using Navigation bar [Caution] Must be connected by mouse. You can use various buttons conveniently. (It will run automatically in downloaded apps.) In the bottom part, drag the mouse up to move it up, and the navigation bar will appear as shown below.
-
Page 13: Using Mouse
- CLASS 1 LASER PRODUCT - Getting Started Using USB and Micro SD Cards You can connect USB memory and USB mouse to the USB port. Micro SD card (up to 128GB) can be used through the micro SD card slot. ※... -
Page 14: Using Bluetooth
- CLASS 1 LASER PRODUCT - Getting Started Using Bluetooth You can connect Bluetooth devices such as mice, keypads, speakers to the projector. In Settings > Bluetooth, you can select the Bluetooth device you want to connect. ※ Bluetooth mouse, keypad, and speaker are not included. -
Page 15: Connecting To Another Device
- CLASS 1 LASER PRODUCT - Connecting to Another Device Connecting to an iOS device (1/3) You can mirror your iOS device’s screen with the projector. Select iOS Mirroring. - Page 16 - CLASS 1 LASER PRODUCT - Connecting to Another Device Connecting to an iOS device (2/3) AP Mode The iOS device needs to be connected to the same Wi-Fi network. Hotspot Mode You can directly connect your iOS device to the projector via Hotspot mode.
- Page 17 - CLASS 1 LASER PRODUCT - Connecting to Another Device Connecting to an iOS device (3/3) 1. Hotspot mode: Select the projector name to connect 2. You can use the Airplay mirroring menu by Wi-Fi mode: Connect to a same Wi-Fi projector dragging the bottom of the iOS device screen up and lifting it.
-
Page 18: Connecting To An Android Device
- CLASS 1 LASER PRODUCT - Connecting to Another Device Connecting to an Android device (1/2) You can mirror your Android device’s screen to the projector. Your Android device needs to support Miracast. Select Android Mirroring. Select Miracast menu on your Android device, and connect to the projector device name. - Page 19 - CLASS 1 LASER PRODUCT - Connecting to Another Device Connecting to an Android device (2/2) ※ Android Mirroring Name by manufacturer - Samsung : Smart View, Screen Mirroring - LG : Miracast, Screen Sharing On your Android device, select and run by manufacturer's Android Mirroring Name.
- Page 20 - CLASS 1 LASER PRODUCT - Connecting to Another Device Connecting to a PC via HDMI micro HDMI port Connect micro HDMI port and your PC with an HDMI cable. * It is highly recommended to use a shielded HDMI cable. * Up to HDMI Ver.
-
Page 21: Keystone Adjustment
- CLASS 1 LASER PRODUCT - Settings Keystone Adjustment You can adjust Keystone in Settings > Keystone. Select a display shape and press the OK button to adjust the Keystone. - Page 22 - CLASS 1 LASER PRODUCT - Settings Brightness Brightness can be adjusted in three steps by selecting Settings> Brightness. Use Left/Right key button to select your preferred brightness.
-
Page 23: Language And Keyboard
- CLASS 1 LASER PRODUCT - Settings Language & Keyboard You can change the language and keyboard in Settings> Languages & Keyboard. Select the language you want to change and press the OK button to change it. - Page 24 - CLASS 1 LASER PRODUCT - Settings Accounts You can manage your account from Settings> Accounts. You can delete an account by selecting it.
- Page 25 - CLASS 1 LASER PRODUCT - Settings Auto Shut-Off Timer You can set auto shut-off timer in Settings > About Device > Auto Shut- Off Timer. Use Left/Right key button to choose between 5 min, 10 min, 20 min, or none.
-
Page 26: Remote App
- CLASS 1 LASER PRODUCT - Settings Remote App (1/2) Download the remote app from Google Play or the App Store and install it on your mobile device. (Search term: LASER BEAM PRO or CREMOTECH) Connect the remote control app to the projector and use it with the remote control. - Page 27 - CLASS 1 LASER PRODUCT - Settings Remote App (2/2) On the projector, change to Settings> Bluetooth> "Bluetooth On". Execute the application and click on the device name of the searched projector (Device ID) and connect. Volume, Keystone, Keyboard Menu, Home, Back, Disconnected Scroll Bar Mouse Mouse left click, right click...
- Page 28 - CLASS 1 LASER PRODUCT - Settings Auto Software Update With the latest software upgrade, you can use the product in a stable environment. The projector must be connected to the Internet. The Firmware Update pop-up window only appears on the Home screen. When the above pop-up window appears, click OK to proceed with the update.
-
Page 29: Manual Software Update
- CLASS 1 LASER PRODUCT - Settings Manual Software Update (1/3) You can upgrade the projector to the most up-to-date software in order to use it in a more stable environment. OTA Update Your projector must be connected to the Internet. Go to Settings >... - Page 30 - CLASS 1 LASER PRODUCT - Settings Manual Software Update (2/3) Updating using USB (or SD card) (1/2) FAT32 USB storage device and Update.zip file are required. Please go to http://www.cremotech.co.kr/manual/ and select download image to download Update.zip file. 1. Copy the Update.zip file to the FAT32 USB and insert it into the C200 USB port.
- Page 31 - CLASS 1 LASER PRODUCT - Settings Manual Software Update (3/3) Updating using USB (or SD card) (2/2) 2. Firmware Updating window will be 3. Checking package → Auto Reboot → displayed when waiting for a while even if Update progress (Android robot image) File Manager is displayed.
- Page 32 - CLASS 1 LASER PRODUCT - Settings How to check and format USB Verifying and Formatting USB After USB connection, right click on the USB device in My PC (My Computer), and then click Properties to check FAT 32 in the file system. After USB connection, right click on the USB device in my PC (My Computer) and select format.
-
Page 33: Led Indicator
- CLASS 1 LASER PRODUCT - Settings Reset You can reset the projector when it doesn’t seem to be working properly. You can find the reset hole at the bottom-right on the back of the projector. Use a clip or pin to press the reset button inside and reset the projector. -
Page 34: Technical Info
- CLASS 1 LASER PRODUCT - Technical Info. Specification Specifications Dimensions 149 x 76.2 x 19.4mm Weight 260g Battery Capacity 3.7V 6200 mAh Charger 5V 4A Processor Quad Core Internal Storage Expandable Storage Micro SD (up to 128GB) Android Lollipop Speaker 1W Mono Speaker Wi-Fi... - Page 35 - CLASS 1 LASER PRODUCT - Safety Warning and Caution We sincerely appreciate your purchase of our product. Please read all the safety information prior to using this product. Warning Failure to adhere to these instructions may result in fire, injury, or damage to the product or other property.
- Page 36 - CLASS 1 LASER PRODUCT - This product is designed to be operated and stored in ambient temperatures ℃ and ℃. between 10 This product can be damaged and battery life shortened if stored or operated outside of this temperature range. Please be especially careful when the product is ℃...
- Page 37 - CLASS 1 LASER PRODUCT - Do not touch the lens directly with the hands, fingers or skin. A dirty or smudged lens leads to lower image quality. When cleaning the product, wipe slowly with a soft, dry cloth. Ensure the charger is disconnected from the product and that the power is off. Do not use solvents, alcohol or thinner to wipe the product.
