Setup
The MD1 can be quite useful on stage or in the studio for connecting unbal-
anced audio sources or instruments with pickups. By utilizing the MD1, the
signal can be sent cleanly for long distances while benefiting from the low
noise and common mode rejection provided by the balanced low-level output.

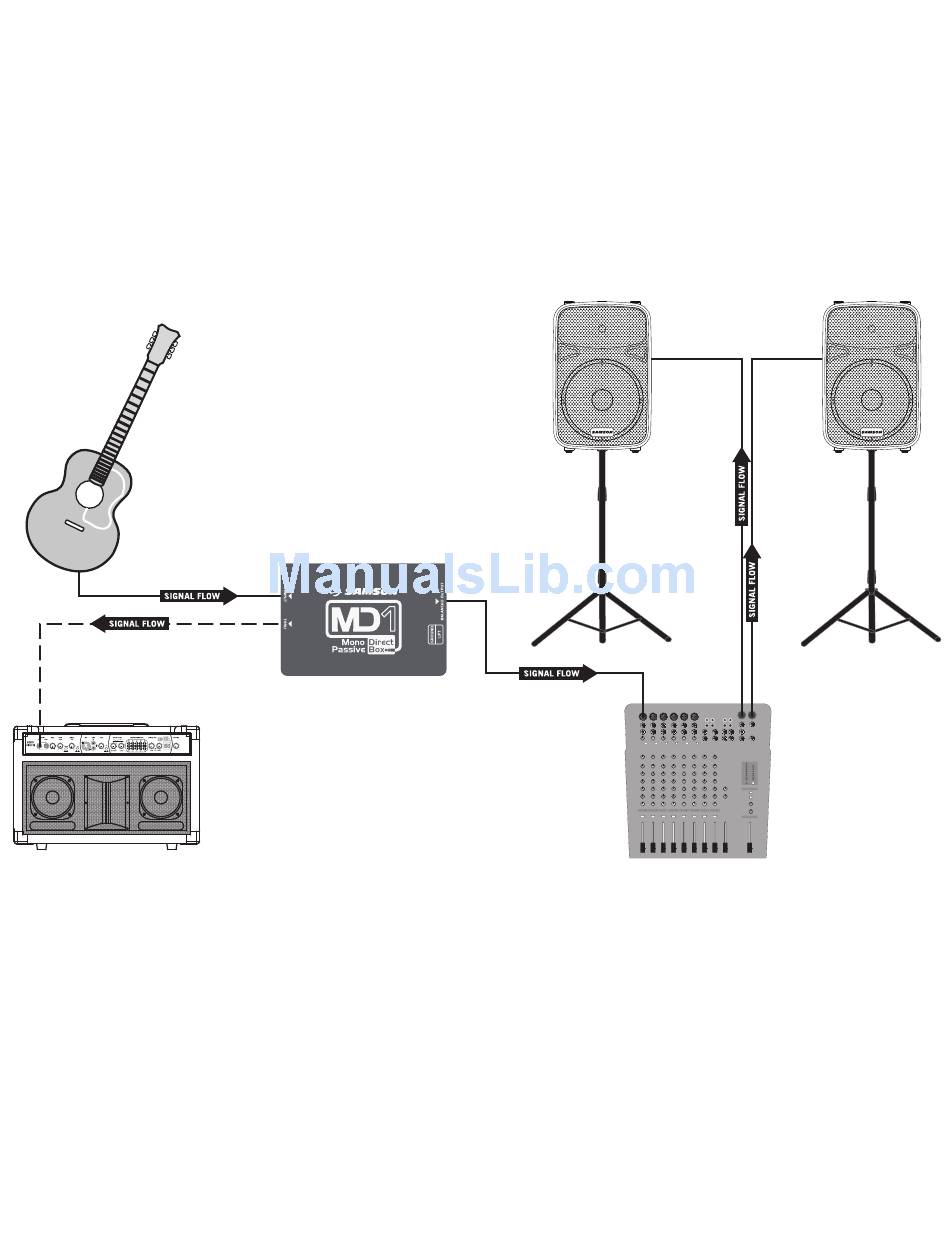

The diagram following shows a typical hook-up for an acoustic guitar connect-
ed to an acoustic guitar amplifier and a PA system.
00-09 HALL
• Set the volume controls of your audio system to the off position.
• Connect your instrument or other audio source to the MD1 INPUT jack.
• Connect the THRU output to a monitor speaker or sub-mixer.
• Connect the BALANCED OUTPUT to the microphone input of a mixer or
other audio device.
• Raise the level of the audio system to the appropriate level.
• If you hear a hum or buzz set the GROUND LIFT switch to the LIFT
position.
