PQS-100 Plus User Manual
This product complies with European Union EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EC)
© German Physiks 2009
Revision c
th
Released 16
December, 2009
We reserve the right to change the information contained in this manual without notice. For the
latest version please see our web site at www.german-physiks.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for German Physiks PQS-100 Plus
Summary of Contents for German Physiks PQS-100 Plus
- Page 1 PQS-100 Plus User Manual This product complies with European Union EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EC) © German Physiks 2009 Revision c Released 16 December, 2009 We reserve the right to change the information contained in this manual without notice. For the...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. INTRODUCTION..........................3 2. UNPACKING YOUR LOUDSPEAKERS ..................3 3. THE PRINCIPLE FEATURES OF THE PQS-100 PLUS..............4 4. ASSEMBLING THE LOUDSPEAKER AND STANDS ..............4 5. LOUDSPEAKER PLACEMENT AND SET-UP .................6 Adjusting the Spikes........................6 Listening Room Layout........................7 Placement...........................8 Distance from the Front Wall ....................8 Distance from the Side Wall ....................8... -
Page 3: Introduction

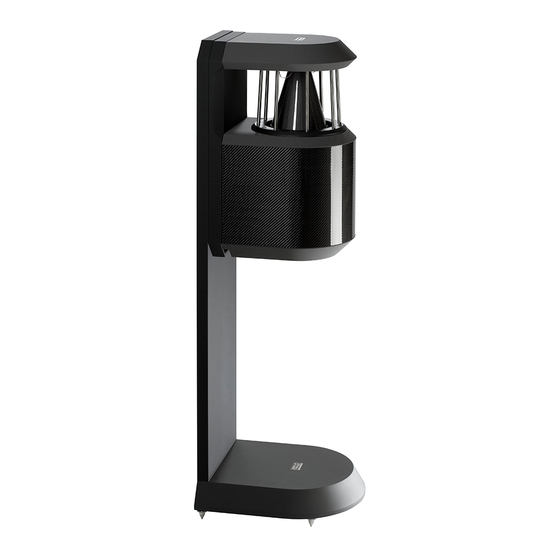

Thank you for selecting the German Physiks PQS-100 Plus loudspeakers for your audio system. The PQS-100 Plus is a 2 way design that uses a single DDD driver coupled with a downward firing sub- woofer. It is intended for use in both 2 channel and high-end home theatre systems. It is designed to be mounted on the supplied PQS-Plus stands. -
Page 4: The Principle Features Of The Pqs-100 Plus
Over-tightening the screws may result in damage to the stand which will not be covered by the warranty. 1. Place one of the stand bases on the floor with the German Physiks logo facing upwards as shown in figure 2. - Page 5 5. Pick up a PQS-100 Plus by the upper plate and holding it with the rear face away from you, fit the key- hole plate in the rear face of the loudspeaker figure 4, over the loudspeaker suspension screw you have just fitted –...
-
Page 6: Loudspeaker Placement And Set-Up
NOTE: Make sure that the key-hole plate is properly engaged with the suspension screw before you let go of the loudspeaker. 6. Insert a M5 x 40mm counter sunk head screw into each of the four loudspeaker locking screw holes on the rear face of the stand back panel, D, figure 3ii. -
Page 7: Listening Room Layout
Figure 6. Spike and Washer The easiest way to adjust the spikes is to remove the loudspeaker from the stand and place it somewhere it cannot be damaged. Set the stands in their initial position in the listening room. Please refer to figure 7 for guidance on positioning. -
Page 8: Placement
3. Avoid placing the loudspeakers similar distances from the side and front walls, as this may lead to an uneven bass response 4. Avoid having any hard surfaces between your listening position and the loudspeakers. This will generate additional reflections that may degrade the stereo image. For this reason, where ever possible, equipment should be located at the side of the room. - Page 9 Distance = “d” Minimum: Minimum: 0.5 metre/1.6 feet 0.5 metre/1.6 feet Listening Position Do not have the listening position closer than 1.2m from the rear wall Figure 7. Listening Room Arrangement...
-
Page 10: Connecting Your Loudspeakers
Do not use a knife or any other tool. 8. LOUDSPEAKER BREAK IN Like all audiophile equipment, German Physiks loudspeakers require a break in period from new before they reach their optimum level of performance. Initially the sound may seem harsh. Please do not be concerned. -
Page 11: Warranty
German Physiks to decide the best way to affect a repair. If they are unable to assist you, please contact German Physiks by phone on + 49 61 09 50 29 823, by fax on + 49 61 09 50 29 826, or by email at service@german-physiks.com. -
Page 12: How To Contact Us
For items returned to the factory under warranty during the first year, German Physiks will pay for the shipping charges both ways. A shipping company approved by German Physiks must be used and the items will be returned to the customer using the same carrier, or an equivalent service. -
Page 13: Pqs-100 Plus Specifications
12. PQS-100 PLUS SPECIFICATIONS Impedance 5.6 ohms at 45Hz Frequency Response 45Hz – 24,000Hz Power Handling Nominal 200W Short term 320W Amplification required Minimum 70W/4 ohms Crossover frequency 120Hz Crossover slopes DDD section 6dB/octave electronic & 18dB/octave acoustic 12dB/octave electronic & 18dB/octave acoustic... -
Page 14: Warranty Registration
7 days of purchase and return it by post together with a copy of the receipt of purchase to: DDD-Manufactur GmbH Gutenbergstraße 4 D-63477 Maintal GERMANY Name Address Country Zip/Post Code Model PQS-100 Plus Serial Number See label under speaker Finish Date of Purchase Where Purchased Address Country...
