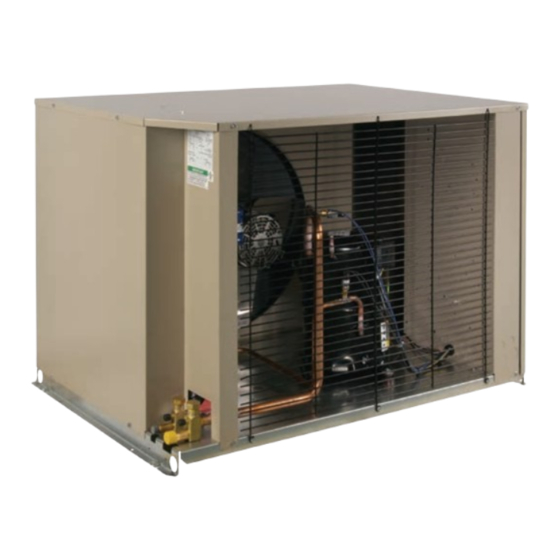

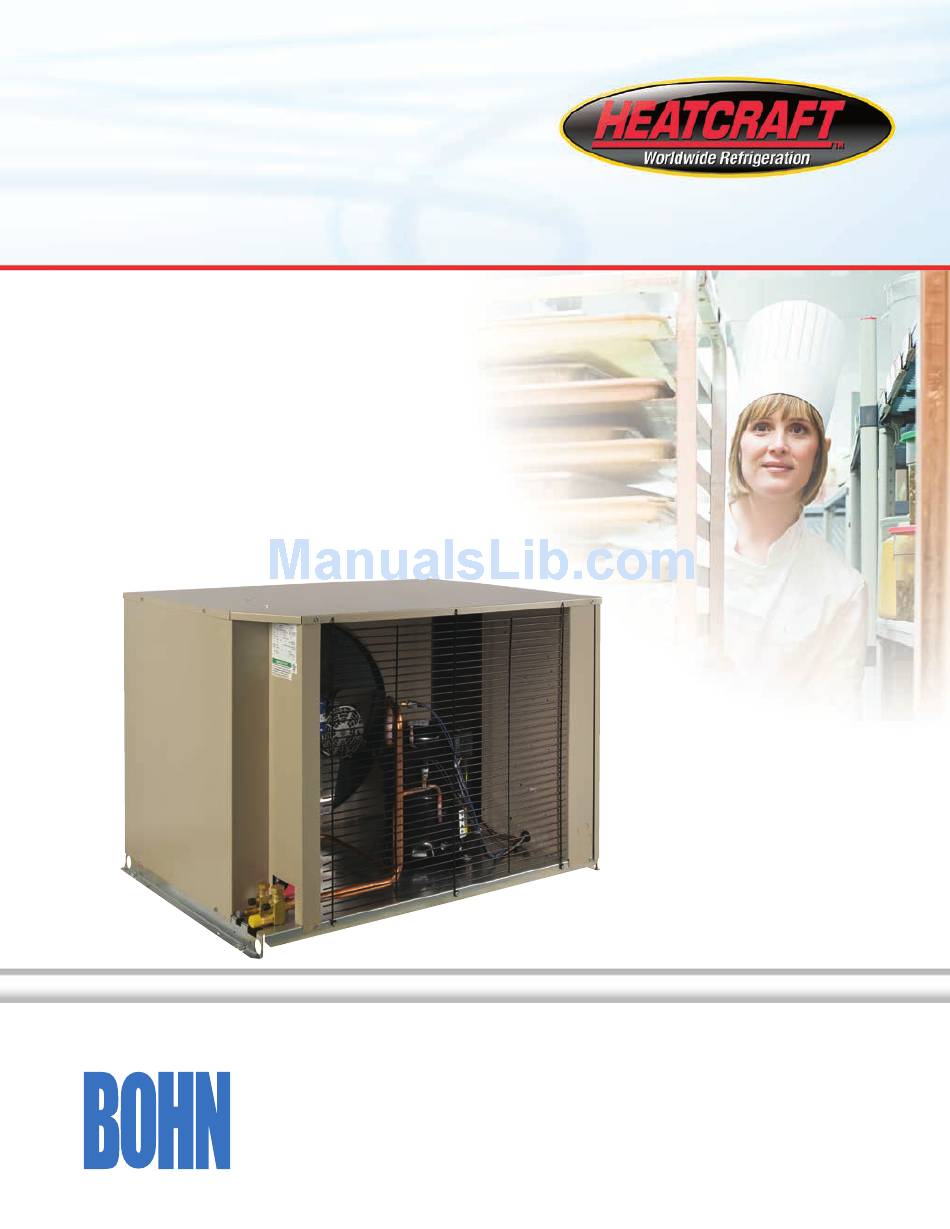

- Page 1 BN-HTSTB JUNE 2017 Replaces BN-HTSTB MAR 2017 1/2-6 HP Air-cooled Condensing Unit s Technical Guide Models BZ...
-
Page 2: Table Of Contents
Table of Contents Nomenclature ........................................2 Features & Benefits ......................................3 Options..........................................4 Hermetic Compressor Models ..................................5-11 Performance Data ......................................5-9 High Temperature (R-404A/507) ................................5 Extended Temperature (R-404A/507) ..............................6 Low Temperature (R-404A/507) ................................7 Extended Temperature (R-407C) ................................8 Extended Temperature (R-448A/R-449A)...............................9 Unit Specifications and AWEF ratings................................10 Electrical Data .......................................11 Scroll Compressor Models ................................... -
Page 3: Features & Benefits
F eatures & Benefit s Cabinet & Construction ■ Microchannel coil technology standard on most units ■ Painted steel cabinets for superior strength and corrosion protection ■ Heavy duty steel raised base with 1-1/2” legs ■ Fan guards and wiring conduit on indoor models Serviceability ■... -
Page 4: Options
1/2 - 6 HP Condensing Unit: Options Electrical Options Option Outdoor Indoor Stock Adjustable low pressure control for medium temp. comp. Option Option Air or electric defrost timer only Option Option 1/2-3 HP low temp. Beacon II™ Option Crankcase heater Standard Standard Dual pressure control (not available on Beacon II™) -
Page 5: Hermetic Compressor Models
PERFORMANCE DATA: HERMETIC COMPRESSOR MODELS High Temperature R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 40°F 35°F BH*005H6 RST45C1E 8,910 8,150 † BH*009H6 RST64C1E 12,520 11,570 † BH*010H6 † RST70C1E 13,720 12,610 BH*015H6 CS10K6E 21,400 19,460 BH*025H6 CS14K6E 26,320 24,270 BH*032H6... -
Page 6: Extended Temperature R-404A/507
PERFORMANCE DATA: HERMETIC COMPRESSOR MODELS Extended Temperature R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 30°F 25°F 20°F 0°F -10°F -20°F -25°F BH*005X6 RST45C1E 6,850 6,270 5,710 3,690 2,810 1,980 1,550 † BH*008X6 RST55C1E 8,130 7,450 6,790 4,430 3,490 2,710 2,400... -
Page 7: Low Temperature R-404A/507
PERFORMANCE DATA: HERMETIC COMPRESSOR MODELS Low Temperature R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 0°F -5°F -10°F -20°F -25°F -30°F BH*011L6 CF04K6E 7,030 6,240 5,370 3,850 3,330 2,630 BH*014L6 CF06K6E 10,500 9,380 7,830 6,090 4,890 4,080 BH*019L6 CF06K6E 12,100 10,180... -
Page 8: Extended Temperature (R-407C)
PERFORMANCE DATA: HERMETIC COMPRESSOR MODELS Extended Temperature Models R-407C Capacity BTUH @ 90°F Ambient by SST Model Compressor 40°F 30°F 25°F 20°F 10°F 0°F BH*005X6 RST45C1E 7,310 5,970 7,310 4,760 3,730 2,880 BH*008X6 RST55C1E 8,420 6,960 6,260 5,610 4,440 3,420 BH*009X6 RST64C1E 10,310... -
Page 9: Extended Temperature (R-448A/R-449A)
PERFORMANCE DATA: HERMETIC COMPRESSOR MODELS Extended Temperature Models R-448A/R-449A Capacity BTUH @ 90°F Ambient by SST Model Compressor 30°F 25°F 20°F 10°F 0°F -10°F BH*005X6 RST45C1E 6130 5520 4920 3860 2970 2240 BH*008X6 RST55C1E 7380 6660 5960 4700 3650 2860 BH*009X6 RST64C1E 8670... -
Page 10: Unit Specifications And Awef Ratings
UNIT SPECIFICATIONS: HERMETIC COMPRESSOR MODELS Connections (ID) Receiver Dimensions Net. Wt. Sound Model Fig. ++ Compressor 90% Full Fan(s) Lbs. Data dBA † Liquid Suction D (In.) W (In.) H (In.) Lbs. BH*005X6 RST45C1E 28-1/4 23-3/4 17-1/2 BH*008X6 RST55C1E 28-1/4 23-3/4 17-1/2 BH*009X6... -
Page 11: Electrical Data
ELECTRICAL DATA: HERMETIC COMPRESSOR MODELS Power Supply Compressor Fan Motor MOPD Evap. Defrost Model Part Number Heater Number Volts † Qty. Elec. Elec. Amps Amps BH*005X6B RST45C1E-CAV 208-230 26.5 1/15 15.0 20.0 BH*008X6B RST55C1E-CAV 208-230 33.7 1/15 15.0 20.0 BH*009X6B RST64C1E-CAV 208-230 43.0... -
Page 12: Scroll Compressor Models
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Medium Temperature Models R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 40°F 30°F 25°F 20°F 10°F 0°F -10°F -20°F -25°F BZ*010M6 ZS09KAE 17,730 14,770 13,420 12,160 9,920 8,040 6,460 5,130 4,540 BZ*015M6 ZS13KAE 22,840 19,190 17,490... -
Page 13: Medium Temperature (R-407A)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Medium Temperature Models R-407A Capacity BTUH @ 90°F Ambient by SST Model Compressor 40°F 30°F 25°F 20°F 10°F 0°F -10°F -20°F -25°F BZ*010M6 ZS09KAE 15,350 12,820 11,710 10,690 8,870 7,290 5,850 4,430 3,690 BZ*015M6 ZS13KAE 19,540 16,560 15,170... -
Page 14: Medium Temperature (R-407C)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Medium Temperature Models R-407C Capacity BTUH @ 90°F Ambient by SST Model Compressor 40°F 30°F 25°F 20°F 10°F 0°F -10°F -20°F -25°F BZ*010M6 ZS09KAE 13,910 11,640 10,590 9,550 7,610 5,780 4,010 2,210 – BZ*015M6 ZS13KAE 18,110 15,260 13,910... -
Page 15: Medium Temperature (R-448A/R-449A)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Medium Temperature Models R-448A/R-449A Capacity BTUH @ 90°F Ambient by SST Model Compressor 40°F 30°F 25°F 20°F 10°F 0°F -10°F -20°F -25°F BZ*010M6 ZS09KAE 14,190 11,580 10,460 9,460 7,770 6,420 5,280 4,180 3,580 BZ*015M6 ZS13KAE 18,230 15,050 13,680... -
Page 16: Low Temperature (R-404A/507)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Low Temperature Models R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 0°F -5°F -10°F -15°F -20°F -25°F -30°F -35°F -40°F BZ*020L6 ZF06K4E 11,670 10,620 9,640 8,710 7,840 7,020 6,240 5,500 4,790 BZ*025L6 ZF08K4E 14,330 13,090 11,880... -
Page 17: Low Temperature (R-407A)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Low Temperature Models R-407A/R-407F Capacity BTUH @ 90°F Ambient by SST Model Compressor 0°F -5°F -10°F -15°F -20°F -25°F -30°F -35°F -40°F BZ*020L6 ZF06K4E 10,710 9,700 8,730 7,800 6,910 6,100 5,340 4,640 4,000 BZ*025L6 ZF08K4E 12,760 11,590 10,450... -
Page 18: Low Temperature (R-407C)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Low Temperature Models R-407C Capacity BTUH @ 90°F Ambient by SST Model Compressor 0°F -5°F -10°F -15°F -20°F -25°F -30°F -35°F -40°F BZ*020L6 ZF06K4E 9,510 8,510 7,590 6,740 5,970 5,260 4,620 4,020 3,470 BZ*030L6 ZF09K4E 12,420 11,340 10,260... -
Page 19: Low Temperature (R-448A/R-449A)
PERFORMANCE DATA: SCROLL COMPRESSOR MODELS Low Temperature Models R-448A/R-449A Capacity BTUH @ 90°F Ambient by SST Model Compressor 0°F -5°F -10°F -15°F -20°F -25°F -30°F -35°F -40°F BZ*020L6 ZF06K4E 10,270 9,270 8,340 7,470 6,670 5,920 5,230 4,580 3,960 BZ*025L6 ZF08K4E 12,620 11,410 10,270... -
Page 20: Unit Specifications And Awef Ratings
UNIT SPECIFICATIONS: SCROLL COMPRESSOR MODELS Receiver Connections (ID) Dimensions Net. Wt. Sound Model Fig. ++ Compressor 90% Full Fan(s) Lbs. Data dBA † Liquid Suction D (In.) W (In.) H (In.) Lbs. BZ*010M6 ZS09KAE 28-1/4 37-3/4 19-3/4 BZ*015M6 ZS13KAE 28-1/4 37-3/4 19-3/4 BZ*020M6... -
Page 21: Electrical Data
ELECTRICAL DATA: SCROLL COMPRESSOR MODELS Power Supply Compressor Fan Motor MOPD Evap. Defrost Model Part Number Heater Number Volts † Qty. Elec. Elec. Amps Amps BZ*010M6B ZS09KAE-PFV 208-230 40.3 1/15 12.0 BZ*010M6C ZS09KAE-TF5 208-230 55.4 1/15 BZ*010M6D ZS09KAE-TFD 28.0 1/15 BZ*015M6B ZS13KAE-PFV 208-230... -
Page 22: Semi-Hermetic Compressor Models
PERFORMANCE DATA: SEMI-HERMETIC COMPRESSOR MODELS Medium Temperature Models R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 25°F 20°F 15°F 10°F 5°F 0°F -5°F BS*010M6 KAR-010E 9,680 8,730 7,930 7,260 6,500 5,890 5,000 BS*020M6 KAK-020E 16,890 15,110 13,590 12,260 11,070 9,940 8,690... -
Page 23: Low Temperature (R-404A/507)
PERFORMANCE DATA: SEMI-HERMETIC COMPRESSOR MODELS Low Temperature Models R-404A/507 Capacity BTUH @ 90°F Ambient by SST Model Compressor 0°F -5°F -10°F -20°F -25°F -30°F -40°F BS*005L6 KAN-005E 3,530 3,150 2,760 2,050 1,720 1,420 BS*008L6 KAM-007E 6,010 5,360 4,730 3,570 3,050 2,580 1,820 BS*010L6... -
Page 24: Unit Specifications And Awef Ratings
UNIT SPECIFICATIONS: SEMI-HERMETIC COMPRESSOR MODELS Receiver Connections (ID) Dimensions Net. Wt. Sound Model Fig. ++ Compressor 90% Full Fan(s) Lbs. Data dBA † Liquid Suction D (In.) W (In.) H (In.) Lbs. BS*010M6 KAR-010E 28-1/4 23-3/4 17-1/4 BS*020M6 KAK-020E 28-1/4 37-3/4 17-1/4 BS*021M6... -
Page 25: Electrical Data
ELECTRICAL DATA: SEMI-HERMETIC COMPRESSOR MODELS Power Supply Compressor Fan Motor MOPD Evap. Defrost Model Part Number Heater Number Volts † Qty. Elec. Elec. Amps Amps BS*010M6B KARB-010E-CAV 208-230 40.0 1/15 BS*010M6C KARA-010E-TAC 208-230 27.0 1/15 BS*020M6B KAKB-021E-CAV 208-230 55.0 1/15 BS*020M6C KAKA-020E-TAC 208-230... -
Page 26: Replacement Parts By Interlink
And every product is built to ensure the same high performance standards with which all Heatcraft Refrigeration Products brands are built — backed www.interlinkparts.com by a dedicated team to serve every customer need, delivering at the best lead times 800.686.7278... -
Page 27: Dimensional Drawings
Dimensional Drawings OUTDOOR OUTDOOR LEFT VIEW FRONT VIEW 1/2, 3/4 AND 1HP 23-3/4 28-1/4 4-9/16 4-1/16 1-3/4 17-1/4 FLOW LIQUID 1-7/8 SUCTION 2-3/8 2-9/16 2-3/4 21-1/8 CL 1-1/2 AND 2HP 37-3/4 28-1/4 4-1/16 4-9/16 FLOW 1-3/4 17-1/4 1-7/8 LIQUID SUCTION 2-3/8 2-9/16 2-3/4... - Page 28 Dimensional Drawings INDOOR INDOOR FRONT VIEW POWER CONNECTIONS: (1) 7/8 & (1) 1-1/8 4-1/16 1-7/8 24-1/4 CL 25-1/8 POWER CONNECTIONS: (1) 7/8 & (1) 1-1/8 4-1/16 1-7/8 38-1/4 CL 39-1/8 POWER CONNECTIONS: (2) 7/8, (1) 1-3/8 & (1) 1-3/4 5-1/4 3-13/16 4-15/16 3-1/4 1-15/16...
- Page 29 Notes...
- Page 30 Notes...
- Page 31 Notes...
- Page 32 2175 West Park Place Blvd. · Stone Mountain, GA 30087 Phone: 800.537.7775 · Fax: 770.465.5900 heatcraftrpd.com Since product improvement is a continuing effort, we reserve the right to make changes in specifications without notice. BN-HTSTB June 2017 | Version 001 ©2017 Heatcraft Refrigeration Products LLC...
