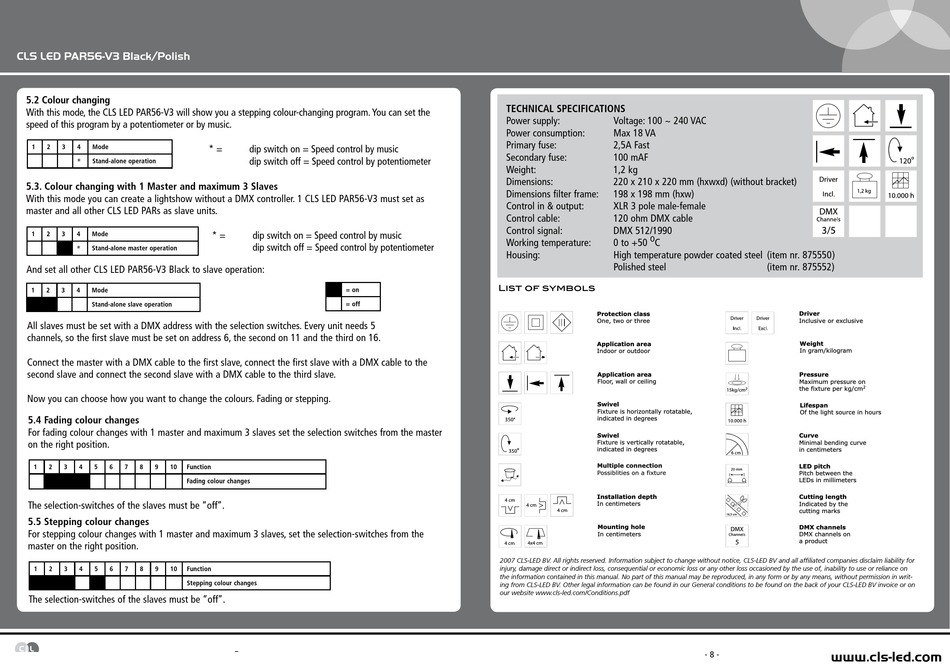

Creative Lighting Solutions CLS LED PAR56-V3 Manual page 4

CLS LED PAR56-V3 Black/Polish
5.2 Colour changing
With this mode, the CLS LED PAR56-V3 will show you a stepping colour-changing program. You can set the
speed of this program by a potentiometer or by music.
1 2 3 4 Mode
*
Stand-alone operation
5.3. Colour changing with 1 Master and maximum 3 Slaves
With this mode you can create a lightshow without a DMX controller. 1 CLS LED PAR56-V3 must set as
master and all other CLS LED PARs as slave units.
1 2 3 4 Mode
*
Stand-alone master operation
And set all other CLS LED PAR56-V3 Black to slave operation:
1 2 3 4 Mode
Stand-alone slave operation
All slaves must be set with a DMX address with the selection switches. Every unit needs 5
channels, so the first slave must be set on address 6, the second on 11 and the third on 16.
Connect the master with a DMX cable to the first slave, connect the first slave with a DMX cable to the
second slave and connect the second slave with a DMX cable to the third slave.
Now you can choose how you want to change the colours. Fading or stepping.
5.4 Fading colour changes
For fading colour changes with 1 master and maximum 3 slaves set the selection switches from the master
on the right position.
1 2 3 4 5 6 7 8 9 10 Function
Fading colour changes
The selection-switches of the slaves must be "off".
5.5 Stepping colour changes
For stepping colour changes with 1 master and maximum 3 slaves, set the selection-switches from the
master on the right position.
1 2 3 4 5 6 7 8 9 10 Function
Stepping colour changes
The selection-switches of the slaves must be "off".
* = dip switch on = Speed control by music
dip switch off = Speed control by potentiometer
* = dip switch on = Speed control by music
dip switch off = Speed control by potentiometer
= on
= off
- 7 -
CLS Manuals
CLS Atmosphere LED-panel
TECHNICAL SPECIFICATIONS
Power supply: Voltage: 100 ~ 240 VAC
Power consumption: Max 18 VA
Primary fuse: 2,5A Fast
Secondary fuse: 100 mAF
Weight: 1,2 kg
Dimensions: 220 x 210 x 220 mm (hxwxd) (without bracket)
Dimensions filter frame: 198 x 198 mm (hxw)
Control in & output: XLR 3 pole male-female
Control cable: 120 ohm DMX cable
Control signal: DMX 512/1990
o
Working temperature: 0 to +50 C
Housing: High temperature powder coated steel (item nr. 875550)
Polished steel
Protection class
One, two or three
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Multiple connection
Possiblities on a fixture
Installation depth
In centimeters
Mounting hole
In centimeters
Cable length
2007 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated companies disclaim liability for
Maximum cable attached
injury, damage direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on
on the fixture in centimeters
the information contained in this manual. No part of this manual may be reproduced, in any form or by any means, without permission in writ-
ing from CLS-LED BV. Other legal information can be found in our General conditions to be found on the back of your CLS-LED BV invoice or on
our website www.cls-led.com/Conditions.pdf
(item nr. 875552)
Driver
Inclusive or exclusive
Weight
In gram/kilogram
Pressure
Maximum pressure on
2
the fixture per kg/cm
Lifespan
Of the light source in hours
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the
LEDs in millimeters
Cutting length
Indicated by the
cutting marks
DMX channels
DMX channels on
a product
- 8 - www.cls-led.com
