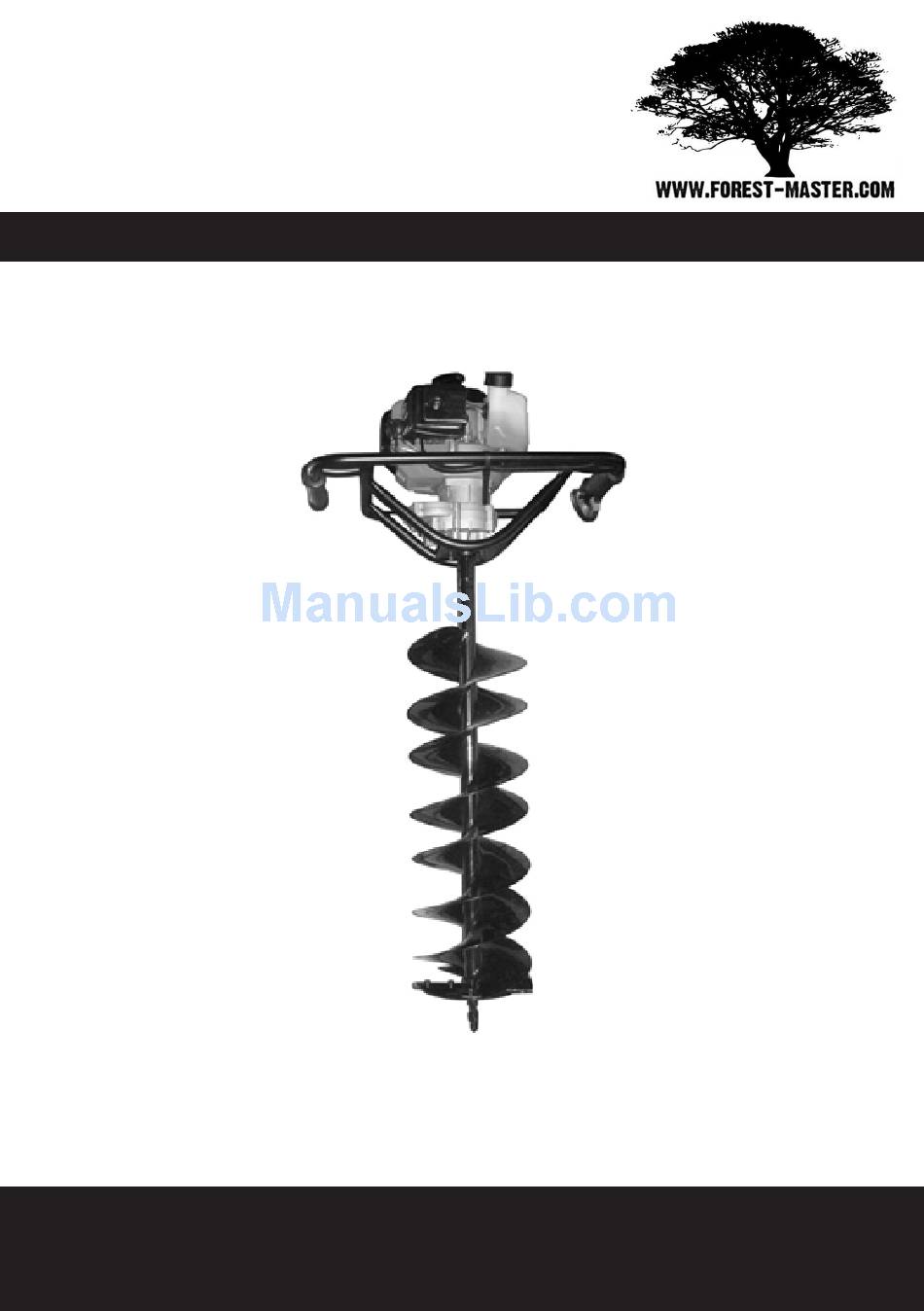

- Page 1 Earth Auger Model FM52EA IMPORTANT: Read this manual fully before assembly and use and observe all safety rules and operating instructions...
- Page 2 Engine Capacity 52cc Power 1460 W @ 6500 rpm Fuel Tank Capacity 1.2l Petrol-Oil Ratio 25:1 for mineral oil 40:1 for synthetic oil Auger Length 800mm Auger Diameter 100/150/200/300 mm Weight (with auger) 11kg Weight (without auger) 9.5kg Earth Auger FM52EA...
-
Page 3: Item Description
Item Description Handle Spark plug cap Ignition starter switch Exhaust Input drive Choke Pull start Reduction gear Fuel tank cap Fuel tank Lubrication hole Air filter Earth Auger FM52EA... - Page 4 WARNING: If used correctly, the auger is a powerful , fast, high performance tool. If used improperly or without the due precautions it could become a dangerous tool. For pleasant and safe work, always strictly comply with the safety rules that follow and throughout this manual. Earth Auger FM52EA...
- Page 5 29. Check, adjust, repair and clean the machine regularly. When replacing parts, please use the tools specified by our company. 30. It is forbidden to hitch tools or applications to the P.T.O. that are not specified by the manufacturer. Earth Auger FM52EA...
-
Page 6: Fuel Mixture
Do not start the engine if fuel leakage is found. Do not run the engine until the leak is fixed. 1 part two-stroke 1 part two-stroke synthetic oil mineral oil 40 parts petrol 25 parts petrol Fig 1: Using Synthetic oil Fig 2: Using Mineral oil Earth Auger FM52EA... -
Page 7: Starting The Engine
(C) to release button (D) and let the engine idle. Do not close the choke (E), when starting a hot engine. When the engine is idling, the bit should not turn. Earth Auger FM52EA... -
Page 8: Stopping The Engine
Idle screw (L), is adjusted in order to ensure a good safety margin between idle turning and clutch engagement. Weather conditions and altitude may affect carburation. Earth Auger FM52EA... -
Page 9: Fuel Filter
Always check the drill bit. Sharpen or replace it if necessary. The removable impact bit (P), and the non-removable blade (Q), can be bought from the dealer. Check and repair the blade (R), (S), and the bit tip (T), regularly. Or contact the dealer to replace. Earth Auger FM52EA... -
Page 10: Reduction Gearbox
6. Pull the starting rope several times to rotate the crankshaft to distribute the oil. Put the spark plug back in. 7. Wrap the engine in a plastic sheet. 8. Store the auger in a dry place, preferably off the ground and away from heat sources. Earth Auger FM52EA... -
Page 11: Starting Failure
Spark plug works normally 1. No fuel in the Fill the tank tank 2. Fuel cock is not Open it No fuel in open carburettor 3. The valve of Clean the fuel tank cap clogged Earth Auger FM52EA... - Page 12 2. Carbon deposit in the spark plug and Clean suddenly short circuit 3. Magneto damaged Replace or repair 1. Lack of fuel Fill the tank The engine stops 2. Carburettor clogged Clean slowly 3. Water in fuel Refill with fresh fuel Earth Auger FM52EA...
- Page 13 2. Bad lubrication Clean and grease 3. Impurity in the gearbox Clean and grease Maintenance procedures that are not covered in WARNING: this manual must only be carried out by authorized service personnel. Only use ORIGINAL SPARE PARTS. Earth Auger FM52EA...
-
Page 14: Warranty
Shipping charges for the delivery or collection of the unit, parts of the unit or attachments to the unit are the responsibility of the purchaser. The purchaser must pay transportation charges for any part submitted for replacement under this warranty unless such return is requested by Forest Master. Earth Auger FM52EA... - Page 15 Earth Auger FM52EA...
- Page 16 Inner hex bolt M5×25 white Control handle assembly Screw ST2.9×10 black Half-throttle lock button orange Lock spring Left control handle housing black Cut-off switch Lock pin black Throttle trigger orange Throttle trigger spring Right control handle housing black Earth Auger FM52EA...
- Page 17 Auger bit pin Open pin 1.7×32 Auger bit dia 200mm black Fixed belt black ACCESSORY Part No. Name/Description Q'ty Remark Alley key S=4mm Short Alley key S=5mm Box spanner 17×19 Open spanner 8×10 Open spanner 13×16 Fuel mixture bottle Earth Auger FM52EA...
- Page 18 CHOICE Part No. Name/Description Q'ty Remark Extension shaft black Auger bit dia 80mm black Auger bit dia 100mm black Auger bit dia 150mm black Earth Auger FM52EA...
- Page 19 Earth Auger FM52EA...
- Page 20 Key 3×5×13 Front half crank case Position pin 4×10 Oil sealing 15×30×7 Bolt M5×12 black Spring washer dia 5 white Flat washer dia 5 white Inner hex screw M5×30 white Ignition rotor Lock nut M8×1.25 Ignition coil Earth Auger FM52EA...
- Page 21 Spark plug cover black Muffler gasket Muffler assembly Bolt 6×65 Lock nut M6 black Muffler cover black Insulator gasket Insulator tube Carburettor gasket Carburettor Screw 3×8 white Choke lever black Air filter base black Ignition coil Earth Auger FM52EA...
- Page 22 Remark Choke plate Air filter inner plate Bolt M5×55 white Air filter sponge Sponge cover white O-ring 3.15×1.8 Air filter cover black Black fuel pipe dia 2.4×4.5 latex black Clear fuel pipe dia 2.5×4.5 latex translu- cent Earth Auger FM52EA...
- Page 23 Earth Auger FM52EA...
- Page 24 Manufactured under license for Forest Master Limited. Registered Office: Forest Master Ltd, Industry Road, Heaton, Newcastle Upon Tyne, NE6 5XB, United Kingdom. Tel: +44 191 2966939 email: info@forest-master.com - web: www.forest-master.com Earth Auger FM52EA...
