Summary of Contents for Xtrons D717AL

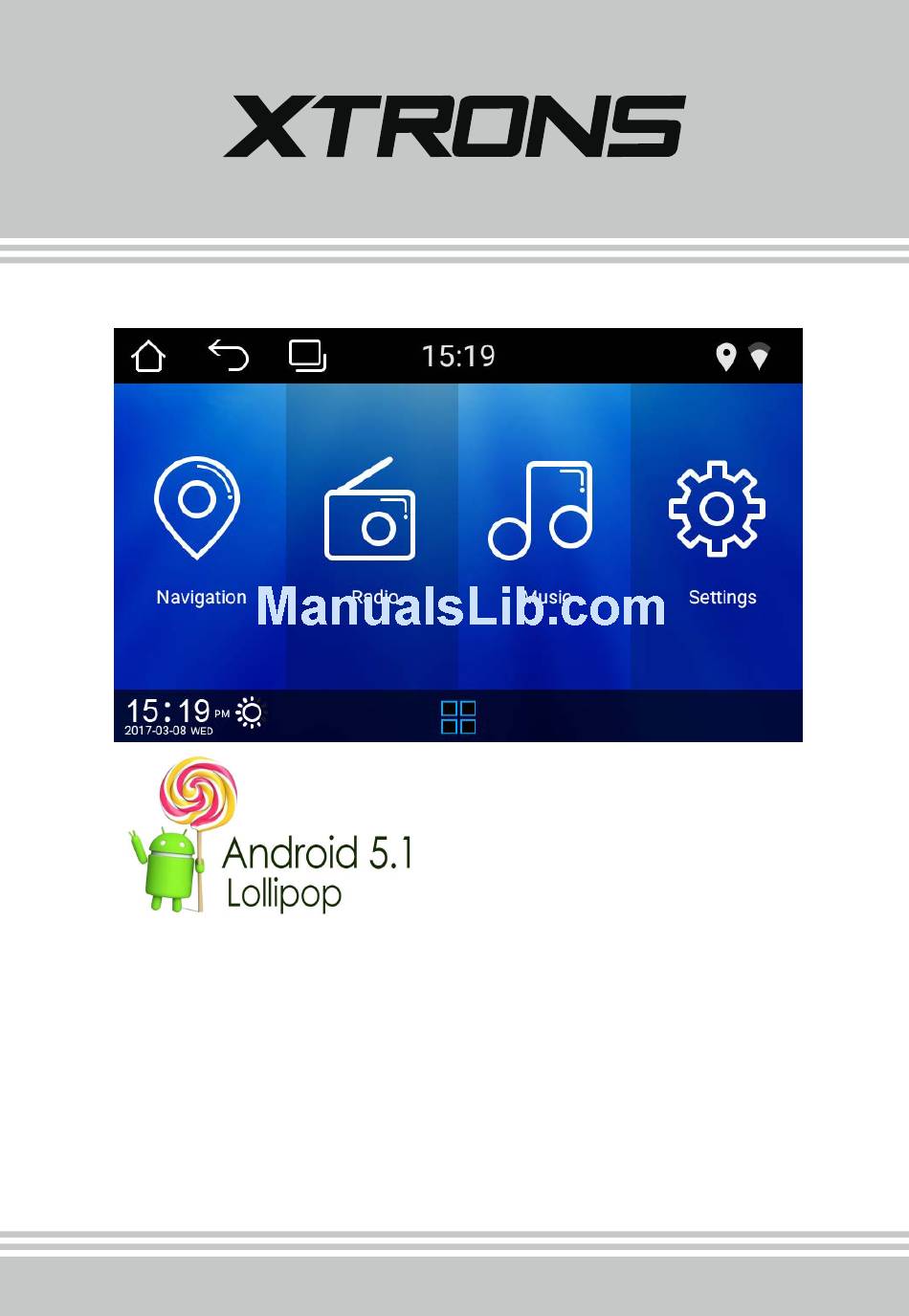

- Page 1 USER MANUAL Thank you for buying this XTRONS product. Please read through these instructions so you will know how to operate this unit properly. After you have finished reading the instructions, keep this document in a safe place for future reference.
-
Page 3: Table Of Contents
Contents Precaution ......................Main Menu ......................Radio ........................USB/SD ........................ AUX Input ......................Bluetooth ......................Bluetooth Music ....................Screen Mirroring ....................Navigation ......................Connect to the Internet ................DVR ........................DAB+ (Optional) ....................TV (Optional) ....................15 Settings ....................... Troubleshooting .................... -
Page 4: Precaution
Precaution Before installing this product - Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction. - To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable before installation. - Page 5 - Do not disassemble or modify this product, as there are high-voltage components inside which may cause an electric shock. Be sure to consult your dealer for internal inspection, adjustments or repairs. Before using this product , be sure to read and fully understand the following safety information: - Do not operate this product or any applications if doing so will divert your attention in any way from the safe operation of your vehicle.
-
Page 6: To Ensure Safe Driving
To ensure safe driving WARNING - LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE. -
Page 7: Main Menu
Main Menu 1. Home 2. Back 3. Recent apps 4. Time 5. Date and time 6. Brightness 7. Display all apps... - Page 8 Use apps Tap "Display all apps" icon to display all apps and tap an app to open it. Customize the unit Change the wallpaper You can set an image or photo as wallpaper for the Home screen. You can choose from the preset Live Wallpapers (dynamic) and Wallpapers (stills), or choose from images or photos stored on a USB storage device or an SD memory card.
-
Page 9: Radio
Radio 1. Perform seek tuning or non-stop seek tuning 2. Preset channel list Use frequency slider to select a frequency you like, then touch and hold any of preset frequency keys to store it. Up to 18 FM stations and 12 AM stations can be stored in memory. 3. -
Page 10: Usb/Sd
USB/SD Plug a USB storage device or insert an SD memory card, then tap Music on the Home screen to play music, tap Video to play video files, or tap ES File Explorer to view images and photos. AUX Input You can display the video image output by the device connected to this unit. -
Page 11: Bluetooth
Bluetooth 1. Pair a device Keypad 4. Paired devices list 7. Phone book 2. Disconnect a device 5. Dail Settings 3. Scan 6. Recent Calls 9. Bluetooth music Connect your mobile phone to this unit via Bluetooth and use an external microphone to make and receive hands-free calls. - Page 12 1. Phone calls Enter the number to make a call. You can also choose a contact from the phone book to make a call. 2. Phone book to synchronize the contacts from your Bluetooth device. 3. Recent calls View recent outgoing calls, incoming calls or missed calls.
-
Page 13: Bluetooth Settings
4. Devices list to check paired devices or available devices, then tap to pair the device. to unpair the device. 5. Bluetooth settings You can turn AutoAnswer on or off. ① You can change the Device Name of this unit. Tap "Device name" to enter a ②... -
Page 14: Bluetooth Music
Bluetooth Music After the Bluetooth connection is established, tap A2DP on the Home screen, then you can play music stored in your Bluetooth device on this unit. ※ At first, you need to operate the music playback on your Bluetooth device. Then you can operate the Bluetooth music on the unit. - Page 15 For Android smart phone: 1. Connect via a USB cable a. Go to Settings > About Device, then tap Build number 7 times to enable Developer options. Turn on USB debugging. A message Allow USB debugging? will pop up. Turn Always allow from this computer on, then tap OK. b.
-
Page 16: Navigation
Navigation Built-in navigation offers detailed, reliable route guidance information to help you get where you want to go. You can actually download a range of GPS Navigation apps via Google Play and run them on the unit. You can download Sat Nav apps like TomTom, Navigon, Route 66, Sygic, iGO, Google Maps and many more. -
Page 17: Dvr
You can control a car DVR camera (sold separately) on this unit and use it to record all the events of a journey. DAB+ (Optional) With use of a DAB dongle (sold separately), DAB+ (Digital audio broadcasting) tuner lets you enjoy the convenience of digital radio, while Auto DAB+ Tuning makes sure there are less signal interruptions. -
Page 18: Tv (Optional)
TV (Optional) With use of a Digital TV tuner (sold separately), MPEG-4 Digital TV enables you to watch DVB-T digital TV on this unit. Please check to ensure your country supports MPEG-4 DVB-T. ※ Please note this feature is not supported on all models. Settings 1.Common Settings 1. -
Page 19: System Settings
Device Settings 2.1 Wall paper Choose wallpaper from Wallpaper / ES File Explorer / Gallery / Live Wallpaper 2.2 Date/Time Automatic date & time: Use network provided time. Select time zone: Tap it and select time zone. Use 24-hour format: 12-hour format and 24-hour format switch 2.3 Language Set the language for unit. - Page 20 3.4 Reset Tap "X" to restore to factory setting. 3.5 Factory Settings Enter the password 7890 to go to Factory settings. Power logo: Select one of the preinstalled car manufacturer logos as your start up screen. 3.6 Multicolor settings This enables you to change the illumination color of the buttons to your personal preference.
- Page 21 2.Device 2.1 Display 2.1.1 Wallpaper Set an image or photo as wallpaper for the Home screen. 2.1.2 Daydream Choose different mode from Clock, Colors, Photos and Photo album for Screen Saver 2.1.3 Font Size Font size: Small, Normal, Large and Huge 2.1.4 When device rotated 2.1.5 Cast Screen 2.2 Sound &...
- Page 22 3. Personal 3.1 Location Turn Location on or off. Location mode: Choose from High accuracy, Battery saving, and Device only. Show recent location requests 3.2 Security - Screen lock - Owner info - Encrypt device - Make passwords visible - Device administrators - Unknown sources - Storage type - Trusted credentials...
- Page 23 3.3 Accounts Add account Add a Google account or other accounts. 3.4 Language & input 3.4.1 Language Set the language for the unit. Choose from English, French, German, Spanish, and many more. 3.4.2 Spell checker Turn Spell checker on or off. 3.4.3 Personal dictionary Add words in the user dictionary.
- Page 24 - Speak passwords - Accessibility shortcut - Text-to-speech output - Touch & hold delay - Color inversion - Color correction 4.3 Printing Accessibility 4.4 About device See information about the unit. The items you can view include: - System updates - Status - Legal information - Model number...
-
Page 25: Troubleshooting
Troubleshooting If you have problems operating this product, refer to this section. The most common problems are listed below, along with likely causes and solutions. No power - Car engine has not been started. Start the car engine. - Incorrect wiring connection. Check the wiring. - Fuse has been damaged. - Page 26 Noise in broadcasts - Signals are too weak. Select other stations with stronger signals. - Check the connection of the vehicle antenna. - Change broadcast from stereo to mono. Preset station lost - Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.
- Page 28 www.xtrons.com...
