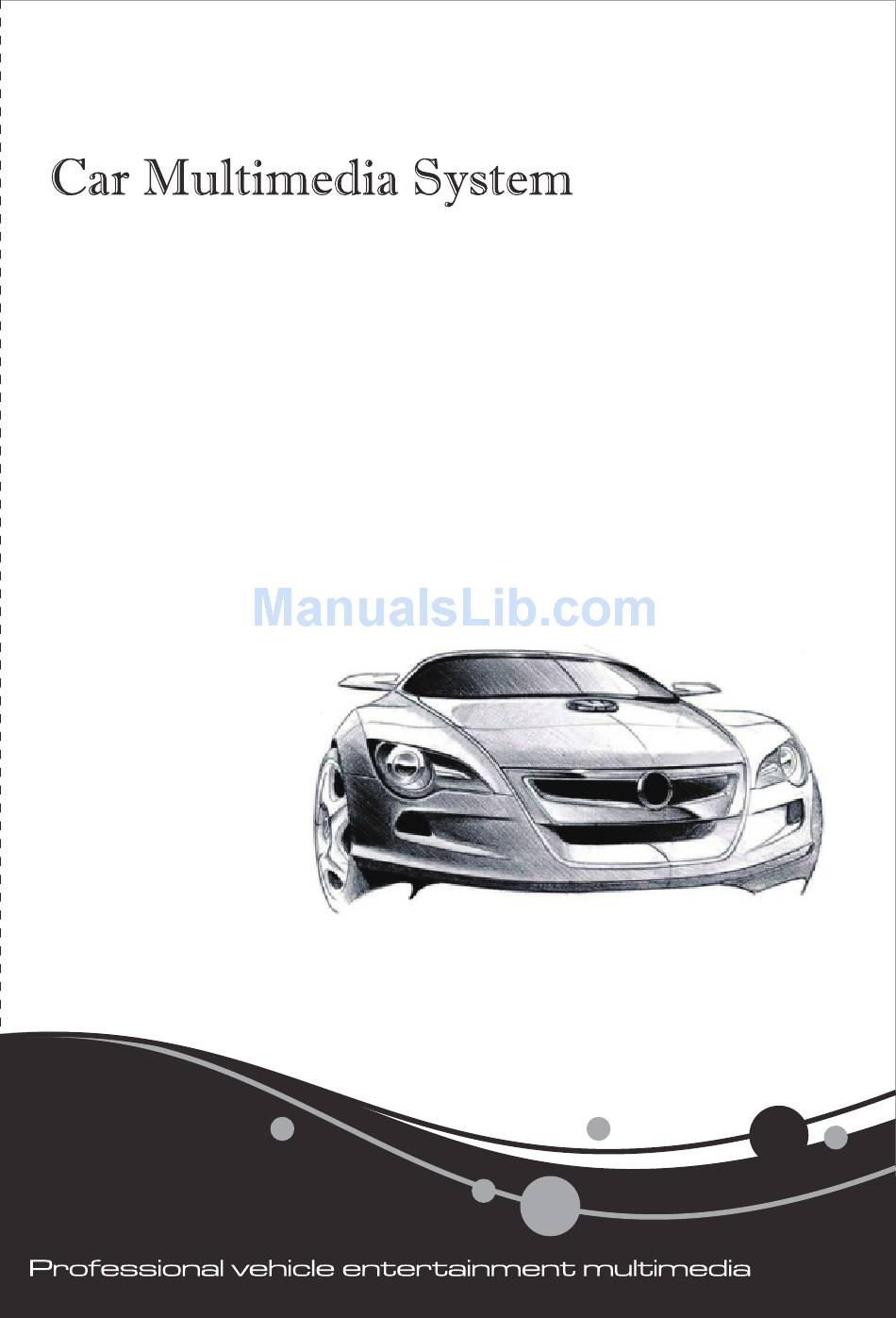

  • Page 1 DR Series User Manual REV0.0...
  • Page 2 Common Troubleshooting Guide Reason Solution Fault Using the same insurance Power fuse was burnt. with main unit to replace No boot up. Other factors caused the After pressing the RESET key with a small nib on the face microprocessorincorrect panel, power on again. operation After ignition starting The BATT of ACC ignition...
  • Page 3 Bluetooth using method Password：0000 1、Enter into bluetooth interface,if not paired with mobile phone,will appear ”no connection” 2、Open mobile phone bluetooth and search device,search name of ”rk- px3”,click connection.Some mobile phone maybe ask pairing password,pls input”0000” and complete connection.If connected successfully,”no connection”will disappear. 3、Synchronous phonebook ,in the”phonebook”page,click”download phonebook”,the phone will appear synchronized request,click”ok”to complete synchronization.If too many on the phonebook ,need to take a...
  • Page 4 Steering wheel button settings Click“ ” icon on the main UI to enter into the setup interface 1、Click“ ”in the carset interface,and then click“ ”to enter into steering wheel setting interface. 2、At first,press “ ”button to remove all old datas. 3、Set the buttons as tips on the screen.Note:when prompt press button the wheel,pls hold 0.5s-1s,cannt relax too early.
  • Page 5 Map installation and the third party applications installation 1、Copy map installation file(APK) and map data file to the SD card,insert GPS slot 2、Enter explorer,click”GPS SD CARD’’ and find APK installation file in the SD card. 3、Click APK installation file,click “next step’’in the pop-up window,until installation finished 4、If it is the first time to install applications,maybe pop-up window of ”prohibit installation”,then click settings,in the settings interface to...
  • Page 6 Mirror Link 1、Smart Phone： *Connect mobile phone with this unit via bluetooth pairing. *Connect this unit and mobile phone with a 2.0USB cable. *Prompt download mirror link”Drive Mode“APP for the first time using,and then installation after download(some mobile phones maybe will not prompt download and install APP).
  • Page 7 DVD upgrade 1、Copy upgrade file”dvdrom.bin”to an empty CD disc(if the file name is not”dvdrom.bin”,pls change it to”dvdrom.bin”) 2、Start the unit,insert the disc,click”OK”in pop-up window to upgrade, if dont click”OK”,will start to upgrade automatically after 30seconds. 3、When progress bar run to 100% means upgrade finished,pls remove CD disc and reboot.
  • Page 8 MCU upgrade 1、Copy upgrade file”McuRom_C.bin”to the USB/SD root director y,insert USB1 or Media SDCARD。 2、Enter into carset,click”MCU upgrade”in general settings,click ”start upgrade”.When progress bar run to 100%,click”OK”in the pop-up window to restart the unit to complete upgrade. 3、After start the unit,pls check version information to confirm whether the upgrade is successful.
  • Page 9 The notes about the full unit's connection diagram ◆ The product is used for such cars with 12V batter y and negative grounding , before installing this product on these cars with 24V batteries,such as truck ,bus, big coach etc.cars), please install the reduction voltage equipment firstly. ◆...

  • Page 10: Functions And Features

    Functions and features System Features ◆ Android 4.4.4 operation system ◆ Cortex A9 quad -core processor Rockchip PX3 1.6 ◆ 1G RAM， G ROM。 ◆ 5point capacitive touch screen mirror link function Supported media formats for DISC ◆ Compatible with DVD-R, DVD-RW, DVD + R, DVD + RW, CD-R,CD-RW CD-DA, MP3, WMA, SVCD, VCD and MPEG1, MPEG2,MPEG4, JPEG format discs .
  • Page 11 Warning 1.Do not expose the unit in the damp environment to prevent from fire or electric shock accident. 2.Any change or modification to this unit without the clear priorconsent of the authorization party may bring inconvenience to the users. 3.This unit is made up of high-precision accessories,do not dismantle the device or adjust any accessories inside this device ifwithout authorization.

  • Page 12: Safety Warning

    Thank patronage! Thank you ver y much for purchasing and using our digital car audio-visual series products! To ensure you can use this product correctly,please read this user manual carefully before use it and keep it well for your future reference. Safety Warning ●...
