- Page 1 Car Double Din DVD Navigation Entertainment System OWNER’S MANUAL...
-
Page 2: Table Of Contents
Table of contents Function summary………………………………………………………………………………… Notice for use………………………………………………………………………………… Audio and Video knowledge………………………………………………………………… Menu operation………………………………………………………………………………… 1. Main interface ……………………………………………………………………………………… 2. PIP function…………………………………………………………………………………… 3. Radio interface …………………………………………………………………………… 4. Multimedia player …………………………………………………………………………………… Play disc…………………………………………………………………………………………… Play SD/USB …………………………………………………………………………………… Detailed operation………………………………………………………………………………… 5. GPS navigation system…………………………………………………………………………… 6. - Page 3 Thank you for selecting our products! Hope this user’s manual facilitate your understanding of product operating method. Our company has the right to make final description of the Operating Instructions of this product. Before use, please be sure to read it carefully for safe operation and better entertainment.
-
Page 4: Audio And Video Knowledge
Original disc is required. Please do not use non-standard or inferior disc, otherwise may cause machine malfunction or serious impact on its service life. Replace of power fuse without professional instruction is prohibited. The improper use of fuse will cause machine damage or a fire. Do not place the unit in moist and humid conditions to avoid electric shock, damage and fire caused by short circuit. -
Page 5: Navigation System

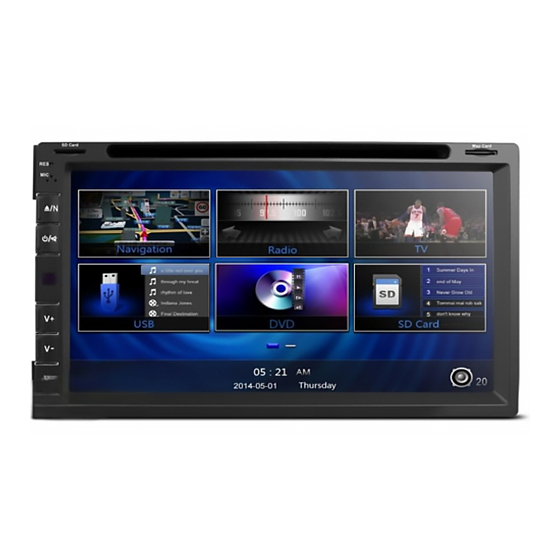

In the status of ON, touch the top left of the screen to enter intomain interface. The system provides functions of Navigation，Radio，TV，USB，DVD，SD card，BT music,3G Network,Setup,AUX,Ipod,Bluetooth. Touch the icons in the main interface to enter into the relavent function. The main interface is made of several icons for different functions. Touch the icons in the main menu to enter into the second-level menu. - Page 6 positioning and navigation. W hile leaving the sources of influence, you can quickly restore the positioning and navigation. 5. Please note that any wireless telecommunication products(such as mobile phones or speed alarms), are likely to interfere with satellite reception, resulting in signal reception instability. 6.
-
Page 7: Radio Interface
Radio interface Radio menu,this product is built-in high quality AM/FM/RDS radio receiver, which supports AM/FM auto search function, frequency display, etc. ---Sound button. When it shows , you can adjust the volume; Press this button, the icon will be changed to , which is mute state. -
Page 8: Tv Function
according to signal strength. ST--- Single track. In FM band, press this button to switch between ST and MONO. The default setting is ST. AM band doesn’t have this function. DX---In FM band, press this button to switch between LOC and DX. The default setting is DX. AM band doesn’t have this function. - Page 9 increments preset channel bodyin ★ Exit Select or automatically turn to other play mode. Play USB When the device is under running state,the system will automatically switch to USB/SD play mode after connecting to USB/SD,When USB/SD is connected to the device that is not under running state,it shall click “USB”/”SD”...
- Page 10 ★Detailed operation When playing disc, if no operation within a certain time, both upper and lower menu will disappear and it will be full screen display. Touch the screen, the menu will come out again. 3G network ★The system is built-in 3G network function.Click “3G network” in the main interface to enter into the 3G network mode,shown as below picture: Click “dialing”...
- Page 11 Bluetooth This device has bluetooth and hand free function. If your mobile has bluetooth function, it can set up point-to-point connection with this device. To make and receive calls as well as play music are achieveable on the screen. ★ Pairing Press Bluetooth icon in main interface to switch to bluetooth interface.
- Page 12 2. Pairing. Enter into bluetooth interface, then touch, “Phone Pairing” will come out. Whilst open the phone’s bluetooth device, and search for new pairing. When phone search out the device bluetooth, that is the name of native bluetooth device, select this device and connect it. Input a password( default password 0000), the phone will pair with the device automatically.
- Page 13 4. Answer a call When this device is on, if a call is in, the system will automatically switch to bluetooth and hands free mode interface. If bluetooth setting of system menu is Auto Answer Mode, the system will answer a call automatically. If setting is Manual Answer Mode, click dialing key to answer a call. Click hang up key to end the call.
-
Page 14: Setting Interface
IPod interface ★This system supports iPOD audio and vedio playing.Ipod is a large capacity media developed by APPLE CORPORATION,it takes 1.8-inch hard disk produced by Toshiba as storage media and has a storage capacity of 2~80G.It can store more than 10000 MP3 music/vedio files with CD quality,has perfect management program,innovative operation manner and unique appearance.It is one of few APPLE products that can cross PC and MAC platforms.Besides playing MP3 and compressed audio/video files,iPod also can be used as High-speed mobile hard disc. - Page 15 Navi set ★ 1.GPS navigation path setting. 2.Cick system setting, then click “ ” to enter into navigation routing menu to select correct routing, in order to run the map.Remarks: only when the correct navigation map routing is selected, can you run theGPS navigation function. - 15 -...
-
Page 16: Time Setting
3. Brake wire testing Click to select it, you can test the hand brake wire during driving, this wire is to avoid the driver to watch dvd during driving, which is hazardous, and it can cause severe injury. ★Time setting It includes time setting and date setting, the user can select either 12 hour or24 hour system. -
Page 17: Language Setting
★ Backlight setting Click the”backlight” icon to adjust the backlight, bright screen in the night might hinder the driver. (Remarks: you can reset to the default value, it is 100%). ★Language setting Click select language. system built-in multi-languages:Chinese,English,Portugese,Franch,Spanish,Deutsch,Russian,japanese. - 17 -... - Page 18 ★Option setting User can select”Beep” and “Break detect” ★Background setting The user can can select the backgroud images，then clike the”OK” . - 18 -...
- Page 19 ★Steering wheel control setting Learn the buttons between steering wheel and dvd unit one by one, then you can control dvd unit through steering wheel button. ★Car Logo Here the user select the car logo according to your car brand. - 19 -...
- Page 20 ★Standby setting The uer can set off-screen time here,: 3 minutes; 5 minutes; 10 minutes; standby sofor now. It will be on all the time if setting is cancelled. ★Radio setting The user can select the radio area:Europe,Russia,N.ANERICA,S.ANERICA,JAPAN - 20 -...
-
Page 21: System Info. Setting
★System info. Here the user can get the software version no, adjust the touch panel, reset to factory setting. User friendly ★Visual parking system When back-up the car, switch to the reverse gear, the dvd unit will automatically switch to Camera input mode;... - Page 22 camera to help you reverse the car. ★ Hand brake testing Connect hand brake wire between dvd unit and car hand brake to activate parking testing function, then it will show video signal on the dvd screen only when the car is parked. If the passenger wants to watch dvd during driving, you can turn off this hand brake testing function, however it is not suggested to do so.
-
Page 23: Remote Control
Remote control Caution 1.Service life of the battery is about 6 months under normal conditions.If the remote control cannot be operated normally,battery shall be replaced in time. 2.If the remote control is out of service for a long time,the battey shall be taken out to prevent liquid leakage that can damage the remote controller. -
Page 24: Troubleshooting
BAND Select AM/FM bands,stop play under other modes Play/pause ZOOM Under DVD mode,key for image zoom ROOT Under DVD mode,key for entering primary menu of the disc 1.2.3.4.5.6.7.8.9.0 Numeric key Under VCD mode,key for entering PBC menu SETUP Enter system setting menu SEARCH Search and play AUDIO... - Page 25 Inferior disc is prohibited; Use genuine discs; Inferior quality Loudspeaker does not match impedance Change a matched of the machine loudspeaker; sound; Speaker fault Check connection Distortion loudspeaker. sound Machine reset Connection of ACC and B+ is not correct. Check and reconnect ACC and by itself when it is shut down Connection of brake wire is not correct;...
-
Page 26: System Parameter
search function when VCD is working System parameter Common: Rated voltage: DC12V (DC9.0 V～DC 16V allowed) Grounding system: Negative polarity Maximum current: 10A Audio: Maximum output power: 50W*4 Load impedance: 4Ω Bass: ± 7dB(100Hz) Treble: ± 7dB(10kHz) DVD player: ESP: DVD---4seconds, VCD---10seconds SNR: 85dB(A) Frequency characteristic: 20～20,000Hz RCA Audio output: 1.8V max (adjustable) - Page 27 Frequency response: 30-15, 000Hz Stereo crosstalk: 35dB(1KHz) Frequency range: 522-1620MHz Effective sensitivity: 30dB - 27 -...
- Page 28 - 28 -...
