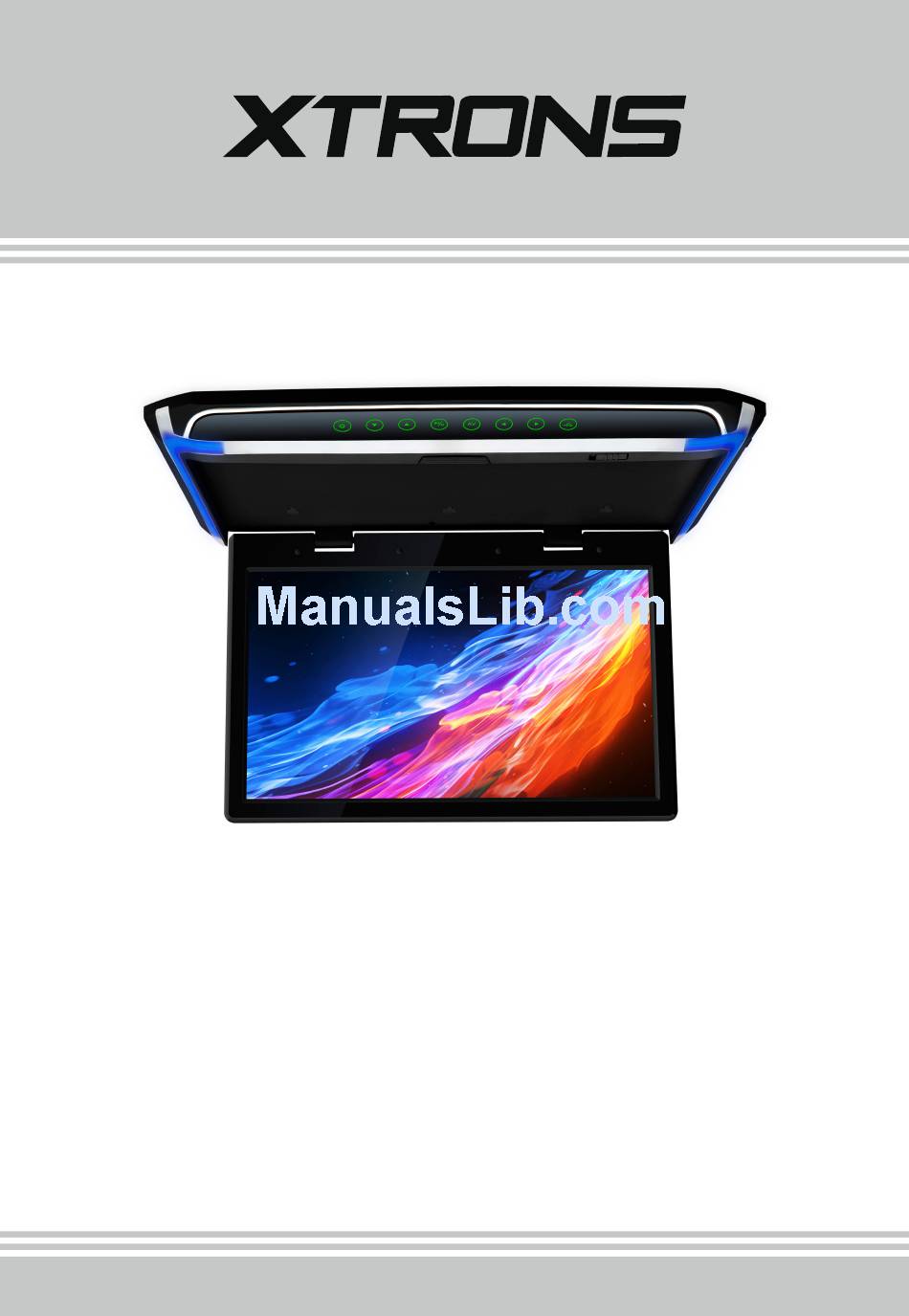

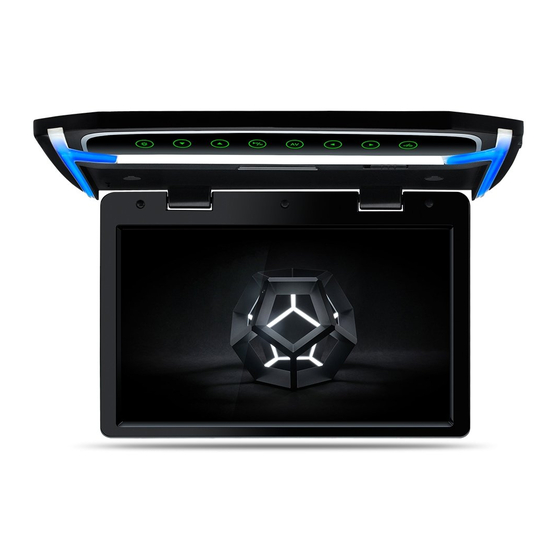

  • Page 1 USER MANUAL Thank you for buying this XTRONS product. Please read through these instructions so you will know how to operate this product properly. After you have finished reading the instructions, keep this document in a safe place for future reference.

  • Page 2: Important Notice

    IMPORTANT NOTICE When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the mobile video product.

  • Page 3: Table Of Contents

    Contents Precaution ......................Checking part names and functions ............Remote control ....................USB/SD ....................... Using AV input and AV output ..............Using an HDMI source .................. Listening over the vehicle’s speakers ............. Using the external wireless IR headset ........... Troubleshooting .....................

  • Page 4: Precaution

    Precaution Certain country and government laws may prohibit or restrict the placement and use of this product in your vehicle. Please comply with all applicable laws and regulations regarding the use, installation and operation of this product. If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

  • Page 5: To Avoid Battery Exhaustion

    - Do not allow this product to come into contact with liquids. Electrical shock could result. Also, damage to the product, smoke and overheating could result from contact with liquids. - If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the ignition switch off (ACC OFF) immediately and consult your dealer.

  • Page 6: Checking Part Names And Functions

    Checking part names and functions (Model: CM101HD/CM156HD) 1. Back/Power Touch to return to the previous screen. Touch to turn on or turn off the power. Touch to move right when navigating through the menu. Touch to turn the volume up. Touch to move left when navigating through the menu.
  • Page 7 Touch to move upwards when navigating through the menu. Touch to move downwards when navigating through the menu. 8. LED lamp switch Touch to turn the blue LED atmosphere lamp on or off. (Model: CM101HD) 1. USB port Plug a USB storage device into the USB port. 2.
  • Page 8 (Model: CM156HD) 1. USB port Plug a USB storage device into the USB port. 2. SD card slot Insert an SD memory card into the SD card slot. 3. HDMI port Connect a device to the product using an optional appropriate HDMI cable or adapter.
  • Page 9 1. Back/Power Touch to return to the previous screen. Touch to turn on or turn off the power. Touch to move right when navigating through the menu. Touch to turn the volume up. Touch to move left when navigating through the menu. Touch to turn the volume down.
  • Page 10 Plug a USB storage device into the USB port. 3. SD card slot Insert an SD memory card into the SD card slot. (Model: CM173HD) 1. Back/Power Touch to return to the previous screen. Touch to turn on or turn off the power.
  • Page 11 Touch to move downwards when navigating through the menu. 8. LED lamp switch Touch to turn the white LED atmosphere lamp on or off. (Model: CM173HD) 1. SD card slot Insert an SD memory card into the SD card slot.

  • Page 12: Remote Control

    Remote control...
  • Page 13 1. V1/V2 Press to select the video source. 2. USB/SD Press to choose to play files in USD mode or in SD mode. Press to move upwards when navigating through the menu. Press to perform fast-forward. Press to move right when navigating through the menu. Press to skip to the next track/chapter.

  • Page 14: Usb/Sd

    13. EXIT Press to exit. Press to skip to the previous track/chapter. 15. ENT Press to enter. Press to move left when navigating through the menu. Press to perform rewind. Press to turn on or turn off the power. Using the remote control Point the remote control in the direction of the front panel to operate.

  • Page 15: Using Av Input And Av Output

    Using AV input and AV output An external video source, video game system, or other audio/video devices can be connected to the AV input. The product provides an AV output for optional video monitor(s). This output will provide the AV signals that duplicate the picture/audio being processed by the product to an additional monitor or video display.

  • Page 16: Using The External Wireless Ir Headset

    The external FM modulator frequencies are FM 87.7, 87.9, 88.1, 88.3, 88.5, 88.7, 88.9, 106.7, 107.1 and 107.5. Using the external wireless IR headset A separately sold wireless IR headset is required for utilizing the IR transmitter function. A dual channel wireless IR headset has a two-position slide switch labeled “A/B”. When the switch is in the “A”...
