Summary of Contents for Maxell SSB-3WB

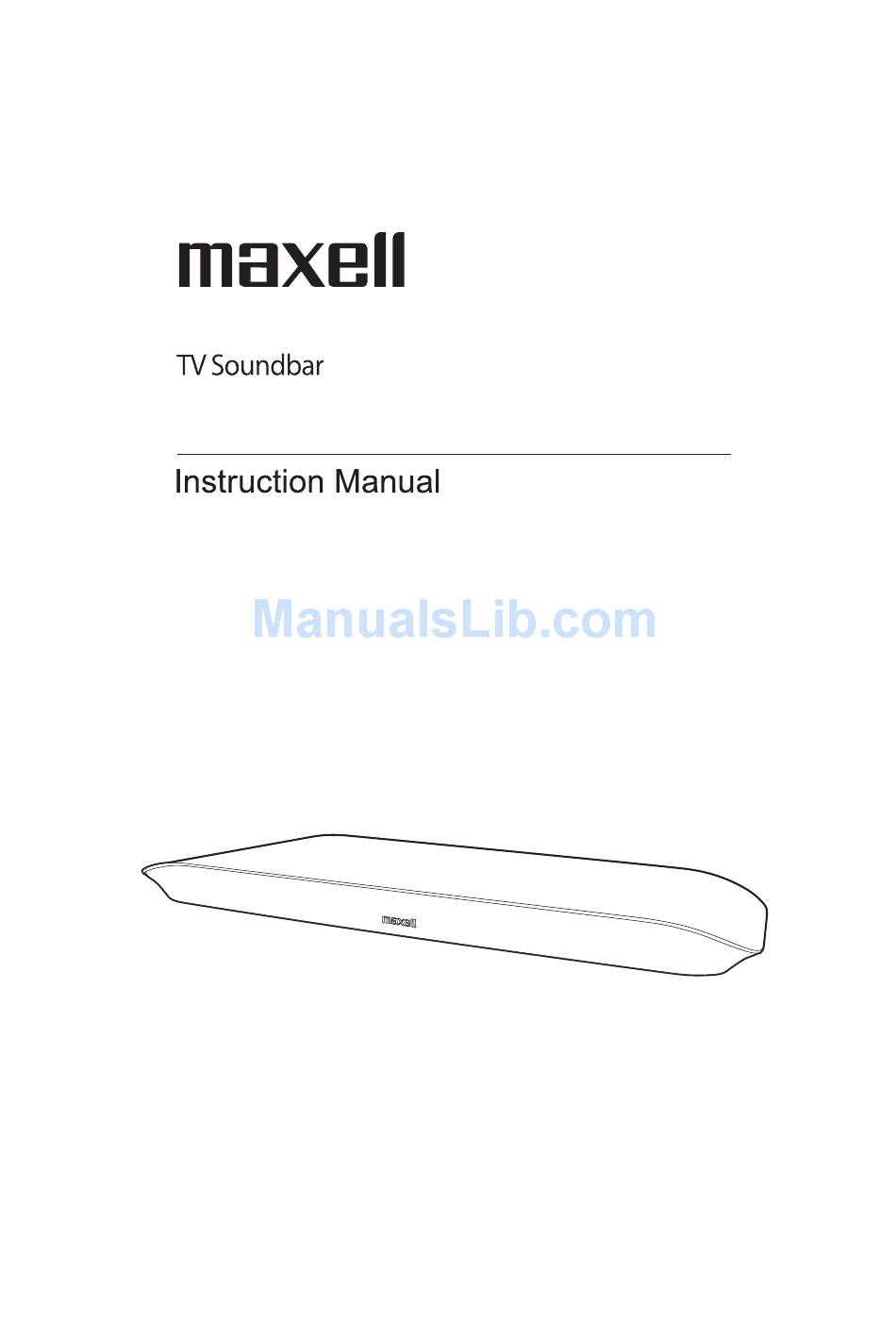

- Page 1 SSB-3WB V1.0...
-
Page 2: Table Of Contents
Contents What’s in the Box ......................2 Important Safety Instructions ..................5 Main Unit: Top View ......................6 Rear View ..........................6 Smart Remote Control ......................6 Identifying the Parts ....................6 Prepare the Smart Remote Control ..................7 Precautions Concerning Batteries ..................7 Getting Started ...................... -
Page 3: What's In The Box
What’s in the Box SSB-3WB V1.0 Main Unit Instruction Manual Smart Remote Control (Maxell CR2025 lithium button battery included) <50kg Line Cable Line Cable (3.5mm to 3.5mm) (RCA to RCA) (For TV Headphone Output) (For TV Line out) AC Power Cable... -
Page 4: Important Safety Instructions
Important Safety Instructions Indicates that ‘there is a WARNING possibility of causing death Warning! RISK OF ELECTRIC SHOCK or serious physical injury if this DO NOT OPEN Product is erroneously handled’. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, Indicates that ‘there is a DO NOT REMOVE COVER (OR BACK). - Page 5 Important Safety Instructions Warning! Caution! Do not repair, modify or disassemble. Do not keep in a shaky place. The Product may fall and get damaged. Don’t Don’t Company shall not be responsible for any physical Do not keep in a place where lampblack or steam falls.
-
Page 6: Important Safety Instructions
Important Safety Instructions Safety - Never use the device unsupervised! Switch off the device whenever you are not using Read these instructions. it, even if this only for a short while. Keep these instructions. - The apparatus is not intended to be Heed all warnings. -
Page 7: Main Unit: Top View
Identifying the Parts Main Unit: Top View Smart Remote Control - Turn on this unit or switch to Power standby mode. SSB-3WB 1 ON/OFF - Select a source. - Turn on or turn off the unit. 2 BT/PAIR - Pair Bluetooth-enabled device. -
Page 8: Prepare The Smart Remote Control
(2) this device must accept any interference, including interference that may cause undesired operation of the device. Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. Model No: SSB-3WB with certification/registration number IC : 11096A-SSB3W... -
Page 9: Connections
Connections Place TV on top Connect to TV Using Optical IN socket provided for proper installation position of If your TV does not have HDMI sockets, please follow the set up below. the unit. Composite video (Cable not supplied) AV equipment e.g. - Page 10 Connections Auto-on/off function is applied in this unit. b) Connect Audio L-R output of the AV equipment to the LINE IN or RCA input Auto-off is to facilitate people not to con- onto the unit. trol the unit when no sound is playing in few Note: minutes.
-
Page 11: Basic Operation
Basic Operation Turn On/Off OPTICAL Turning the System ON/OFF Amber Either, 1) Press the button on the unit; or 2) Press the ON/OFF button on the remote control. Note: RCA/LINE IN When turning the system on, the system will Either, continue in the mode was set last time. -
Page 12: Select Srs Sound
Basic Operation 2 Activate your Bluetooth device and BASS select the search mode. 3 “SSB-3WB” will appear on your Bluetooth Bass off device. 4 Select “SSB-3WB” and enter “0000” for Amber Bass 1 password if necessary. 7 On successful pairing, the BLUETOOTH... -
Page 13: Program Smart Remote Control To Control Tv
Basic Operation Program Smart Remote Control to Control TV You can store a total of up to seven of your most frequently used TV functions in the TV learning zone of the Smart Remote Control. This feature enables you to use only one remote control to operate the unit togeth- er with your TV. -
Page 14: Troubleshooting
Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter prob- lems when using this unit, check the following points before requesting for service. Warranty void if case is opened. Symptom Likely Cause What to do No sound Speaker not connected to active Verify that speaker is connected and... -
Page 15: Speci Cations
Speci cations General Power Requirements ...................AC 120V~60Hz Output Power: Front Speakers ......................10W x 4 Woofer ..........................30W Total Harmonic Distortion ..................1%(1kHz, 1W) Audio Input Sensitivity/Impedance LINE: ............Frequency Response ................40Hz - 20kHz(+/- 3dB) Unit Dimensions (W x H x D) ................720 x 54 x 340mm NET Weight ...........................
