MAXELL MXSP-BT03 BLUETOOTH
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT
AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
Thank you for purchasing this Maxell Bluetooth Speaker! The MXSP-BT03 is a Bluetooth portable
speaker with the following features:
Wireless playback of music from your Bluetooth enabled mobile phone via the Bluetooth
connection
Up to 33 feet (10 meters) line-of-sight operating distance
Bluetooth speaker
USB to Micro-USB charging cable
3.5mm to 3.5mm audio cable
User's manual
1.
Volume Up
2.
Volume Down
3.
Multifunction button (long press to enter pairing mode)
4.
Audio Input
5.
USB charging jack
6.
On / off switch
1.
Switch ON the speaker by sliding the power button to ON position
2.
Press and hold the Multifunctional button for about 8 seconds to pair, the LED indicator will flash red and blue. The
Bluetooth enabled device can scan and connect to "MAXELL MXSP-BT03"
3.
Music playing or phone calling is now available with your MXSP-BT03.
OR to connect using the 3.5mm to 3.5mm cable included
4.
Plug the 3.5mm audio cable from your device to the speaker's AUDIO INPUT
5.
Music playing is now available with your MXSP-BT03
1.
Turn on: In the off state, switch the button to the ON position, the blue LED flashes with an indication tone.
2.
Turn off: Switch the button to the OFF position, the red LED flashes with an indication tone
3.
Pairing: Turn on the speaker or un-pair it from the paired device. Hold the multifunction button for about 6
seconds, the red and blue LEDs flash alternately, indicating that the Bluetooth speaker is in searching mode.
You can operate your Bluetooth-enabled device to scan and match the speaker.
WIRELESS SPEAKER
USER MANUAL
PRODUCT FEATURES
WHAT'S INSIDE?
LOCATION OF CONTROLS
GET STARTED
SPEAKER OPERATIONS
1
Advertisement
Table of Contents
Related Manuals for Maxell MXSP-BT03
Summary of Contents for Maxell MXSP-BT03
-

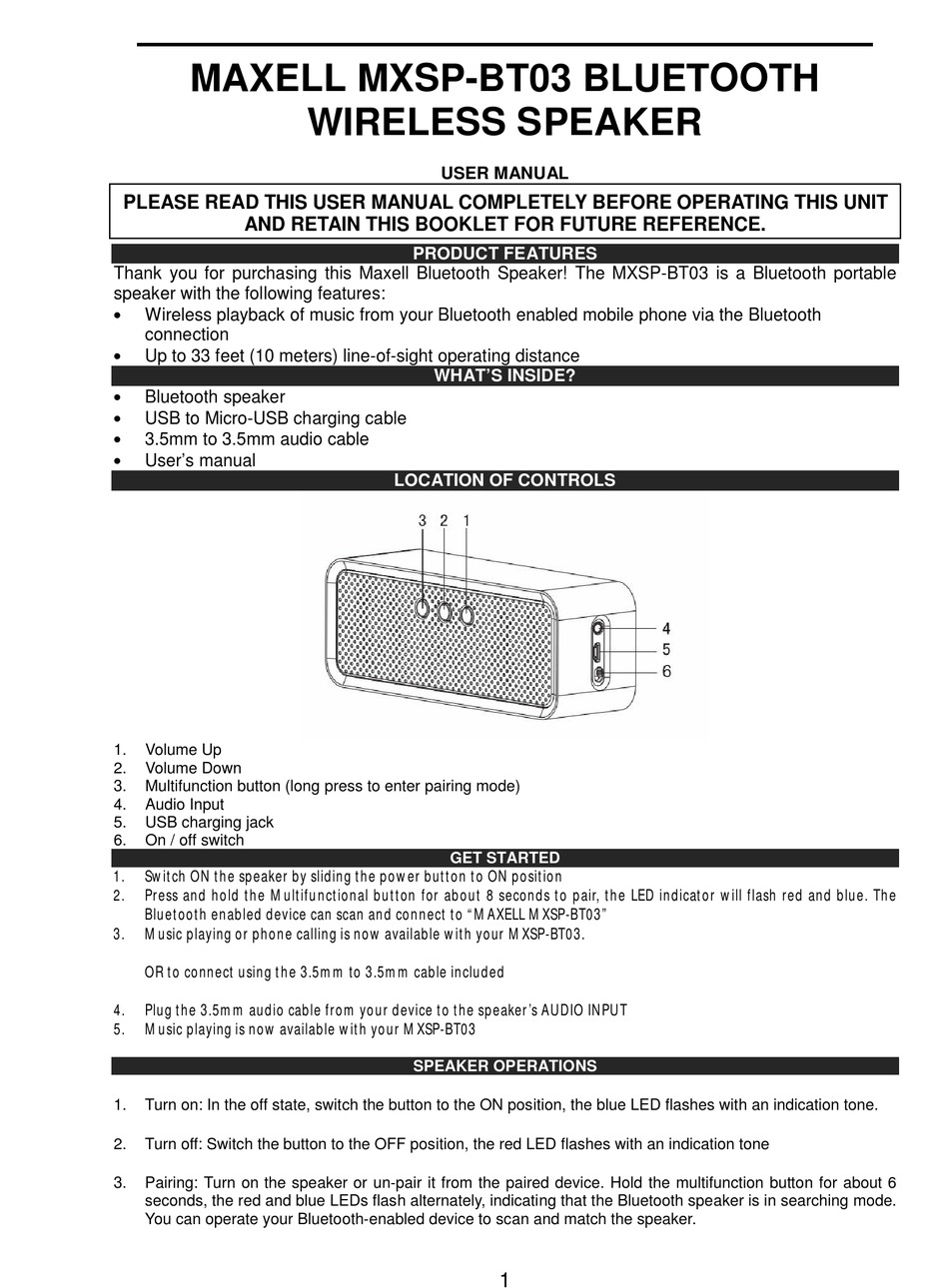

Page 1: Wireless Speaker
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE. PRODUCT FEATURES Thank you for purchasing this Maxell Bluetooth Speaker! The MXSP-BT03 is a Bluetooth portable speaker with the following features: Wireless playback of music from your Bluetooth enabled mobile phone via the Bluetooth connection ... - Page 2 Typically, the steps involved include entering the settings, connection, or Bluetooth menu on the mobile phone, then selecting the found Bluetooth device option. The phone will find the “MAXELL MXSP-BT03” Bluetooth speaker, and ask if you are ready for pairing. Press the OK or CONFIRM to pair the devices.
- Page 3 If the Bluetooth speaker is turned off, it will connect to the pre-set Bluetooth speaker automatically when it is switched on. When the MXSP-BT03 disconnects to mobile phone because it exceeds the effective range (typically 10 meters), the Bluetooth speaker will re-connect to mobile phone once it is back to the effective range within 10 minutes.
- Page 4 Plug the USB power adaptor (not included) into a wall wall outlet or the USB cable outlet and plug the USB cable (included) into the (included) is not plugged into the micro USB jack on the the MXSP-BT03. micro USB jack on the bottom of No Charging the MXSP-BT03.
- Page 5 Maxell Europe 2 Year Warranty Maxell warrants this product to be free from all defects for the first 2 years of the lifetime of this product. Warranty is not valid for normal wear or damage due to accident, abnormal use, misuse, or neglect. Any defective item will be replaced at no charge if returned with proof of purchase to an authorized Maxell dealer or Maxell Europe Ltd., Whitebrook Park, Lower Cookham Rd, Maidenhead SL6 8YA, United Kingdom.
