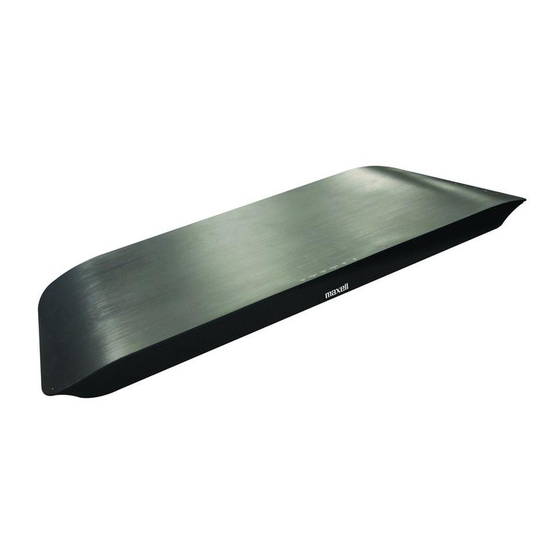

Maxell Sounddeck SSB-3WB User Manual
Under tv audio system
Hide thumbs
Also See for Sounddeck SSB-3WB:
- Instruction manual (15 pages) ,
- Quick start manual (5 pages)
Related Manuals for Maxell Sounddeck SSB-3WB
Summary of Contents for Maxell Sounddeck SSB-3WB

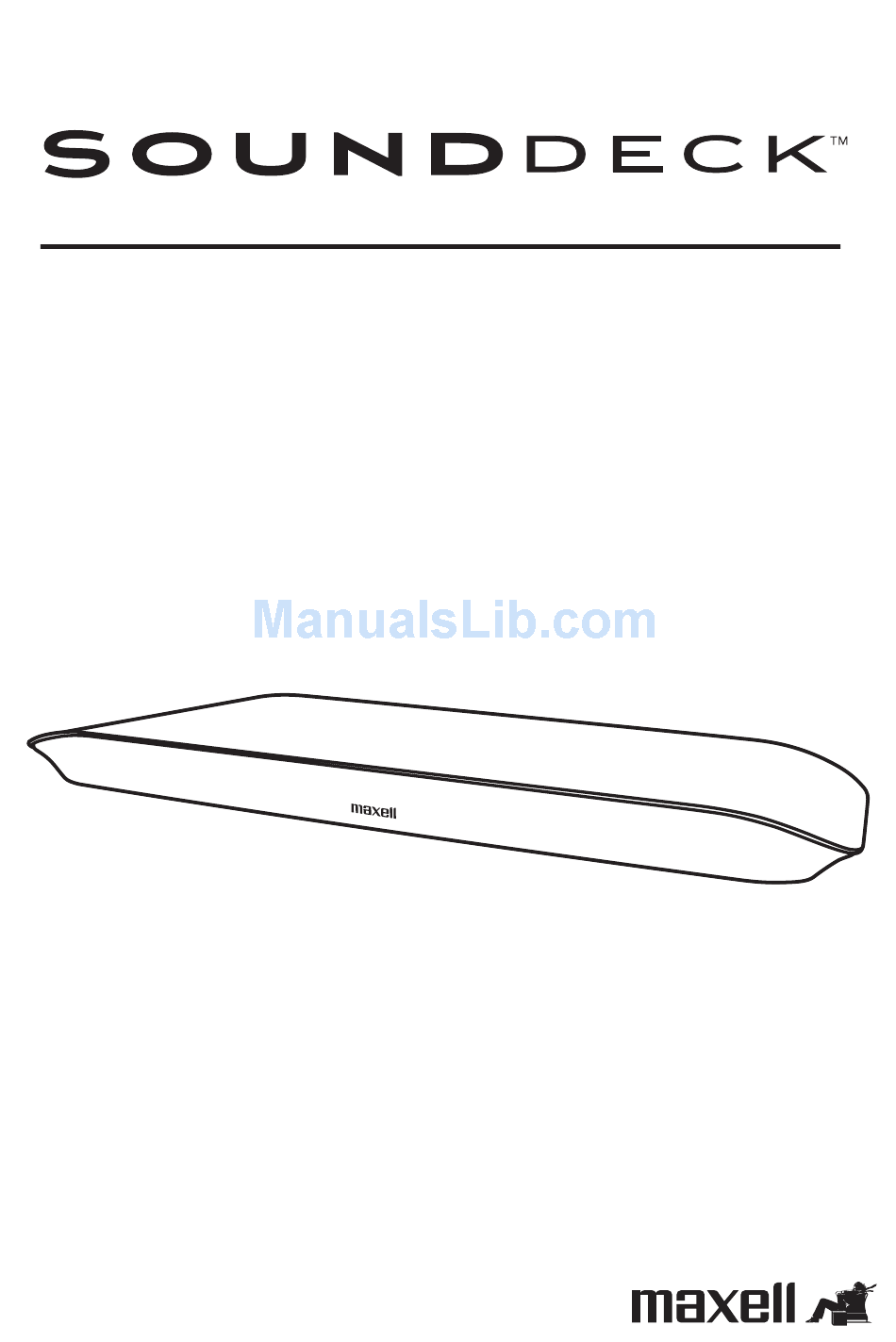

- Page 1 SSB-3 User Manual Under TV Audio System Haut-parleur de salon avec haut-parleur d’extrêmes graves intégré...
-
Page 2: Table Of Contents
Select Sources ........................11 Adjust Volume Level ......................11 Mute Sound ......................... 12 Bass Boost ..........................12 Select SRS Sound ......................... 12 Program Smart Remote Control to Control TV ..............12 Troubleshooting ......................13 Specifications ......................14 Maxell Warranty......................15 FCC Compliance ......................16... -
Page 3: What's In The Box
What’s in the Box SSB-3WB SoundDeck User Manual Smart Remote Control (Maxell CR2025 lithium button battery included) Line Cable Line Cable (3.5mm to 3.5mm) (RCA to RCA) (For TV Headphone Output) Optical Cable (For TV Line out) 50kg AC Power Cable DOs and DON’Ts Leaflet... -
Page 4: Important Safety Instructions
Important Safety Instructions Indicates that ‘there is a WARNING possibility of causing death Warning! RISK OF ELECTRIC SHOCK or serious physical injury if this DO NOT OPEN Product is erroneously handled’. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, Indicates that ‘there is a possibility of causing physical DO NOT REMOVE COVER (OR BACK). - Page 5 Important Safety Instructions Warning! Caution! Do not repair, modify or disassemble. Do not install on an unstable surface. The SoundDeck may fall and get damaged. Don’t Don’t hall not be responsible Do not install in an area where steam or for any physical moisture may be present.
- Page 6 SoundDeck, or the SoundDeck t s i operate normally, or has been dropped. Please call Maxell Tech Support at 1-800-377-5887 if service is required. This is a CLASS II SoundDeck with no insulation and no protective earth grounding provided.
-
Page 7: Identifying The Parts
Identifying the Parts Main Unit: Top View Smart Remote Control PAIR Turn on this unit or switch to Power standby mode. Select a source. 1 ON/OFF - Turn on or turn off the unit. Selects Bluetooth Pairing Mode - Select Bluetooth mode - Pairs unit when in Bluetooth mode mode. -
Page 8: Getting Started
Getting Started Precautions Concerning Batteries Prepare the Smart Remote Control When the Smart Remote Control is not The Smart Remote Control provided allows to be used for a long time (more than a the unit to be operated from a distance. month), remove the battery from the Even if the Smart Remote Control is Smart Remote Control to prevent it from... -
Page 9: Connections
Connections Place TV on top Connect using OPTICAL IN socket The Maxell SSB-3WB SoundDeck is designed a) Connect the Optical output of the source device to the input of the speaker. This for use with TV’s that do not exceed 110 lbs, connection is for the audio (or sound) only. -
Page 10: Connect To Tv
Connections Using RCA IN socket Connect to an External Audio Device For audio devices that do not offer an You can connect to your audio devices, Optical output, please follow the set up e.g. CD player, to enjoy purely music, via below. -
Page 11: Connect To A Bluetooth Device
Connections Connect to a Bluetooth Device Tip to connect to a second device: If a connection already exists, press and You can listen to music from a Bluetooth- hold “PAIR” button on the remote control enable device via this player. on top of the speaker for 3 seconds. -
Page 12: Basic Operations
Basic Operation RCA/LINE IN When an audio signal is applied to the Either, RCA or LINE-IN inputs, the unit will turn on 1) Press RCA/LINE IN button on the remote automatically after 5 seconds. Make sure control; or the input audio sound is at an intermediate button on the unit will allow you volume level to trigger the auto-on function. -
Page 13: Mute Sound
Basic Operation Mute Sound Program Smart Remote Control to Control TV Press the MUTE button on the remote You can store a total of up to seven of control to mute. Press this button again or your most frequently used TV functions in VOL+/VOL- buttons on the remote control the TV learning zone of the Smart Remote or on the unit to resume the sound. -
Page 14: Troubleshooting
Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting assistance. Warranty may be void if the case is opened. Symptom Likely Cause What to do No sound Speaker not connected to active... -
Page 15: Specifications
General Power Requirements ................AC 0- 20V~50/60Hz Output Power: Front Speakers ......................10W x 4 Woofer ..........................30W Total Harmonic Distortion ..................1%(1kHz, Audio Input Sensitivity/Impedance LINE: ............600mV/47kΩ Frequency Response ....................40Hz - 20kHz Unit Dimensions (W x H x D) ..................28 x 2 x 13.5in NET Weight ..........................7.5Lbs. -
Page 16: Maxell Warranty
Maxell Warranty Maxell warrants this product to be free from all defects for a period of one (1) year from the date of original purchase. This Warranty does not apply to normal wear or damage due to accident, abnormal use, misuse or neglect. This Warranty only applies to personal and individual use of this product and not for commercial, institutional or any other use. -
Page 17: Fcc Compliance
FCC & IC Compliance FCCID: Z8M-SSB-3WB This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
