DHK Hobby HUNTER 8135 User Instruction Manual

1/10 rtr 4x4 sc truck
Hide thumbs Also See for HUNTER 8135:
Table of Contents

Advertisement

Quick Links

用户使 用 说明书
#
Model :8135
1/10 Scale 4WD Brushed Short Course Truck

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HUNTER 8135 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHK Hobby HUNTER 8135

Summary of Contents for DHK Hobby HUNTER 8135

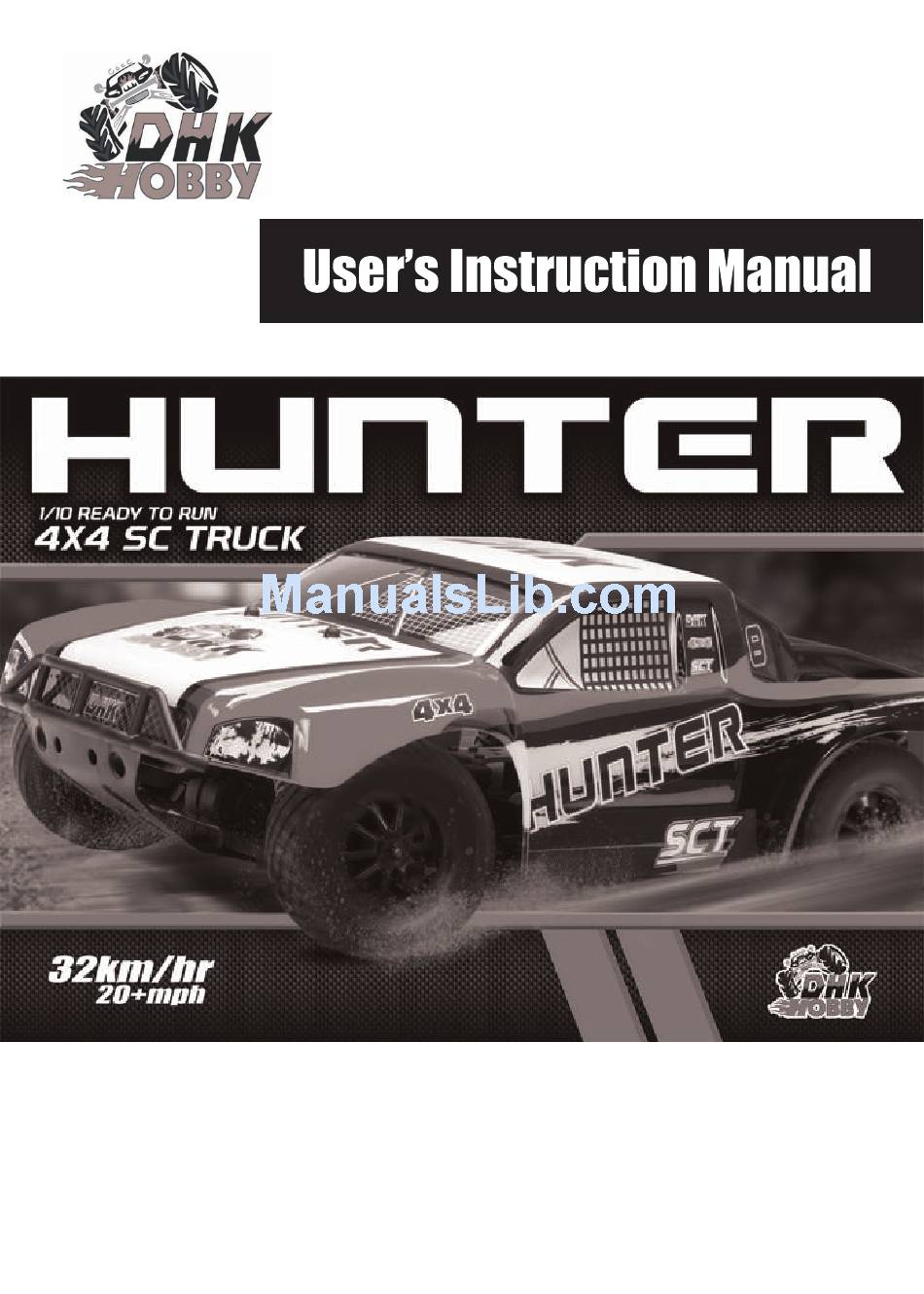

  • Page 1 用户使 用 说明书 Model :8135 1/10 Scale 4WD Brushed Short Course Truck...
  • Page 2 Failure to do so might shorten the lifespan of your model. You are cordially advised that DHK Hobby makes all necessary parts and accessories to support you for any problem during and after your driving.
  • Page 3 Model specifications : 572mm (22.5 in) Overall length : 306mm (12.0 in) (Excluding body) Width : 153mm (6.02 in)(Excluding body) Height : 330mm (13 in) Wheelbase : 30mm (1.2 in) Ground clearance : 6.0lbs/2.70kgs(Excluding transmitter) Weight (net) : 258mm/258mm (10.2 in/10.2 in) Front track/rear track : Φ108*45mm (Φ4.3*1.8 in) Tire diameter/width...

  • Page 4: Specifications

    Over voltage protection: Yes Compatible with 550 motor: 10T-23T (Preferably with 15T motor) Dimension: 34*34*15.2mm Operations 1>Plug in battery wire, Red pin is positive pole, Black pin is negative pole. Connecting to standard DC plug is also fine. 2>Switch on the power, there comes alarming sound if no signal is sent. The alarming sound stops when signal is sent out.
  • Page 5 Skipping Needles Matrix for detail. This matrix provides clear information for operation. Skipping Needles Matrix Needles placement and corresponding functions Needles Functions ① ② ③ 1, 2 Forward, brake, reverse ④ ⑤ ⑥ 2, 3 Forward, brake, no reverse Lipo battery 3, 4 NiMh battery 5, 6...
  • Page 6 Terminology Electronic speed controller (ESC) An electronic circuit with the purpose to vary an electric motor's speed, its direction and possibly also to act as a dynamic brake. ESCs are often used on electrically-powered radio controlled models. An ESC can be a stand-alone unit which plugs into the receiver's throttle control channel or incorporated into the receiver itself, as is the case in most toy-grade R/C vehicles.

  • Page 7: Parts List

    RC servos are usually powered by the receiver which in turn is powered by battery packs or an Electronic speed controller (ESC) with an integrated or a separate Battery eliminator circuit (BEC) Common battery packs are either NiCd, NiMH or Lithium-ion polymer battery (LiPo) type. Voltage ratings vary, but most receivers are operated at 5V or 6V.
  • Page 8 Parts List Number Desc Number Desc Wheel axle (2 pcs) Ball bearing(dia 6mm * dia 12*4mm) 8135-701 8381-710 (2 pcs) Steering arm (2 pcs) 8135-702 C-hub (2 pcs) Hex adapter (4 pcs) 8381-714 8135-703 Shock tower (2 pcs) Set screws-M4 (4 pcs) 8381-717 8135-704 Pivot ball mount (4 pcs)
  • Page 15 8381-206 Center diff gear box/ 8381-207 B head screw-coarse center diff gear box plate thread(BB3*20mm) (16 pcs) 8381-208 Center outdrive set 8131-301 Shock spring (4pcs)
  • Page 16 8381-602 Servo saver bushing/ 8381-604 Servo saver sus. Arm- adjustment ring upper/lower/steering sus. Arm 8381-605 B head screw-coarse thread(BB3*12mm) (16 pcs) 8381-608 Shaft (2 pcs) 8381-606 Screw bushing (16 pcs) 8381-717 Shock tower (2 pcs)
  • Page 17 8382-703 Body post holder/body post 8381-807 Pin-A(dia 8381-803 B head screw 8381-805 B head screw 8131-9M2 Motor gear-18T/ 1.5mm) (16 pcs) (BM3*18mm) (16 pcs) (BM3*10mm) (16 pcs) Lock nut(M3*3) 8381-9Z0 Assembly of 8131-9S2 B head screw steering tie rod 8381-9S1 Servo mount (BM2.6*6mm) (12 pcs) 8381-008 Antenna tube (3 pcs) 8381-9Z1 Steering tie rod (2 pcs)
  • Page 18 8381-009 Pin-B 8381-011 Flathead screw 8381-012 Flathead screw-coarse (dia 1.2mm) (16 pcs) 8381-010 Screw washer (KM3X10mm) (16 pcs) thread(KB3*10mm) (16 pcs) 8381-024 Flathead screw 8133-100 Assembly of (KM4X11.5mm) (12 pcs) diff gear box 8381-016 Upper deck-A 8381-017 Upper deck-B 8135-001 Tire complete 8133-101 Diff set 8133-102 Crown gear-41T (large) 8133-103 Assembly of the...
  • Page 19 8135-203 Spur gear-53T 8135-301 Shock absorber 8135-600 Servo saver assembly 8135-202 Differential lock (plastic) (2 pcs) complete (2 pcs) -complete 8135-601 Steering plate 8135-701 Wheel axle (2 pcs) 8135-702 Steering arm (2 pcs) 8135-703 Hex adapter (4 pcs) 8135-705 Front bumper/upper 8135-801 Rear bumper/upper 8135-704 Set screws-M4 (4 pcs) sus.arm mount-front...

  • Page 20: Optional Parts

    Optional Parts 8381-404 Set screws (M3*3mm) (8 pcs) 8381-716 Set screws (M4*10mm) (16 pcs)
  • Page 22 Parts Diagrams Receiver Functions Frequency range : 2.4GHz 2.4GHz modulation : AFHDS Sensitivity : -100dbm Working voltage : DC4.8-6.0V Working current Size : 5.7*26*15.2mm Weight : 11.2g...
  • Page 23 Parts Diagrams...
  • Page 24 LCD Functions and Operations Key Operations Display Interface BATT: battery status, function reset settings MOD: Setting up mode and naming...
  • Page 27 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
