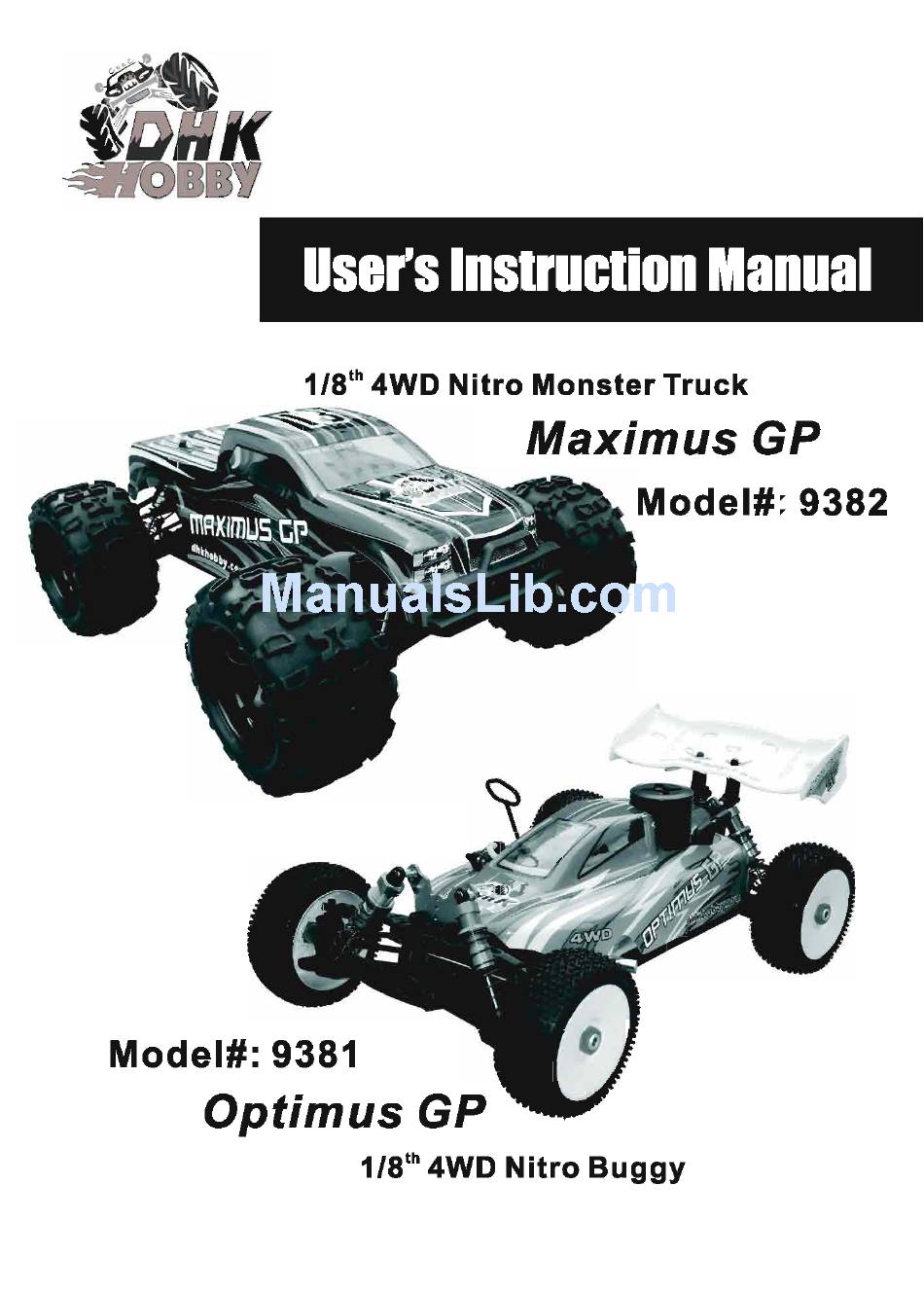

DHK Hobby Maximus GP 9382 User Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maximus GP 9382 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DHK Hobby Maximus GP 9382

Summary of Contents for DHK Hobby Maximus GP 9382

  • Page 2 This high performance model can run very fast. This model and the 2.4GHz transmitters (Standard and LCD versions) are designed and produced for people of 14+ years of age to operate. Players under that age should be guided by adult supervision. Entry level players should seek guidance and supervision from experienced model players.
  • Page 3 Optimus GP Maximus GP Length : 19.4in (493mm) : 19.57 " (49 7mm) Width : 12.1in (307mm) : 15.32 " (38 9mm) Height : 6.76in (172mm) : 7.13" (181 mm, no t includ ing b ody) Wheelbase : 12.98in (330mm) : 12.98 "...
  • Page 8 Part# Desc Part# Desc 8381-100 Assembly of diff gear box 9381-201 Central diff set(With plastic gear 45T) 9381-20P Central diff set (With metal gear 45T) 8381-101 Diff set 9381-202 Center diff outdrive 8381-102 Diff outdrive/pins (Ø2*10mm) Center diff gear box/center diff gear box 8381-103 Pins (Ø2*10mm) (16 pcs) 9381-203 cover...
  • Page 9 Part# Desc Part# Desc 8381-401 Anti-roll bar rod end (8 pcs) 8381-718 Pivot ball mount (4 pcs) 8381-402 Anti-roll bar linkage (4 pcs) 8381-719 Upper sus.arm shaft (4 pcs) Anti-roll bar pivot ball-upper/low er (4 8381-721 Low er sus.arm plate-front 8381-403 sets) 8381-723 C-hub screw bushing (16 pcs)
  • Page 10 Parts that are specifically for Maximus GP Part# Desc 9381-9T2 Fuel tank spring (2 pcs) Part# Desc 9381-9T3 Fuel tank fixture 9382-9E1 Engine gear-13T 8381-9Z0 Assembly of steering tie rod 8384-701 Hex adapter/M12 17mm nut 8381-9Z1 Steering tie rod (2 pcs) 8382-702 Bumper/upper sus.
  • Page 11 PULL STARTER ASSEMBLY ITEM NO DESCRIPTION A PARTS-4 + B21C RECOIL START UNIT ASSEMBLY B001A FRONT BALL BEARING, 7x19x6 PLASTIC A PARTS ASSEMBLY W/ B002 REAR BALL BEARING, 14x24x6 A PARTS-4 4PCS SCREWS BR2101-1 BURN ROOM(UNDERHEAD) B PARTS ASSEMBLY W/ 4PCS B21C SCREWS CH2104...

  • Page 25: Safety Precautions

    Upgrade parts Annex: 2.4GHz Transmitter Manual Safety Precautions 1. The 2.4GHz transmitter and receiver are pre-bound at the factory. 2. Please always use the same receiver model from the factory to match your 2.4GHz transmitter when you need to replace it. Receivers from other suppliers don't work on DHK HOBBY 2.4GHz transmitter.
  • Page 29 LCD Functions and Operations Key Operations Menu keys: Press Left key (<) to main command, and Right key (>) for secondary command. DATA keys: Press Left key (+) or Right key (-) to adjust, set up and auto save the current chosen function.
  • Page 30 REV: Servo forward and reverse setup Setting up Steering servo direction. Press MENU function Left key (<) or Right key (>) (Press once under MAIN MENU) until you see” ***REV-ST”, then press DATA function Left key (+) or Right key (-) to choose ON/OFF. (Screen shows OFF REV-ST).
  • Page 31 D/R: Servo angle adjustment setup Set up Steering servo (ST) angle. Press Menu function Left key (<) (Press 3 times on MAIN MENU) until you see **% D/R ST on the screen, then press DATA function Left key (+) or Right key (-) to choose servo angle parameter.
  • Page 32 ABS: Setting up brake system Set up throttle ABS brake system. Press MENU function Left key (<) (Press 5 times under MAIN MENU), screen shows *** ABS- TH, press DATA function Left key (+) or Right key (-) to choose ON/OFF. At ON status, it prevents the tires from getting stuck in powerful griping motion during brake.
