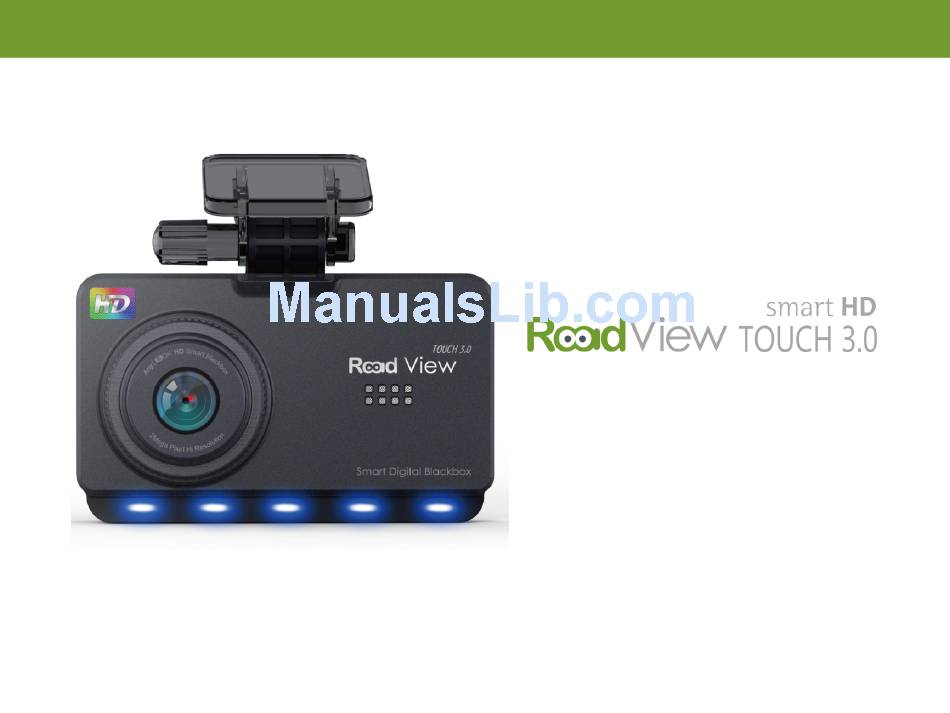

- Page 1 RV-330LC ※ Safety precautions included in this manual are intended to ensure your safety and prevent property damage. Read them carefully before using the product. ※ The product's functions and design features may change without prior notice for quality and functionality improvement purposes.
- Page 2 Precautions Proper Product Use ☞ Whenever you change the mounting position of the product, adjust the camera angle and check the video recording to ensure accurate video capturing. ☞ Excessively dark window tinting can hinder normal video recording. ☞ Use the power cable provided by the manufacturer to ensure normal functionality. ☞...
- Page 3 Accessories After unpacking the product, check inside and make sure all accessories are included. (Refer to images below) If the product or any of its accessories is damaged or defective, please contact your retailer. (Actual components may differ from the images below.) Constant Power Cable Cigarette Jack Cable...
-
Page 4: Product Overview
Product Overview External GPS Antenna Connector Main Unit Power Cable Connector Rear Camera Connector micro SD Card Slot Speaker Security LED Flashes repeatedly as a s ecurity feature. Built-In Microphone Power/Manual Recording Button Press and hold to turn the power on/off. Short press to start manual recording. -
Page 5: Inserting And Removing Micro Sd Card
Inserting and Removing Micro SD Card Inserting Micro SD Card Open the micro SD slot cover and insert the micro SD card as shown in the diagram. Failure to insert the card properly can damage the card, cause it to malfunction, or corrupt the data the card contains. Removing Micro SD Card Power off the device, open the micro SD slot cover, and gently press down on the card to eject it. -
Page 6: Installation
Installation 1/3 of Vertical Space Distant Area ¾ = Dynamic Area 2/3 of Vertical Space ¼ = Fixed Area [Correct Installation Angle] [Screen Ratio: Correct Installation Angle] 2/3 of Vertical Space Distant Area 1/3 of Vertical Space Dynamic Area [Incorrect Installation Angle] [Screen Ratio: Incorrect Installation Angle]... -
Page 7: Product Use
Product Use [Front/Rear Preview] ② ① ∙ Tap ① to bring up the menu. The screen automatically reverts to recording mode after 10 seconds of inactivity. ∙ Tap ② to flip between front and rear camera feeds. Caution) If a micro SD card has not been inserted, the screen will not turn on. Instead, the black box will repeatedly ask you to Check the micro SD card. - Page 8 Menu Menu ① Infinite/Parking Mode Selection ② Video Recording Playback ① ② ③ Volume Adjustment (0 - 5) ④ Settings ⑤ ⑥ ⑤ Parking Mode Event Count ⑥ GPS Status ⑦ ⑦ Software Version ⑧ Time & Date ⑧ ③ ④...
- Page 9 Settings_Video & Channel Video ∙ Choose the desired picture quality (High, Medium, Low). ∙ "High" produces the best picture quality at the cost of recording capacity, whereas "Low" increases the recording capacity at the cost of picture quality. ∙ Once the recording capacity of each type of recording data is reached, oldest data is overwritten with new data.
- Page 10 Settings_Sensitivity & LCD Off Sensitivity ∙ Sensitivity can be set to Off, Low, Normal 1, Normal 2, Normal 3, High, or Very High. ∙ Impact registration above the specified sensitivity setting while the vehicle is on the move or parked triggers event recording. Caution) ∙...
- Page 11 Settings_Parking Mode & Clock Parking Mode ∙ Configure Parking Mode and Switchover settings. ∙ Parking Mode can be set to Parking Infinite or Parking Event. ∙ Switchover can be set to Off, 5 mins, 15 mins, or 30 mins. ∙ If the ignition is turned off while the system is in Infinite mode, the system will automatically switch over to Parking Mode if no vehicle motion is detected for the specified duration of time.
- Page 12 Settings_Reset & Format Reset [Default Settings] ∙ Video: High ∙ Channel: Front/Rear ∙ Sensitivity: Normal 2 ∙ LCD Off: Always On ∙ Parking Mode: Parking Event ∙ Switchover: 5 mins ∙ Timer: 12H ∙ Shutoff Voltage: 11.9V ∙ Microphone: On ∙...
- Page 13 Settings_Timer & Shutoff Voltage Timer ∙ Timer can be set to 6H, 12H, 24H, or 48H. ∙ While in Parking mode, the black box turns off automatically after the amount of time set under Timer has elapsed. Shutoff Voltage ∙ Shutoff Voltage protects your car's batteries from discharging completely when using them as a source of constant power for the black box.
- Page 14 Settings_Microphone & Calibration Microphone ∙ Turn the built-in microphone on or off. ∙ Set to "Off" if you do not want to have conversations and sounds from inside the cabin to be recorded along with the video. Calibration ∙ Calibrate the black box's LCD screen. ∙...
- Page 15 PC Viewer ∙ PC Viewer lets you watch video recordings from micro SD cards and configure the black box's settings. ∙ Video recordings can be played back using regular media players, but doing so will display the feed from the front camera only. ∙...
- Page 16 Miscellaneous Operating Status MODE LED REC LED Security LED Operating Status (Blue LED) (Red LED) (Security LED) Infinite Recording in progress Flashing Event Recording in progress Flashing Sequential (L/R) flashing at Parking Infinite Recording in progress Flashing 1-second intervals Sequential (L/R) flashing at Parking Event Recording in progress Flashing 0.2-second intervals...
- Page 17 Miscellaneous Recording Resolutions Recording Resolutions Recording Destination Mode Condition Status Folder Front Rear Camera Camera Infinite Infinite INFINITE Infinite Mode (1280*720) G-Sensor Event EVENT Infinite Parking Infinite PARKING (720*480) (640*480) Parking Mode G-Sensor Parking Event EVENT Motion Parking Event PARKING Detection (1280*720) Power / Manual Recording...
-
Page 18: Product Warranty
- Defects caused by other extraneous factors - Purchase of accessories and parts - Defects caused by unauthorized disassembly of the product 1. Product (Model): In-Vehicle Black Box (RV-330LC) 2. Retailer: 3. Manufacturer/Country of Origin: SD System Co., Ltd./Republic of Korea... - Page 19 The SDsystem Lineup...
- Page 20 SD System Co., Ltd Customer Service Center +82-70-8299-5989 613, Hyundai I Valley, 31, 244 Beon-Gil, Galmachi-Ro, Jungwon-Gu, Seongnam-Si, Gyeonggi-Do, Korea www.sdsystem.com...
