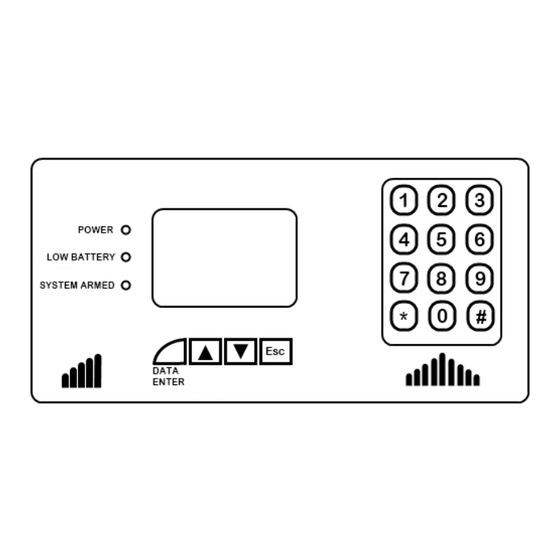

Model Number: THP401
PHONE-ALERT™ AUTOMATIC PHONE-OUT MONITORING SYSTEM
OWNER'S MANUAL
Product Description: This monitoring system is intended to monitor homes, cabins, vacant
properties and other premises for power outage, low temperature conditions and the presence of
water. The THP401 is designed to automatically call up to four telephone numbers when an alert
condition occurs, it will continue to place phone calls until someone answers and responds with a
code or until the alert condition no longer exists. Sensors for the power outage and low temperature
are housed inside the THP401, while the water sensor cable can connect to a jack on the side of the
device.
The THP401 will also accept any sensor that produces a switch closure that can be connected to the
Water Sensor jack. These include door and window open sensors and many other types of intrusion
sensors. Multiple sensors can be connected using a paralleling adaptor.
IMPORTANT: This monitoring system must be located where it has access to an active Touch
Tone™ telephone line and a 120-Volt electrical outlet. Read and thoroughly understand the
instructions and warranty prior to installation. It's necessary to test this system after installation to
confirm it is compatible with the telephone line and the telephone numbers that will be called. This
monitoring system is an outgoing telephone device only and will not respond to or interfere with
incoming telephone calls.

Parts List

:
THP401 Base Unit
3-Foot Phone Cord
Plastic Wall Anchors (2)
Wall Anchor Screws (2)
Water Sensor (Wired- Optional)
Built-in Rechargeable Battery
AC/DC Wall Voltage Adaptor (Power Plug)
1

Advertisement

Table of Contents
loading

Summary of Contents for Reliance Controls THP401

  • Page 1: Parts List

    Sensors for the power outage and low temperature are housed inside the THP401, while the water sensor cable can connect to a jack on the side of the device.

  • Page 2: Quick Start Instructions

    Features  Monitors for power loss and low temperature  Calls up to four programmed telephone numbers when an alert condition occurs  Adjustable low temperature setting  Optional water sensor included, security sensors can be added  Built-in automatic battery backup Quick Start Instructions Installation 1.

  • Page 3: Detailed Instructions

    Cord Connections 1. Find a place to set or mount the base unit: Unpack the THP401 and mount it in a convenient location using the two keyhole slots on the rear of the unit and the wall anchors (included). The THP401 can be placed on a table, the floor, or in other reasonable locations if permanent mounting is not desired.

  • Page 4: Programming Menus

    Programming Programming is done in the “HOME” mode and is very intuitive. Here are the basic controls:  The * (star) key is used for accessing the programming menus. Press and hold this key 3 seconds to begin programming. The “Data Enter” key is used to select a particular programming menu or to save an entry. ...
  • Page 5 Press the Data Enter key to save the setting. This is a time delay for the Water Sensor jack on the THP401, where you either connect a water sensor or other security sensors. The delay is based on initially detecting an alert, and how long it takes after detection before the system begins to make outgoing calls to the programmed telephone numbers.

  • Page 6: Important Programming Notes

    MUST BE IN “HOME” MODE TO PROGRAM: If programming (holding the * star key) is attempted while the THP401 is in AWAY mode, a message will appear that says “Please Disarm”.
  • Page 7 To put the system in HOME mode: hold the # key for three seconds. You will be prompted to enter the Password. Enter your four digit password and press the Data Enter key. The THP401 will return to the main display and HOME is shown on the screen.
  • Page 8 Once an alert is disabled, before the THP401 will monitor and place phone calls for that alert, the system needs to be changed back into HOME mode and then again into AWAY mode. Someone must be at the THP401 to do this.
  • Page 9 Security sensors that produce a switch closure can also be connected to the “Water Sensor” jack on the THP401. Any sensor connected to this jack must have a “normally open” switch. The alert will be activated when the switch is closed.

  • Page 10: Telephone Network Information

    It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. If this equipment, Model THP401, causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible.

  • Page 11: Fcc Declaration Of Conformity

    Reliance will accept warranty returns for repair or replacement within the terms of the above warranty. All units deemed out of warranty will be repaired at prevailing charges. All products being returned to Reliance Controls must have an RGA (Return Goods Authorization) number. To request an RGA number, call Reliance Controls customer service at (800) 439- 5745.
