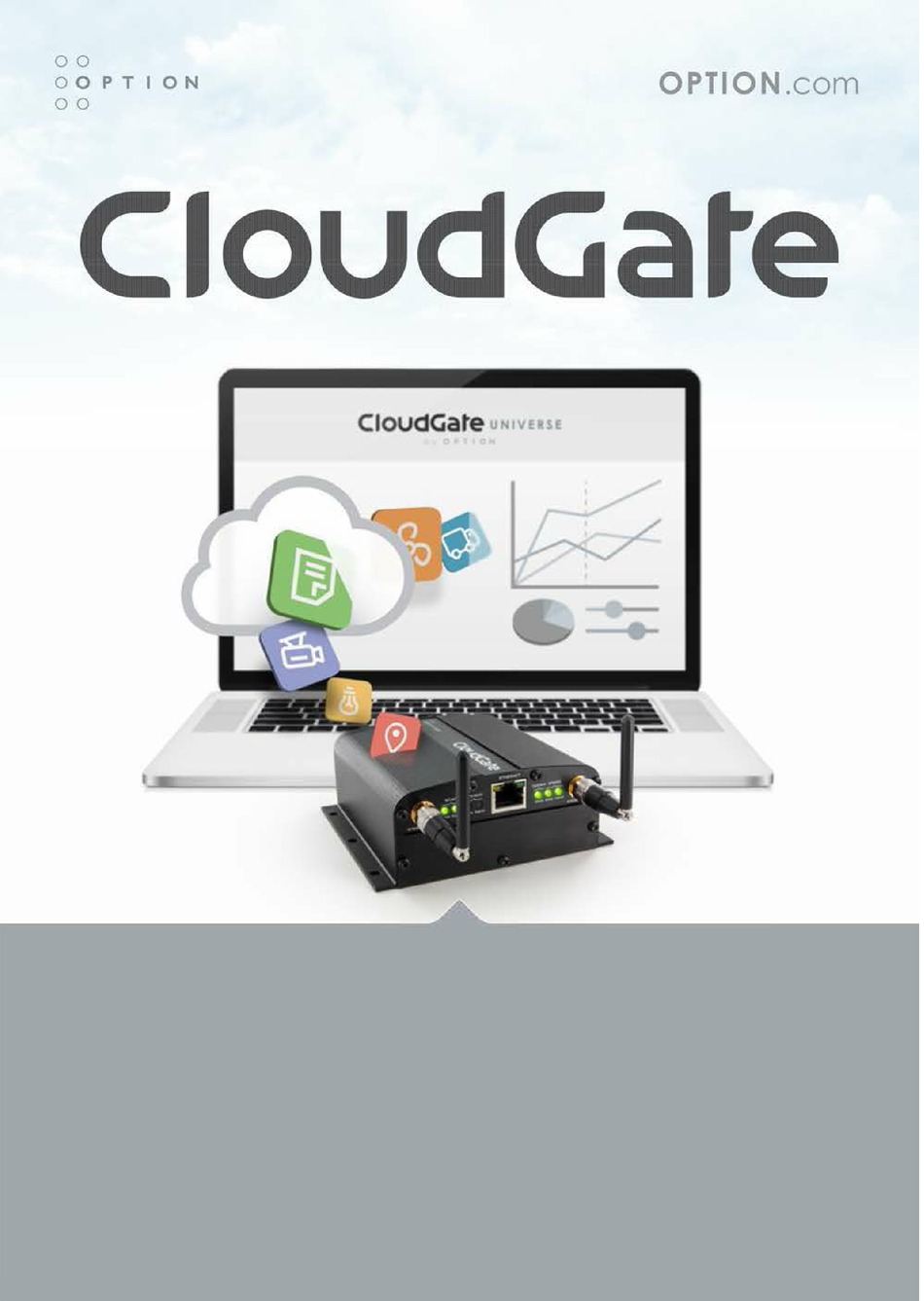

  • Page 1 User guide CloudGate Ethernet (CG0102)
  • Page 2: Table Of Contents

    Table Of Content 1. CloudGate Ethernet (CG0102) ..................... 3 1.1. Main Board ......................... 5 1.2. Front and back view ......................7 1.3. LED indicators ........................10 1.4. Ethernet Interface ......................12 1.5. Power Requirements ......................14 1.5.1. Internal Power Circuits ....................
  • Page 3: Cloudgate Ethernet (Cg0102)

    CloudGate Ethernet Model: CG0102 Last updated on 08/07/2016 The CloudGate Ethernet is an M2M gateway providing internet connectivity. The base unit is designed around a main board. It's main features are listed in the table below: Feature Description Ethernet 10/100Mb/s RJ45 Connector (IEEE 802.3)
  • Page 4 A datasheet of the CloudGate Ethernet can be found here. The CloudGate Ethernet has two expansion card slots that allow to insert a variety of expansion cards.
  • Page 5: Main Board

    1.8.1. Main Board The CloudGate Ethernet is designed around a main board. The processor on the main board controls all the interfaces. The CloudGate also has two expansion board connectors to allow insertion of dedicated expansion cards. The block diagram shows the overview. Main Board Block Diagram (PDF) Power Input V_PWR: min 9V DC, max 33V DC...
  • Page 6 GPIO signals Serial interface Secondary Expansion Card Slot The secondary expansion card slot is located at the back side of the CloudGate. It has the following interfaces: Power supply: V_PWR, 3V4, 3V3 24 Mhz clock signal Master reset signal High speed USB interface SDIO interface GPIO signals...
  • Page 7: Front And Back View

    Front and Back View of CloudGate Ethernet The CloudGate Base Unit is assembled in the top half of the device. The bottom half is available for the insertion of expansion cards. The front and back side of the CloudGate housing are closed by means of metal panels that are secured with Torx T6 screws.
  • Page 8: Back View

    The bottom front panel covers the front expansion slot and has to be removed when installing a Primary Expansion Card. Option provides a custom panel for the following primary expansion cards: Low Cost Serial Card Industrial Serial Card Ethernet Switch Ethernet Switch with PoE Telematics Card Breadboard Card...
  • Page 9 The bottom back panel covers the back expansion slot and has to be removed when installing a Secondary Expansion Card. Option provides a custom panel for the following secondary expansion cards: WLAN Expansion Card WLAN Access Point Card...
  • Page 10: Led Indicators

    LED Indicators on the CloudGate Ethernet Description WLAN State Indicates the connection status of the WLAN interface Off: not installed Orange: WLAN board = OK, client not connected and AP not enabled Orange blinking: AP disabled and Client connected / data traffic Red: board error/ (Any that causes AP or Client not to work)
  • Page 11 Description GPS/Aux signal strength Indicates the signal strength of the GPS Off: no WWAN modem installed System State Indicates successful power on and device readiness Off: no power Orange: booting Red: error Green: Green flashing: WWAN State Indicates WWAN or 3G interface availability and use Off: no WWAN modem installed WWAN Signal Strength...
  • Page 12: Ethernet Interface

    1.8.4. Ethernet Interface This section describes the Ethernet interface on the CloudGate main board. Ethernet Interface RJ-45 receptacle tab on top 10/100 Mbps 100BASE-TX Auto-MDIX Pinout Yellow LED: Active when operating speed is 100 Mbps Inactive when operating speed is 10 Mbps or when not connected Green LED: Active when valid links are detected Blinks when activity is detected...
  • Page 13 Pin # Function Not used RX/TX- Not used Not used IMPORTANT: The auto-MDIX feature is always activated on the CloudGate. This feature automatically detects the required cable connection type (straight or crossed), and configures the connection appropriately, removing the need for crossover cables. In order for auto-MDIX to work correctly, auto-negotiation (auto speed and auto duplex) must be enabled on both sides of the link.
  • Page 14: Power Requirements

    1.8.5. Power Requirements Base Unit Power Supply The symbol on the label at the bottom side of the CloudGate shows the power requirements: Input voltage must be between 9V - 33V DC Internal electronic fuse limits the input current to 1.2A For the power cable between the external power supply unit and the CloudGate Option recommends to use a power cable that has a wire thickness of 22 AWG! SAFETY WARNING...
  • Page 15: Power Connector

    Power Connector The power connector is a Micro-Fit connector from Molex (MX-43025-0400) Power Connector Drawing (PDF) Power Connector Datasheet (PDF) Pinout The following drawing shows the pinout of the power connector, seen from the terminal side. Pin # Function Input voltage Not connected Not connected Power Consumption...
  • Page 16 SAFETY WARNING On old CloudGate models, a huge inrush current caused by capacitors inside the CloudGate may cause an internal fuse to break. When using an external power supply with an output voltage higher than 15V, Option recommends using a special cable which will reduce the amplitude of these charge currents.
  • Page 17: Internal Power Circuits

    1.8.5.1. Internal Power Circuits The voltage applied by the power adapter to the CloudGate is converted into different voltage rails on the main board. Two different power circuits make five different voltage rails. Dedicated high current power circuit Provides two different voltage rails which both can deliver high current levels: V_PWR: At the power adapter input of the CloudGate there is an overvoltage protection circuit and a current limiter of 1.2A.
  • Page 18 translators, e.g. output buck between I/O signals converter (3V3, 1V8 from the processor and 1V2). The and circuitery on the maximum output main board or on current capability of the expansion cards each output of the converter is dependent on the loads on the other two outputs.
  • Page 20: Reset Button

    1.8.6. Reset Button On the back side of the unit there is a reset button behind the hole in the top panel (indicated by the "2" in the picture above). This button allows to restart the unit or to reset it to the factory settings: press and hold for less than ten seconds to reset the unit to the last working settings, press and hold for ten seconds or more to reset the unit to factory settings.
  • Page 21: Mechanical Drawings

    1.8.7. Mechanical Drawings of the CloudGate Ethernet 3D file of the CloudGate Ethernet. 3D file of the front plate of the expansion cards As there is no WWAN module inside, there are no RF connectors on the front plate of the CloudGate Ethernet.
  • Page 23 The 6 mounting holes in the CloudGate housing allow mounting on a wall or on a DIN rail. See the details in the "Mounting" section of the CloudGate Installation Guide. Note 1: The front plate for the expansion cards, both at the front and at the back side of the CloudGate, are identical.
  • Page 24: Requirements

    1.8.7.1. IP-65 Requirements Below you can find the parts for the encasing which are needed to fulfill the requirements for IP-65. All these parts can be ordered by TAKACHI: 1x box BCAK 203013G or BCPK 203013S, 1x plate BMP 2030P, 1 x screws (20pcs) MT4-8T, 1x bracket (2x4 pcs) BLF-2G(PC-GF) or CK-26P (metal SS) 3x cable gland MG-12S (3 inputs)
  • Page 26: Environmental Specs

    Environmental Specifications Operating temperature: -30°C to 70°C (*) see Safety Warning below Storage temperature: -40°C to 85°C Humidity operational: 5% - 95% non condensing Operating altitude: up to 2000m Safety Warning When the device is installed in a location where the environmental temperature can rise above 60°C, the temperature of the surface might reach high values and therefore under these conditions the user needs to warned in order to prevent accidental contact.
  • Page 27: Shock Resistance

    1.8.9. Shock Resistance The next tests have been performed on the CloudGate and passed: • EUT state: operational • Frequency range: 10 … 2000Hz • Overall acceleration: 3.6Grms • Crest Factor: 3 • Orientation: 3 axis, X / Y / Z •...
  • Page 28: Certifications & Approvals

    Certification information for CloudGate Ethernet Model: CG0102 This page offers an overview of the country certifications and operator approvals obtained per region. This CloudGate model is approved for use in the countries listed below. For use in other countries, please consult your sales contact.
  • Page 29 appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. European Economic Area The CloudGate Ethernet complies with the essential requirements of the EMC directive 2014/30/EU and the Low Voltage directive 2014/35/EU issued by the Commission of the...
  • Page 30: United States

    Turkey The CloudGate Ethernet carries the CE mark and can be used in Turkey. United States The CloudGate Ethernet can be used in the USA and complies with the applicable FCC rule parts. The CloudGate Ethernet can be used in Class I Div 2 Hazardous Locations. Click here for conditions for use.
  • Page 31: Hazardous Locations

    Class I Div 2 Hazardous Locations Model: CG0102 Expansion card models CG2101, CG1102, CG1106, CG3102 This page offers information on using your CloudGate product in Class I Div 2 Hazardous Locations in the countries listed below. For use in other countries, please consult your sales contact.
