ATP Instrumentation LX-1309 Manual

Ⅰ

Introduction


The digital illuminance meter is a precision instrument used to measure illuminance (Lux, footcandle)

It meets CIE photopic spectral response.

The illuminance meter is compact, tough and easy to handle due to its construction.

The light sensitive component used in the meter is a very stable, long-life silicon photo diode and spectral response
filter.
Ⅱ

Features


Light measuring levels ranging from: 0.1Lux~0.1kLux/0.01FC~0.01kFC.

High accuracy and rapid response.

Data-hold function for holding measuring values.

Unit and sign display for easy reading.

Automatic zeroing.

Meter corrected for spectral relative efficiency.

Correction factor need not be manually calculated for non-standard light sources.
 Short rise and fall times.

Peak-hold function for tracing the peak signal of light.

Capable of selecting measuring mode in Lux or FC scale.

Auto power off 30 minutes.

Maximum and minimum measurements.

Relative reading.

Easy to read large backlit display

USB output connect with pc

Auto ranging
Ⅲ

Specifications


Display: 3-3/4digit LCD screen with high speed 40segment bar graph.

Measuring Range: x400.0 Lux4000 Lux,40.00 KLux and 400.0 KLux /40.00 FC,400.0 FC,4000 FC,40.00 KFC.
NOTE: 1FC=10.76Lux,1 KLux=1000Lux,1KFC=1000FC

Over range Display: LCD will show "OL" symbol.
Accuracy: ±5% rdg±10d (<10,000Lux)

±10% rdg±10d (>10,000Lux)
Repeatability: ±3%


Sampling Rate: 1.5 times/sec of analog bar-graph indication; 1.5times/sec of digital display.

Photo Detector: One silicon photo diode and spectral response filter.

Operating temperature & Humidity: 0C to 40C (32F to 104F) & 0% to 80% RH.

Storage Temperature & Humidity: -10C to 50C (14F to 140F) & 0% to 70% RH.

Power Source: 1 9V battery.

Photo detector: Lead Length: 150cm (approx.)

Photo detector Dimensions: 115L×60W×20H(mm)

Meter Dimensions: 170L×80W×40H

Weight: 390g.

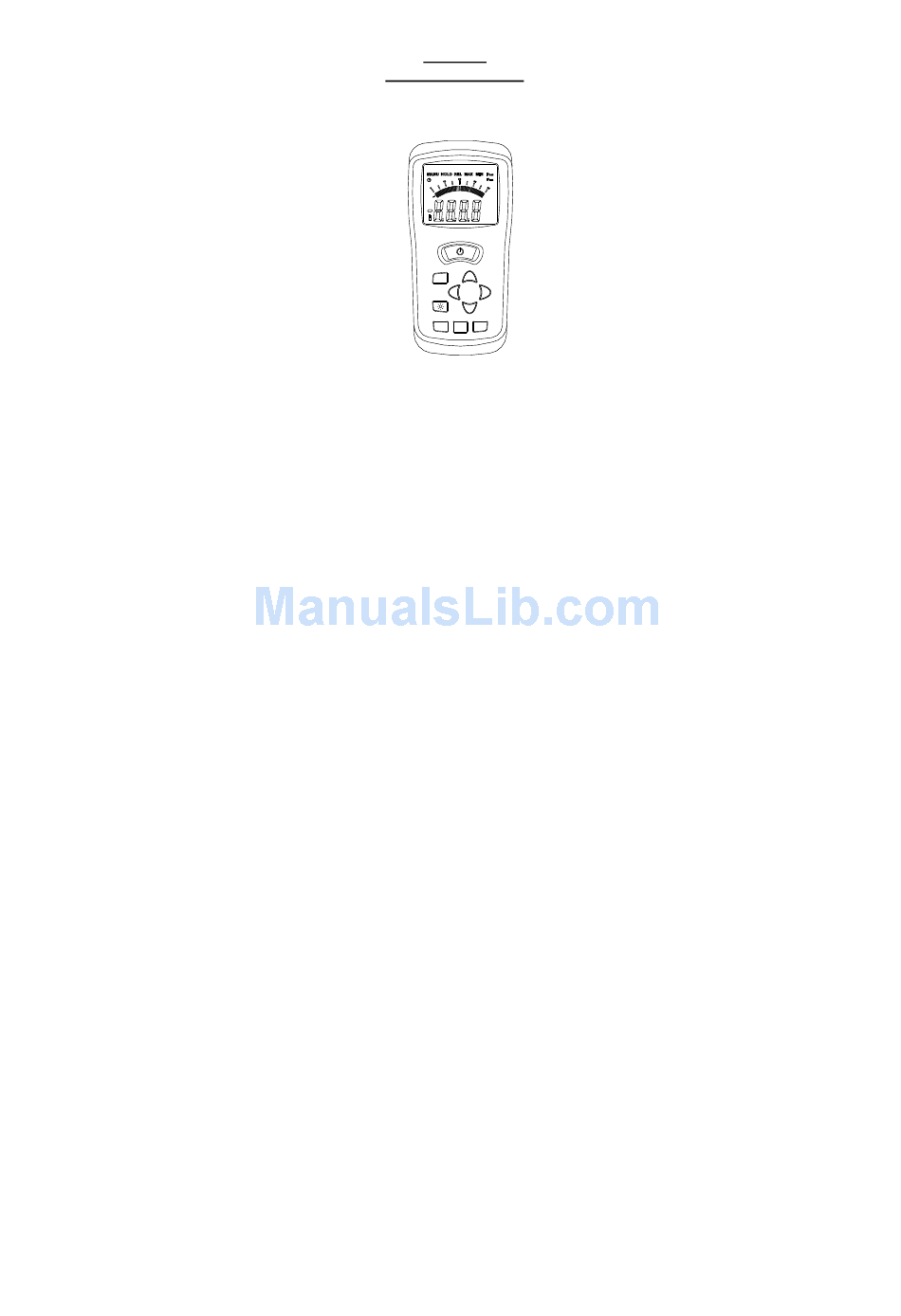

LX-1309
Lux Meter Manual
APO
kLux
4 3 2 1
1
kFc
2
BAT
A uto Ranging Light Meter
w ith RS232
MAX
DISABLE
M I N
A PO
REL HOL D
HOL D
BACK-
LIGHT
Fc Lux
RS232
