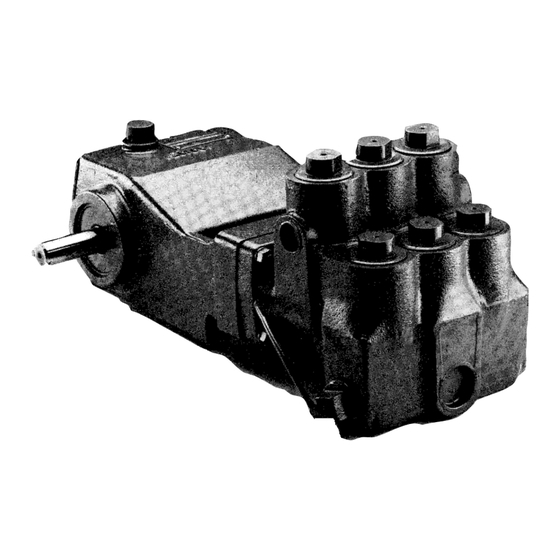

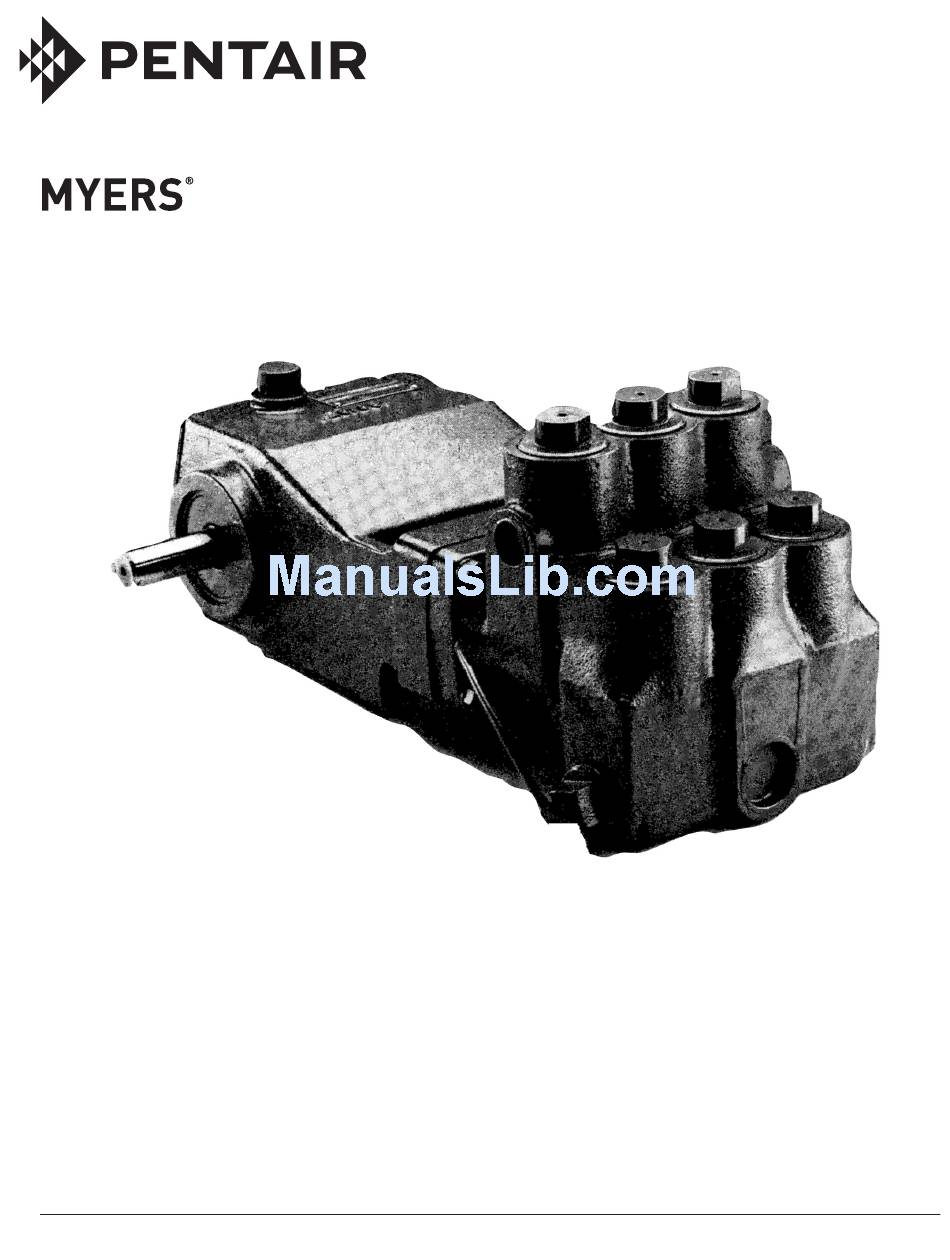

- Page 1 INSTRUCTIONS AND SERVICE MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A134 | © 2017 Pentair Ltd. | 06/30/17...
-
Page 2: California Proposition 65 Warning
Reciprocating pumps of both the plunger and piston When pumping liquids that are heated, reduce type are positive displacement in principle. Due to pump speed to avoid suction problems. Consult positive displacement characteristics, problems may “Myers Reciprocating Pump Manual” or factory for arise through improper installation or application. -
Page 3: Starting Pump
STARTING PUMP face of pump and turning crankshaft over 4 or 5 times, or the fluid end can be removed to completely drain cylinders and fluid end. Read all instructions carefully. Fill pump crankcase with recommended oil to the level mark on oil saber. SERVICE Oil recommendations are covered in the lubrication section of pump instructions. - Page 4 and eye protection. If exposed, flush exposed area pushed toward the water end as far as possible. with water. Consult a physician for treatment of Before removal, be sure to note the markings on muriatic acid burns. Clean bore and lubricate O-rings the connecting links and caps.
- Page 5 RECONDITIONING CRANKSHAFTS When crank pins are slightly damaged, they can sometimes be reconditioned for further use. This can be done with emery cloth and polishing until all ridges are completely removed. The final polishing operation should be performed by using a very fine emery cloth. This procedure can only be followed where the amount of sanding does not reduce the normal diameter of the crank pin.
- Page 6 CXP Series Industrial Pumps Parts 23833A134 06/30/17...
- Page 7 CXP Series Industrial Pumps Parts List Power End Parts (All 7 Models) Item Description Qty. Eng. No. Item Description Qty. Eng. No. Cover 19324A000 O-Ring 05876A035 Oil Gauge 20360A000 Bearing Cap (Shaft Drive) 18452A000 O-Ring 05876A074 Hydraulic Adapter 26368B000 Crankcase (Shaft Drive) 19313E001 Pipe Plug 05022A009...
- Page 8 CX10-15 & CX20-10 CX10-15 AVAB & CX20-10 AVAB Industrial Pumps Parts List Catalog Number of Industrial Pumps Catalog Number of Industrial Pumps CX10-15 CX20-10 CX10-15 CX20-10 (w/ceramic liners) (w/ceramic liners) Item Description Qty. Eng. No. Eng. No. Item Description Qty. Eng.
-
Page 9: Troubleshooting
THE PUMP MUST BE INSTALLED WITH A PRESSURE RELIEF VALVE IN DISCHARGE LINE TROUBLESHOOTING Pump fails to build pressure with discharge closed Failure to hold pressure with discharge open Pump is noisy Pump gets hot Pressure gauge shows abnormal fluctuation Regulator chatter POSSIBLE CAUSE OF PROBLEM 1. - Page 10 5. If the pressure regulator unloading valve is worn, it time to heat the oil and other working parts, will not will allow too much of the pump capacity to be normally accumulate water by condensation. Replace bypassed and recirculated back to the tank. By the plunger cups as soon as they start to leak.
- Page 11 18. Noisy pump operation can be caused by a loose plunger rod in the crosshead. This noise usually has a regular cadence timed with each stroke of the plunger. When this occurs, always replace both the rod and the crosshead. 19.
- Page 12 (f) if unit is used for purposes other than for what it is designed and manufactured; (g) to any unit that has been repaired or altered by anyone other than Pentair Myers or an authorized Pentair Myers service provider;...
