USER GUIDE
Water Purifier

Advertisement

Table of Contents
loading

Related Manuals for A.O. Smith Z1

Summary of Contents for A.O. Smith Z1

  • Page 1 Water Purifier U V P U R I F I E D W A T E R E X P E R T S E R V I C E 1800-103-2468 / 1860-500-2468 +91 99410 32468 (Send SMS) or aosmithcs@aosmithindia.com Monday to Friday: 9 am to 8 pm.
  • Page 3 Dear Customer, Congratulations and welcome to A. O. Smith family. We thank you for the trust you have shown in choosing the A. O. Smith water purifier. A. O. Smith water purifier is one of the most advanced RO water purifier available in the market today.

  • Page 4: Table Of Contents

    Contents Key Features of your A. O. Smith water purifier ..........01 Pre-instruction literature ..................02 General instructions ....................03 Introduction ......................04 Product overview ..................... 06 Function of indicators ....................07 Water flow ....................... 09 Electrical diagram..................... 09 Safety precautions....................10 How to use.......................

  • Page 5: Key Features Of Your A. O. Smith Water Purifier

    Key Features of your A. O. Smith water purifier PURITY THROUGH UV PURIFICATION In A. O. Smith water purifier water passes through Pre-filter + Sediment filter + Silver Activated Post Carbon + UV Lamp + UFSS (Ultra Fine Stainless Steel) (For Hot water only). ADVANCED UV LAMP (ULTRA VIOLET LAMP) UV is a proven Non-chemical, disinfectant technology to give you healthy water.

  • Page 6: Pre-Instruction Literature

    Pre-instruction Literature On Receipt It is our policy to promote safe delivery of all orders. This product shipment has been thoroughly checked, packed and quality certified before leaving our plant. Visible Loss or Damage If any of the goods called for on the bill of lading or express receipt are damaged or the quantity is short, do not accept them until the freight or express delivery agent makes an appropriate notation on your freight bill or receipt.

  • Page 7: General Instructions

    General Instructions Safety Your safety and the safety of your loved ones is paramount to us. There are several safety related messages in this manual, which have been provided during various stages such as installation, operation and maintenance of your A. O. Smith water purifier.

  • Page 8: Introduction

    (DNA) of viruses, bacteria and cysts so they cannot reproduce and are thereby considered inactivated. The A.O. Smith water purifier incorporating UV purification technology produces germ-free potable water for drinking. Purified water is collected for drinking in a storage tank.
  • Page 9 Figure 1 Ball valve Pre-filter Note: The Pre-filter and the Ball valve comes along with the product as standard accessories.

  • Page 10: Product Overview

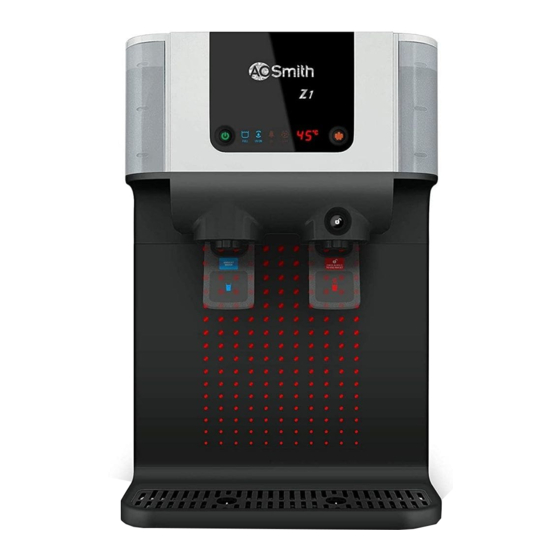

    Product Overview Figure 2 Front View Top Cover LED Display Panel Indicators Water Level Indicator Water Level Indicator Child Lock Button Normal Water Faucet Hot Water Faucet Faucet Lever Main Body Hot Tank Front Cover Drip Tray Cover Removable Drip Tray Back View Rear Cover Feed water inlet...

  • Page 11: Function Of Indicators

    Function of indicators Power Button This button is used to switch ON/OFF the water purifier. continuous beep till it is fixed. button starts to blink continuously with beep sound for 10 seconds till the water pressure becomes normal. Note: Call A. O. Smith Customer care centre if you notice continuous blinking of Power light. Tank full indicator This indicates that the water purifier tank is full.
  • Page 12 SCPA change indicator This indicates that the Sediment filter and/or Silver Activated Post Carbon needs to be replaced. replace Sediment filter and/or Silver Activated Post Carbon. indicator will start to blink continuously and the unit will not function until Sediment filter and/or Silver Activated Post Carbon are/is replaced.

  • Page 13: Water Flow

    Water flow Figure 3 Inlet Solenoid Pressure valve Switch Ball Valve Tap water Inlet water Pre-filter Sediment Silver 3-way joint filter Activated Post Carbon Storage Level 1 Flow Tank Sensor Regulator Level 2 Sensor Tank Faucet Faucet Lamp Check valve UFSS Filter Electrical diagram...

  • Page 14: Safety Precautions

    Safety Precautions Electrical safety Even though this product is designed keeping highest safety standards in mind, there are certain Do’s and Don’ts which need to be followed while using this product. Power plug must be used with a Do not pull out or touch power plug with grounded 230V outlet.
  • Page 15 Product should be installed only by Do not connect hot water to the product. A. O. Smith Company authorised service (Figure 10) technician. Do not open the purifier for Figure 10 cleaning the filters or for any part replacements. This must be done only by A.

  • Page 16: How To Use

    How to use 1. Turn ON the water connection 2. Switch ON the power supply and through the ball valve. press the power button of the purifier. (Figure 13) (Figure 14) Figure 14 Figure 13 To dispense normal water 1. To dispense normal water from 2.
  • Page 17 Setting to Warm/Hot water temperature. This purifier is capable of dispensing at two temperature choices warm water (45°C) and hot water (80°C). Setting to warm water temperature Setting to hot water temperature (45°C) (80°C) 1. Press the water heating button 1.
  • Page 18 To dispense hot water 1. Press the child lock button once, to 2. To dispense water continuously, lift unlock the hot water faucet. up the hot water faucet lever first, then press the child lock button While pressing the child lock button dispense hot water.

  • Page 19: Draining Drip Tray

    Draining Drip Tray We have provided removable Drip Tray with the product. In case there is slippage of water, it gets collected in Drip Tray. Remove the Drip Tray assembly by pulling Remove Drip Tray cover by pulling upward forward. (Figure 21) and then drain completely.

  • Page 20: How To Maintain Your Product

    How to maintain your product Do not splash water directly or clean with Replace filters regularly according to the benzene, pesticides, thinner, alcohol, etc. replacement indications. This must be but use a soft, dry cloth to clean the done only by A. O. Smith Company purifier.

  • Page 21: Troubleshooting

    Troubleshooting Your A. O. Smith water purifier may not function at its desired capability if used incorrectly. This may not necessarily mean that the product is faulty. For instances like these, please follow the steps given below to troubleshoot the problem without the help from a certified technician.
  • Page 22 Buzzer beeps and Water level sensor error. Switch OFF the water tank full LED blinks purifier and call Customer continuously. care centre. Buzzer beeps and Inlet solenoid valve alarm Switch OFF the water tank full +power LED is triggered indicating that purifier and call Customer blinks continuously.
  • Page 23 Buzzer beeps for 10 times UV change alarm is Switch OFF the water and UV change LED blinks triggered indicating that purifier and call Customer continuously. the UV lamp needs to be care centre for UV lamp replaced and the water replacement.
  • Page 24 Error Messages and Actions Error Code/Error Description Unit Response Solution E1 (Element Buzzer beeps for 10 Call Customer care centre. connection seconds and hot water fault) supply has been stopped. E2 (High Buzzer beeps for 10 Call Customer care centre. Temperature seconds and hot water Alarm)

  • Page 25: Technical Specifications

    Technical Specifications Model A. O. Smith Product Dimensions (H x D x W) 482mm x 369mm x 326mm Net weight 7.65 kgs (approx.) Gross weight 11.70 kgs (approx.) Storage tank capacity 9.2 litres (approx.) Storage tank capacity (Hot tank) 0.8 litres (approx.) Purification technology UV Technology 5 Stage Purifying Technology...

  • Page 26: Faqs

    FAQs What is Ultraviolet (UV) sterilization? Ultraviolet (UV) is a proven purification method uses UV rays to ensure bacteria-free water. The Ultraviolet energy attacks the genetic code of the microorganism and re-arranges their DNA / RNA ensuring inability to function and reproduce.
  • Page 27 What is the nature of indication for the change in filter / UV lamp? On the first intimation when the filter / UV lamp filter / UV lamp filter / UV lamp life consumption, the glowing will be replaced with blinking of the respective indicator. What is the digital display in A.
  • Page 28 Warranty Terms and Conditions Product warranty A. O. Smith India Water Products Private Limited (“A. O. Smith or Company”) warrants this water purifier (“product”) against the defects arising from faulty design, workmanship and material subject to the following terms and conditions: 1.

  • Page 29: Warranty Terms And Conditions

    8. While A. O. Smith will make reasonable efforts to carry out repairs/replacement of parts under warranty within reasonable time, it is expressly made clear that A. O. Smith shall not be responsible to complete the said services within any specified period of time.
  • Page 30 15. Warranty does not cover to any accessories provided by dealer or purchased by customer. 16. Warranty does not cover; a. Plastic, cosmetic parts and exterior finish. b. Consumable parts such as filters and UV lamp. If defect or fault is caused or occurred due to improper installation by the customer or not installed as per A.
  • Page 31 17. All implied warranties and conditions under law, trade, custom or otherwise are excluded and the warranty and remedies as provided hereinabove are in lieu of all other warranties and remedies to the extent permissible under law. 18. NOTWITHSTANDING ANYTHING ELSE TO THE CONTRARY, THIS IS CUSTOMERS SOLE AND EXCLUSIVE WARRANTY.
  • Page 32 Post Warranty 1. The customer may be offered a yearly Service Contract (PHCP*) at the prevailing Company rates and terms. 2. In case the customer does not wish to enter the Service Contract, customer has the option of calling our Authorised service provider and get A. O. Smith Water Purifier unit serviced on actual basis i.e.

  • Page 33: Warranty Card

    Warranty Card Customer Copy to be retained by the Customer Invoice Number: ______________________________ Dated: _________________________ Unit Serial Number: __________________________________ Model: _________________________ Capacity: ______________________ Customer's Name: _______________________________________________ Address: ____________________________________________________________________________ ____________________________________________________________________________________ Dealer’s Stamp and Signature Phone: ________________________ Mobile: ________________________ E-mail: ________________________ Company Copy to be sent back to the Company Invoice Number: ______________________________ Dated: _________________________ Unit Serial Number: __________________________________...

  • Page 34: Service And Maintenance

    Service and Maintenance For Service needs: Please contact our A. O. Smith Customer Care Number : 1800-103-2468 / 1860-500-2468. SMS us : +91 99410 32468 E-mail us : aosmithcs@aosmithindia.com Registered Office A. O. Smith India Water Products Private Limited (formerly known as A. O. Smith India Water Heating Private Limited) Plot No.

  • Page 35: Disclaimer

    Disclaimer Disclaimer Power of 1 is limited to: 1. Available in selected cities, for details log on to www.aosmithindia.com or call at 1800-103-2468 / 1860-500-2468. 2. Calls registered with A. O. Smith Customer Care Centre on working days before 4 pm. 3.
