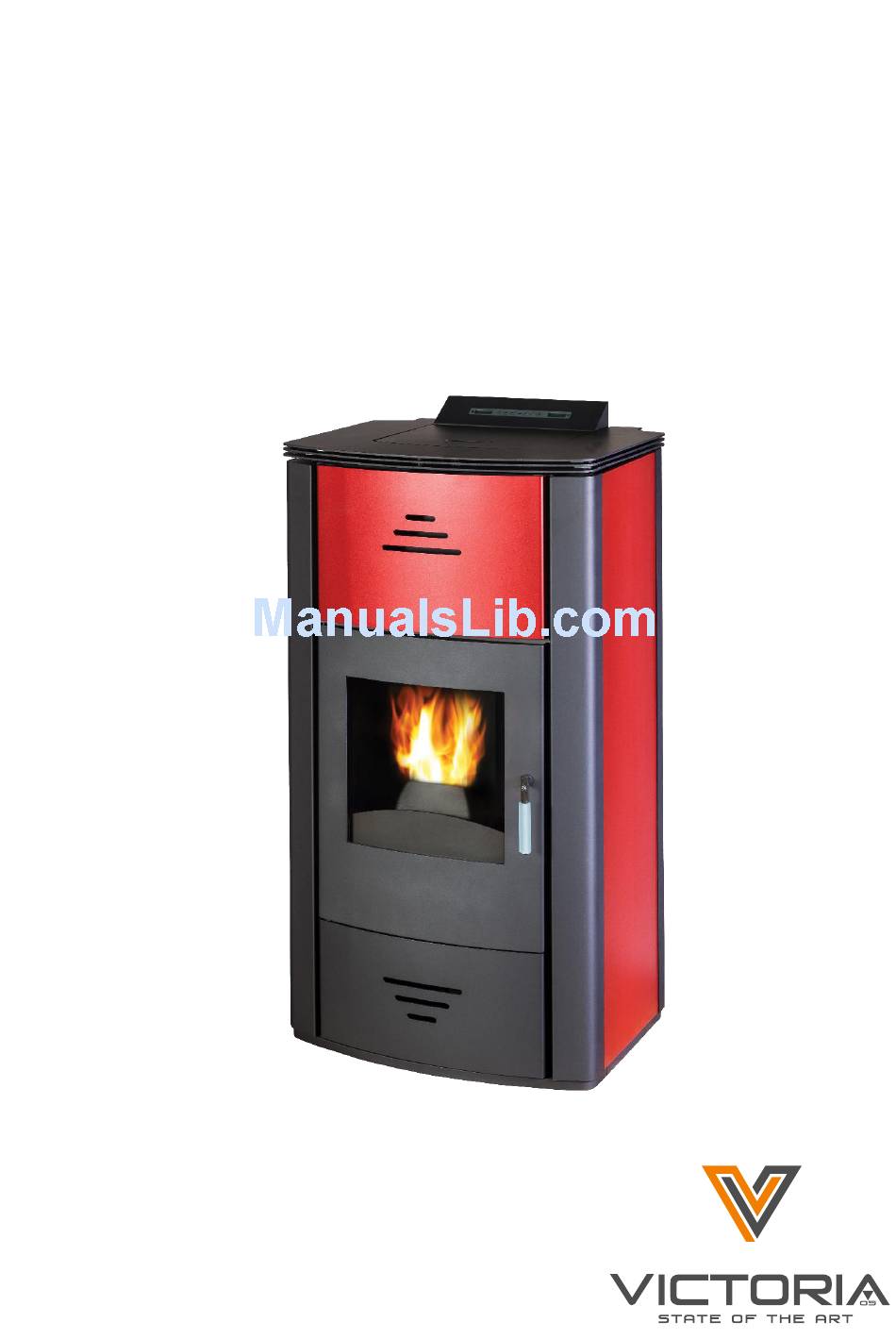

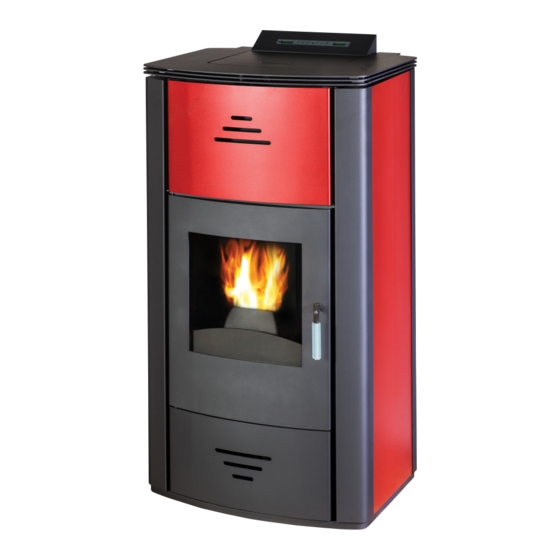

- Page 1 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В*...
-
Page 2: Table Of Contents
Victoria-05 Ltd. CONTENTS INTRODUCTION................................... 3 SAFETY INFORMATION................................ 3 TECHNICAL DATA AND DIMENSIONS........................... 4 SAFETY DEVICES.................................. 5 ELECTRICAL WIRING DIAGRAM............................6 COMPONENTS..................................6 OPERATING MODE................................7 FUEL....................................8 APPLIANCE INSTALLATION..............................8 10. APPLIANCE OPERATION...............................11 10.1. -
Page 3: Introduction
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* 1. Introduction. We congratulate you on the excellent choice! Do not leave this instruction manual unread. Installation and operation of a pellet stove associated with various legal obligations, which are explained in this instruction manual. According to the laws and regulations for safe use of appliances of this class, the purchaser and user of the pellet stove undertake using this instruction manual to inform themselves for the assembling and the right operation of the appliance. -
Page 4: Technical Data And Dimensions
Victoria-05 Ltd. 3. Technical data and dimensions. Fig.1. А - Air inlet Ø 50 mm F - Cold water inlet G ¾“ В - Socket RS 232 G - Hot water outlet G ¾“ С - Flue socket Ø 80 mm H - Outlet pipe G ½“... -
Page 5: Safety Devices
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* at reduced heat output 0.0512 % Flue gases temperature ° at nominal heat output С ° at reduced heat output С Flue gases mass at nominal heat output 12.23 gr/s at reduced heat output 8.46 gr/s... -
Page 6: Electrical Wiring Diagram
Victoria-05 Ltd. 5. Electrical wiring diagram. Diagram 1 ° 1. Control of fume extractor electric motor 9. Thermostat (with manual reset, 90 С) 2. Air inlet sensor 10. Gear motor 3. Thermoregulator (sensor for temperature of hot water) 11. Circulation pump 4. -
Page 7: Operating Mode
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* Gear motor: Driven auger screw by means of which the pellets are conveyed from the pellet fuel hopper to the combustion chamber. Circulation pump: Provides forced circulation of the fluid in the heating system. Closed expansion vessel: Compensate for differences in the volume of liquid in the integral boiler of the pellet stove when heated. -
Page 8: Fuel
Victoria-05 Ltd. system is placed in front of the upper panel of the pellet stove (G) in Figure 2. Through the control panel can visualize and manage all stages of the operation of the pellet stove. 8. Fuel. Pellet stove e designed and programmed to burn wood pellets. They have a cylindrical shape and they are made of compressed by a high-pressure timber, without adhesive and additive materials. - Page 9 10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* Fresh air opening: Imperative to ensure submission of fresh air! The room, in which is mounted pellet stove must have an opening for fresh air with a cross section of not less than 80 cm² in order to ensure a sufficient supply of oxygen necessary for combustion.
- Page 10 Victoria-05 Ltd. Pellet stove MUST NEVER OPERATE without liquid in the heating system and under pressure less than 1 bar. Failure to comply with these conditions leads to damage! INSTALATION DIAGRAM Integrated Hydraulic Components Recommended Hydraulic Diagram Control System 1. Pellet stove with integral boiler 9.
-
Page 11: Appliance Operation
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* Circulation pump The circulation pump is with a high efficiency for water heating systems with an integrated control of differential pressure. Control modes: Variable differential pressure (∆р-v) Set value of differential pressure H varies within the acceptable range of flow between Н... -
Page 12: Cold Test
Victoria-05 Ltd. 4. Button decrease in programming mode. 5. Button reserve hopper. Press once when the pellet stove hopper is loaded with 15 kg pellets to save. In this way, the system monitors the remaining amount of pellets in the pellet fuel hopper kg. -
Page 13: Wood Pellet Refueling
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* rest of wood pellets in kg -15, 14, 13, etc. For each loading of the hopper should change the amount of charged wood pellets. For example, when you load 15 kg, click on "reserve" to save it. For other quantities or in case of error, you can specify the quantity using the menu: - Press (MENU) for 2 sec., while display shows "Language"... -
Page 14: Maintenance
Victoria-05 Ltd. - Prog. No 3 (three ignitions and three shutdowns per day) Use the buttons to see them in reverse order. If you choose the first program, there will show the time of ignition. The display shows the following: one hour of ignition 10.30; Use the buttons (+) / (-) to change the time and press button (MENU) to confirm. -
Page 15: Cleaning Ash From The Flue Channels
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* 12.3. Cleaning ash from the flue channels. Vigorously shake the cleaning elements by the handle (Figure 6) when the pellet stove is not working and it is cold. Open the left and right manholes (Figure 10 and 11) and clean with a vacuum cleaner accumulating deposits. - Page 16 Victoria-05 Ltd. Possible reasons for blocking: indication and decision. 1. H2O PTC_FAULT: shutdown due to sensor temperature of the water. Damaged or disconnected. Check the connection of the sensor with the electronic control system. Check the operation of the sensor with "cold test".
-
Page 17: Checklist
10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* 12. The control panel is off: check the power supply. Check the fuse. Check the ribbon cable. 13. Water is not hot enough: Clean the integral boiler. 14. CHECKLIST. Location and installation: Ventilation of the room;... - Page 18 Victoria-05 Ltd. May you clean the pellet fuel hopper with a vacuum cleaner? Yes, at least once a month or if the pellet stove has not worked for a long time. Can you use other types of fuel than wood pellets? NO.
- Page 19 10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В*...
- Page 20 Victoria-05 Ltd.
- Page 21 10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* SPARE PARTS CATALOGUE № Denomination Gear motor for auger Fume extractor ST25, aluminum volute Ø150, encoder (set) Auger (set) Closed expansion vessel Ignition Thermostat Electronic control system (set) Control panel Circulation pump Glass 4 x 340 x 339-0.5, R805...
- Page 22 Failing that provided, the claim is not accepted as valid and the buyer pays repair. On the territory of Bulgaria the term of the removal of the claim is up to three (3) days for settlements in which Victoria-05 Ltd.
- Page 23 10.2016 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В* DIARY for repairs under warranty № Company Receipt date Type of repair Delivery date Carried out...
- Page 24 Victoria-05 Ltd. 61A Anton Strashimirov Str. 5100 Gorna Oryahovitsa Republic of Bulgaria phone: +359 618 60282 fax: +359 618 60200 e-mail: info@v05.bg http://www.v05.bg...
