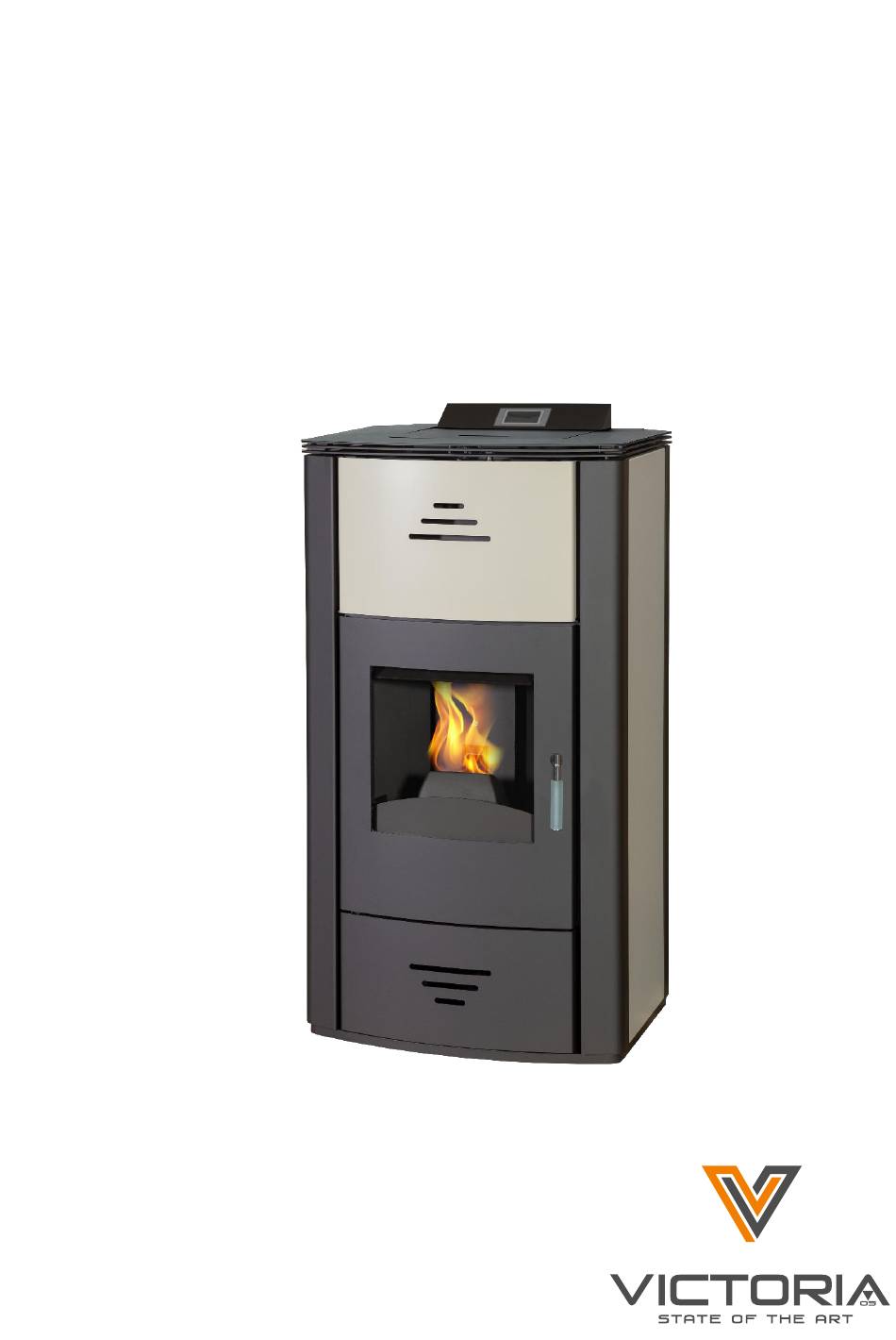

- Page 1 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA В*...
-
Page 2: Table Of Contents
Victoria-05 Ltd. CONTENTS INTRODUCTION................................... 3 SAFETY INFORMATION................................ 3 TECHNICAL DATA AND DIMENSIONS........................... 4 SAFETY DEVICES.................................. 6 CONTROL SYSTEM................................6 COMPONENTS..................................7 OPERATING MODE................................7 FUEL....................................8 APPLIANCE INSTALLATION..............................8 10.APPLIANCE OPERATION................................11 10.1. -
Page 3: Introduction
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* 1. Introduction. We congratulate you on the excellent choice! Do not leave this instruction manual unread. Installation and operation of a pellet stove associated with various legal obligations, which are explained in this instruction manual. According to the laws and regulations for safe use of appliances of this class, the purchaser and user of the pellet stove undertake using this instruction manual to inform themselves for the assembling and the right operation of the appliance. -
Page 4: Technical Data And Dimensions
Victoria-05 Ltd. Removed pellets from the combustion chamber should not be placed back in the pellet fuel hopper! 3. Technical data and dimensions. Fig.1. А - Air inlet Ø 50 mm F - Hot water outlet G ¾“ В - Flue socket Ø 80 mm G - Outlet pipe G ½“... - Page 5 Technical data and performance Technical data Performance Nominal heat output 18.27 kW Space heating output 2.16 kW Water heating output 16.11 kW Reduced heat output 9.79 kW Operating water pressure 1.5 bar Test water pressure at installation 3.0 bar ° Maximum operating temperature С...
-
Page 6: Safety Devices

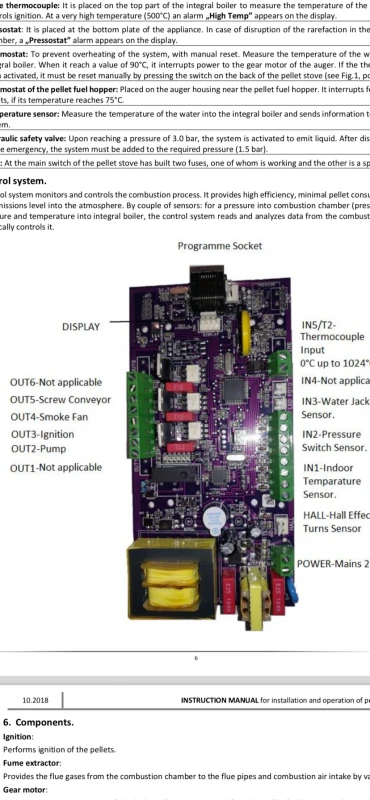

Victoria-05 Ltd. 4. Safety devices. Fume thermocouple: It is placed on the top part of the integral boiler to measure the temperature of the flue gases. It controls ignition. At a very high temperature (500°C) an alarm „High Temp” appears on the display. -
Page 7: Components
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* 6. Components. Ignition: Performs ignition of the pellets. Fume extractor: Provides the flue gases from the combustion chamber to the flue pipes and combustion air intake by vacuum. Gear motor: Drives auger screw by means of which the pellets are conveyed from the pellet fuel hopper to the combustion chamber. -
Page 8: Fuel
Victoria-05 Ltd. The ash from the combustion process is conducted in an ashtray underneath the combustion chamber. The ashtray must be periodically cleaned by pouring in a metal container or by a vacuum cleaner, but only when the pellet stove is cold. - Page 9 02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* Safe distances for fire safety: When installing a pellet stove and storage of wood pellets, there must be respected with the fire requirements! It is recommended that an appropriate place to mount a fire extinguisher. It is forbidden to store the wood pellets directly to the pellet stove or a distance of less than 400 mm.
- Page 10 Victoria-05 Ltd. А -Insulated metal chimney. В – minimum height of the vertical section 1.5 m, as the end of the chimney has to be completed in accordance with Fig. 5 С -Incoming outside air through the section with minimum cross section of 80 сm Е...
-
Page 11: Appliance Operation
Before ignition, check: power, door seal, if the combustion chamber is cleaned and whether the display is switched to standby mode. 10.2. Control panel description. After start up, on the control display is shown the logo of Victoria-05 for 3 seconds and then switches to main user panel. The icons and functions are shown as follows:... -
Page 12: Main User Control Panel
Victoria-05 Ltd. 10.2.1. Main user control panel. To visualize every function from the display it is necessary to touch the respective icon. The blue arrow in the sub menu is for returning to the previous screen. By pressing SAVE all corrections are saved. The left and right arrows are for decreasing and increasing the value of the respective parameter. -
Page 13: Main Menu
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* 10.2.3.Main menu. „Air Correction”, „Pellets Correction” parameters what is set is the percentage smoke fan power lag in operation modes and pause (rest) during the operation of the screw conveyor! This can be set within the range of - 15% up to +15% for both parameters! „Power Limit”... - Page 14 Victoria-05 Ltd. In the Information Section one can supervise the operation of the sensors, to check the operation mode, etc. Smoke Gases indicates the Chamber Temperature. Water Heater indicates the Water-heater Water Temperature. Indoor Temperature indicates the temperature in the room.
-
Page 15: Installer Settings
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* Meaning that through the hours from 22:00 to 23:00 it will not operate. The arrows would change the day of the week and can set new operation times of the boiler. The display can be locked in two ways. -
Page 16: Service Technician Settings
Victoria-05 Ltd. 10.2.5. Service technician settings. Types of settings for service technician (entered with Factory Parameter service technician password) settings Temperature On Here one can set the Water Temperature, which the pump switches on at. ° Hysteresis(2°C ÷10 This is the thermal lag at which the pump will stop operating. -
Page 17: Instruction Manual
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* 11.Instruction manual. 11.1. Wood pellets loading. The capacity of the pellet fuel hopper is 26 kg. The opening for charging the hopper is with dimensions 150 х 320 mm. If the hopper is left without pellets, the pellet stove will stop working and „Fire extinct“... -
Page 18: Maintenance
Victoria-05 Ltd. Switching among these is based on the temperature, preset as water heater temperature. - if the water heater temperature is set to 50°С. - in the Modulation 5 Menu / the Thermal Difference one should set is 4°С... -
Page 19: Weekly Cleaning
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* Vacuum the combustion chamber and all contact edges; Clean the glass when it is cold. If necessary, use appropriate detergent. Never suck vacuuming hot coals, because this may damage it! 12.2. - Page 20 Victoria-05 Ltd. In case of failure: - To restart the pellet stove is necessary to wait shutdown procedure is complete. The duration is 10 minutes. Accompanied with an acoustic signal; - Do not switch on again the pellet stove before you check and, if necessary, remove the cause of the damage and before you clean the combustion chamber.
-
Page 21: Checklist
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* Activated timer Red color:the timer is activated and waiting for the set time to stop the stove. Activated timer Green color:the timer is activated and waiting for the set time to start the stove. -
Page 22: Spare Parts Catalogue
Victoria-05 Ltd. Yes, to updated combustion air. Fume extractor pulls air from the room to the combustion chamber. What settings does the control panel of pellet stove need? Setting the desired room temperature and the temperature of the liquid into the heating system. Pellet stove will regulate their power to that temperature. - Page 23 02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В*...
- Page 24 Victoria-05 Ltd.
- Page 25 5100 Gorna Oryahovitsa Republic of Bulgaria Phone: +359 618 60282 E-mail: info@v05.bg http://www.v05.bg 2. Supplier's model identifier. Pellet stove VITTORIA B* 3. Energy efficiency class. А++ 4. Direct heat output 2.1 kW 5. Indirect heat output. 16.1 kW 6. Energy efficiency index.
-
Page 26: Warranty Conditions
Failing that provided, the claim is not accepted as valid and the buyer pays repair. On the territory of Bulgaria the term of the removal of the claim is up to three (3) days for settlements in which Victoria-05 Ltd. -
Page 27: Diary
02.2020 INSTRUCTION MANUAL for installation and operation of pellet stoveVITTORIA В* DIARY for repairs under warranty № Company Receipt date Type of repair Delivery date Carried out... - Page 28 Victoria-05 Ltd. 1BIvan Momchilov Str. 5100 Gorna Oryahovitsa Republic of Bulgaria phone: +359 618 60282 E-mail:info@v05.bg http://www.v05.bg...
