Summary of Contents for Victoria VITTORIA 8

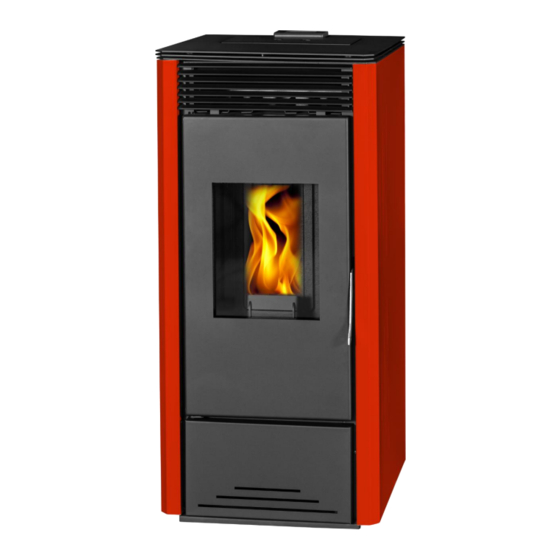

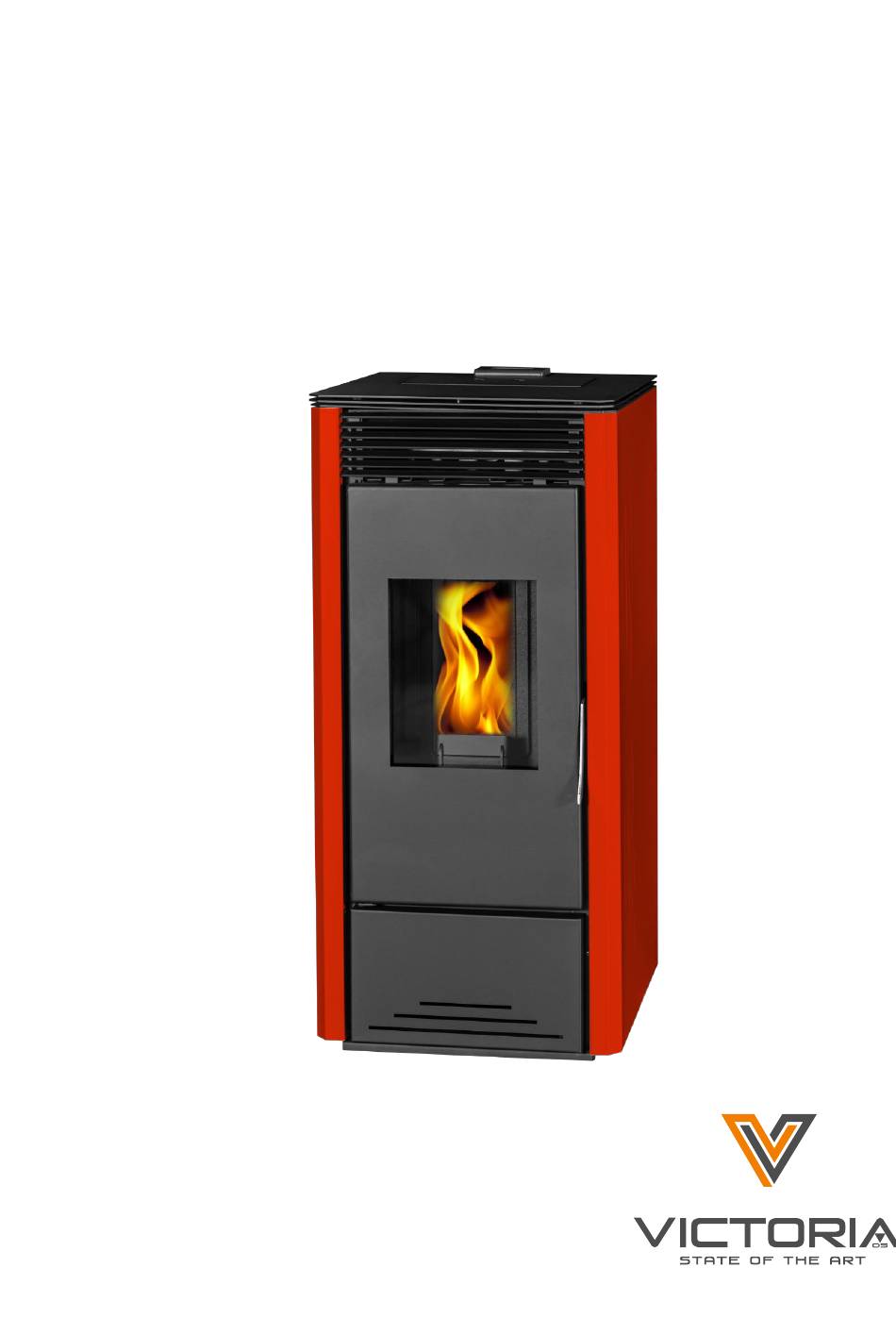

- Page 1 INSTRUCTION MANUAL for installation and operation of air pellet stove VITTORIA 8...
-
Page 2: Table Of Contents
Victoria-05 Ltd. CONTENTS 1. INTRODUCTION..................................3 2. SAFETY INFORMATION................................3 3.TECHNICAL DATA AND DIMENSIONS............................4 4.SAFETY DEVICES..................................5 5.CONTROL UNIT..................................6 6.COMPONENTS..................................6 7.OPERATING MODE................................... 6 8.FUEL......................................7 9.APPLIANCE INSTALLATION............................... 7 10.APPLIANCE OPERATION. -
Page 3: Introduction
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 1. Introduction. We congratulate you on the excellent choice! Do not leave this instruction manual unread. Installation and operation of a pellet stove associated with various legal obligations, which are explained in this instruction manual. According to the laws and regulations for safe use of appliances of this class, the purchaser and user of the pellet stove undertake using this instruction manual to inform themselves for the assembling and the right operation of the appliance. -
Page 4: Technical Data And Dimensions
Victoria-05 Ltd. 3.Technical data and dimensions. Drawing.1. -
Page 5: Safety Devices
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 Technical data and nominal performance: Technical data Performance parameters: Nominal heat output 6.1 kW Reduced heat output 3.0 kW ° Maximum operating temperature С Distance to adjacent combustible materials... -
Page 6: Control Unit
Victoria-05 Ltd. 5.Control unit. The control unit is equipped with a system for monitoring and controlling of the burning process. It ensures higher efficiency, optimizes the fuel consumption and minimizing the emissions. With sensors for the pressure in the fire chamber and temperature sensors at the flue outlet for the temperature of the flue gasses, the system analyses the collected data from the burning and automatically controls it and optimizes it. -
Page 7: Fuel
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 Picture.2. The ash from the combustion process is conducted in an ashtray(O)underneath the combustion chamber. The ashtray must be periodically cleaned by pouring in a metal container or by a vacuum cleaner, but only when the pellet stove is cold. - Page 8 Victoria-05 Ltd. It is not recommended to install a pellet stove in rooms where there is mounted another heater. If it does, it must be equipped with a separate air duct. Compatibility with other devices: Pellet stove should not be installed in the same room in which there are absorbers and / or devices that reduce ventilation in the room.
-
Page 9: Appliance Operation
Before ignition, check: power, door seal, if the combustion chamber is cleaned and whether the display is switched to standby mode. 10.2. Control panel description After start up, on the control display is shown the logo of Victoria-05 for 3 seconds and then switches to main user panel. The icons and functions are shown as follows: Picture.4. -
Page 10: Main User Control Panel
Victoria-05 Ltd. 10.2.1.Main user control panel. To visualize every function from the display it is necessary to touch the respective icon. The blue arrow in the sub menu is for returning to the previous screen. By pressing SAVE all corrections are saved. The left and right arrows are for decreasing and increasing the value of the respective parameter. -
Page 11: Main Menu
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 10.2.3. Main menu Pellets Correction ± 15% - set the percentage Air Correction displacement of the smoke fan power during the operating modes and the pause (rest) during... - Page 12 Victoria-05 Ltd. Date and time setting. There are four timers available here. Two start and two stop timers. With a button on the right of each timer, the timer is enabled or disabled. Pressing the middle of a timer enters the timer settings.
-
Page 13: Installer Settings
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 10.2.4. Installer settings. Factory settings Types of settings for Installer (entered with installer password) Duration 600 sec. (300÷990) Initial filling 90 sec. (10÷99) 1500 rpm Screw feeding 2,5 sec. (0,1÷15) Screw Cycle 30 sec. -
Page 14: Outs Test
Victoria-05 Ltd. Interim Purge There are 2 parameters to set in the Interim Purge: Period 200 sec. This setting is about how long it will take the (100÷1000) fireplace to launch cumulate residue clean. The time to set should be the sum of the operation of the screw conveyor. - Page 15 03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 When the time is over, the device transfers to Fuel Mode. In this mode there is a countdown as well. The screw conveyor gets active and starts fuelling on impulses within the following period –...
-
Page 16: Maintenance
Victoria-05 Ltd. 12. Maintenance. Disconnect the power supply of the pellet stove before performing any activity Vacuum the combustion chamber before each ignition. If combustion break, do not light a pellet stove again until you have emptied and cleaned the combustion chamber. -
Page 17: Maintenance And Control
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 12.4. Maintenance and control. The chimney, to which is connected the pellet stove must be cleaned once a year. Check that there is a regulatory standard for this in your country. If you do not make periodic inspection and cleaning of chimney, the probability of fire is increased many times. -
Page 18: Check List
Victoria-05 Ltd. 14.Check list. Location and installation: Ventilation of the room; Only the flue outlet of the pellet stove is connected to the chimney; Connecting flues pipes have a horizontal section with a length of 2 m, minimum slope of 3%, not more than two curves at 90°... -
Page 19: Spare Parts Catalogue
03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8 SPARE PARTS CATALOGUE Denomination Denomination № № Gear motor for auger Fire-door (set) Fume extractor ST25, aluminium volute Ø150, Ashtray encoder (set) Auger (set) Grill for hopper Ignition... - Page 20 Victoria-05 Ltd.
- Page 21 03.2021 INSTRUCTION MANUAL for installation and operation of pellet stove VITTORIA 8...
- Page 22 Victoria-05 Ltd.
-
Page 23: Warranty Conditions
Failing that provided, the claim is not accepted as valid and the buyer pays repair. On the territory of Bulgaria the term of the removal of the claim is up to three (3) days for settlements in which Victoria-05 Ltd. -
Page 24: Diary
Victoria-05 Ltd. DIARY for repairs under warranty № Company Receipt date Type of repair Delivery date Carried out Victoria-05 Ltd. 1B Ivan Momchilov Str. 5100 Gorna Oryahovitsa Republic of Bulgaria phone: +359 618 60282 e-mail: info@v05.bg http://www.v05.bg...
