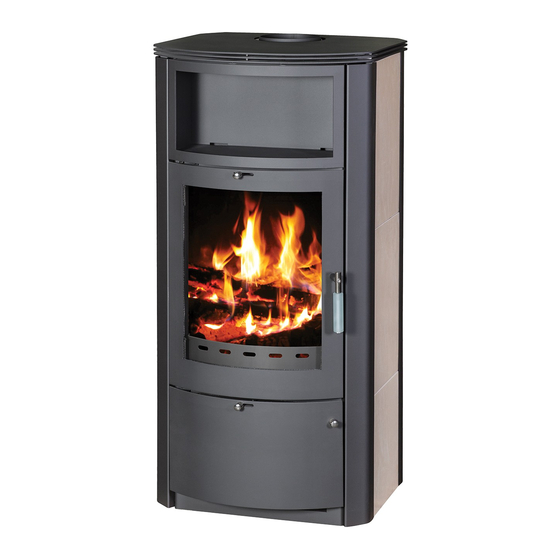

06.2016 INSTRUCTION MANUAL for installation and operation 1. Introduction. We congratulate you on the excellent choice! We wish you many pleasant moments with your new appliance. If your choice is a wood- burning stove, it is produced and tested in accordance with the requirements of the European standard EN 13240. If your choice is a fireplace, it is produced and tested in accordance with the requirements of European standard EN 13229.
Victoria-05 Ltd. Appliance operation 3.1.Fuels. The most appropriate fuels are dry cleaved wood (wood logs) and briquettes. The wood logs, stored in the open under sheds, reach a humidity level of 10%-15% after 2 years, when they are most suitable for combustion. We recommend to burn wood dried as much as possible.
Page 5
06.2016 INSTRUCTION MANUAL for installation and operation Purchased by your side appliance with an integral boiler gives you the great possibility of heating the nearby premises with radiators. Before assembling and the first ignition of the appliance, you should be acquainted with the information given into Appendix №2. An appliance with an integral boiler should be assembled by authorized organization only! Oven You can use your appliance for heating the room and at the same time for warming dishes and baking different pastry products.
Victoria-05 Ltd. 4. Important directions for fire-precaution and safety regulations. The appliance is not designed to be used by children and persons with limited physical, sensuous and mental abilities, or by people with not enough experience and knowledge, except in cases when they are watched and instructed how to work with this type of heater, by someone who is responsible for their own safety.
Page 8
Victoria-05 Ltd. Distance to Dimensions Space Water Fuel Triple value Ma x adjacent (mm) heating heating Effi ci ency mass Weight pres s ure g/s - C° - Pa combustible output output (kg/h) Appliance materials Wood Wood Wood side rear...
Page 9
06.2016 INSTRUCTION MANUAL for installation and operation Distance to Space Water Fuel Dimensions Triple value adjacent heating heating mass (mm) Weight Efficiency combustible pres s ure g/s - C° - Pa output output (kg/h) materials Appliance Wood Wood Wood side rear Wood front...
Page 10
Victoria-05 Ltd. Appendix №2 INSTRUCTION for installation and operation of wood-burning stoves and fireplaces with integral boilers Your appliance with an integral boiler is designed to work in a water heating system under the maximal operation pressure: for “open” system under 1 bar;...
Page 11
06.2016 INSTRUCTION MANUAL for installation and operation INSTALLATION DIAGRAM for connecting of wood-burning stoves and fireplaces with integral boilers type “B*” (close heating system) 1. Appliance 9. Overflow drain system 16. Entry (from water conduit) 2. Hot water exit 10. Collector 17.
Page 12
Victoria-05 Ltd. 61A Anton Strashimirov Str. 5100 Gorna Oryahovitsa Republic of Bulgaria phone: +359 618 60282 fax: +359 618 60200 e-mail: info@v05.bg http://www.v05.bg...
