KAC-12040
4000 (H) x 3000 (V)
CMOS Image Sensor
Description
The KAC−12040 Image Sensor is a high-speed 12 megapixel
CMOS image sensor in a 4/3" optical format based on a 4.7 mm 5T
CMOS platform. The image sensor features very fast frame rate,
excellent NIR sensitivity, and flexible readout modes with multiple
regions of interest (ROI). The readout architecture enables use of 8, 4,
or 2 LVDS output banks for full resolution readout of 70 frames per
second.
Each LVDS output bank consists of up to 8 differential pairs
operating at 160 MHz DDR for a 320 Mbps data rate per pair.
The pixel architecture allows rolling shutter operation for motion
capture with optimized dynamic range or global shutter for precise
still image capture.
Table 1. GENERAL SPECIFICATIONS
Parameter
Architecture
Resolution
Aspect Ratio
Pixel Size
Total Number of Pixels
Number of Effective Pixels
Number of Active Pixels
Active Image Size
Master Clock Input Speed
Maximum Pixel Clock Speed
Number of LVDS Outputs
Number of Output Banks
Frame Rate, 12 Mp
Charge Capacity
Quantum Efficiency
KAC−12040−CBA
KAC−12040−ABA
Read Noise
(at Maximum LVDS Clock)
Dynamic Range
Blooming Suppression
Image Lag
Digital Core Supply
Analog Core Supply
Pixel Supply
Power Consumption
Package
Cover Glass
NOTE: All Parameters are specified at T = 40°C unless otherwise noted.
© Semiconductor Components Industries, LLC, 2016
March, 2016 − Rev. 5
Typical Value
5T Global Shutter CMOS
12 Megapixels
4:3
4.7 mm (H) × 4.7 mm (V)
4224 (H) × 3192 (V)
4016 (H) × 3016 (V)
4000 (H) × 3000 (V)
18.8 mm (H) × 14.1 mm (V)
23.5 mm (Diagonal), 4/3" Optical Format
5 MHz to 50 MHZ
160 MHz DDR LVDS, 320 Mbps
64 Differential Pairs
8, 4, or 2
1−70 fps 10 bits
1−75 fps 8 bits
16,000 electrons
40%, 47%, 45% (470, 540, 620 nm)
53%, 15%, 10% (500, 850, 900 nm)
−
3.7 e
rms, Rolling Shutter
−
25.5 e
rms, Global Shutter
73 dB, Rolling Shutter
56 dB, Global Shutter
> 10,000x
1.3 electron
2.0 V
1.8 V
2.8 V & 3.5 V
1.5 W for 12 Mp @ 70 fps 10 bits
267 Pin Ceramic Micro-PGA
AR Coated, 2-sides

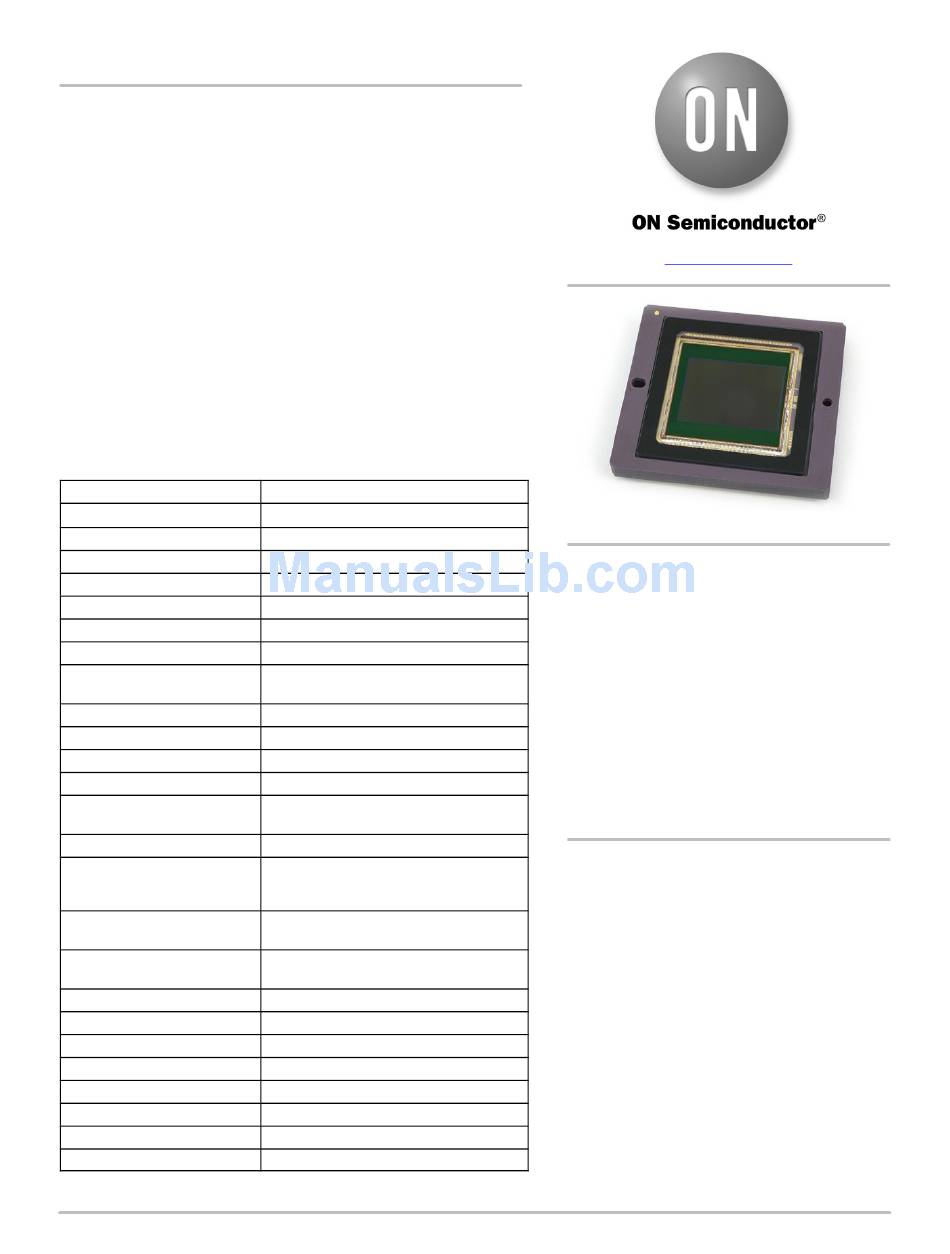

Figure 1. KAC−12040 CMOS Image Sensor
Features
•
Global Shutter and Rolling Shutter
•
Very Fast Frame Rate
•
High NIR Sensitivity
•
Multiple Regions of Interest
•
Interspersed Video Streams
Applications
•
Machine Vision
•
Intelligent Transportation Systems
•
Surveillance
ORDERING INFORMATION
See detailed ordering and shipping information on page 2 of
this data sheet.
1
www.onsemi.com
Publication Order Number:
KAC−12040/D
