Pro-Form PRO 7000 User Manual page 11

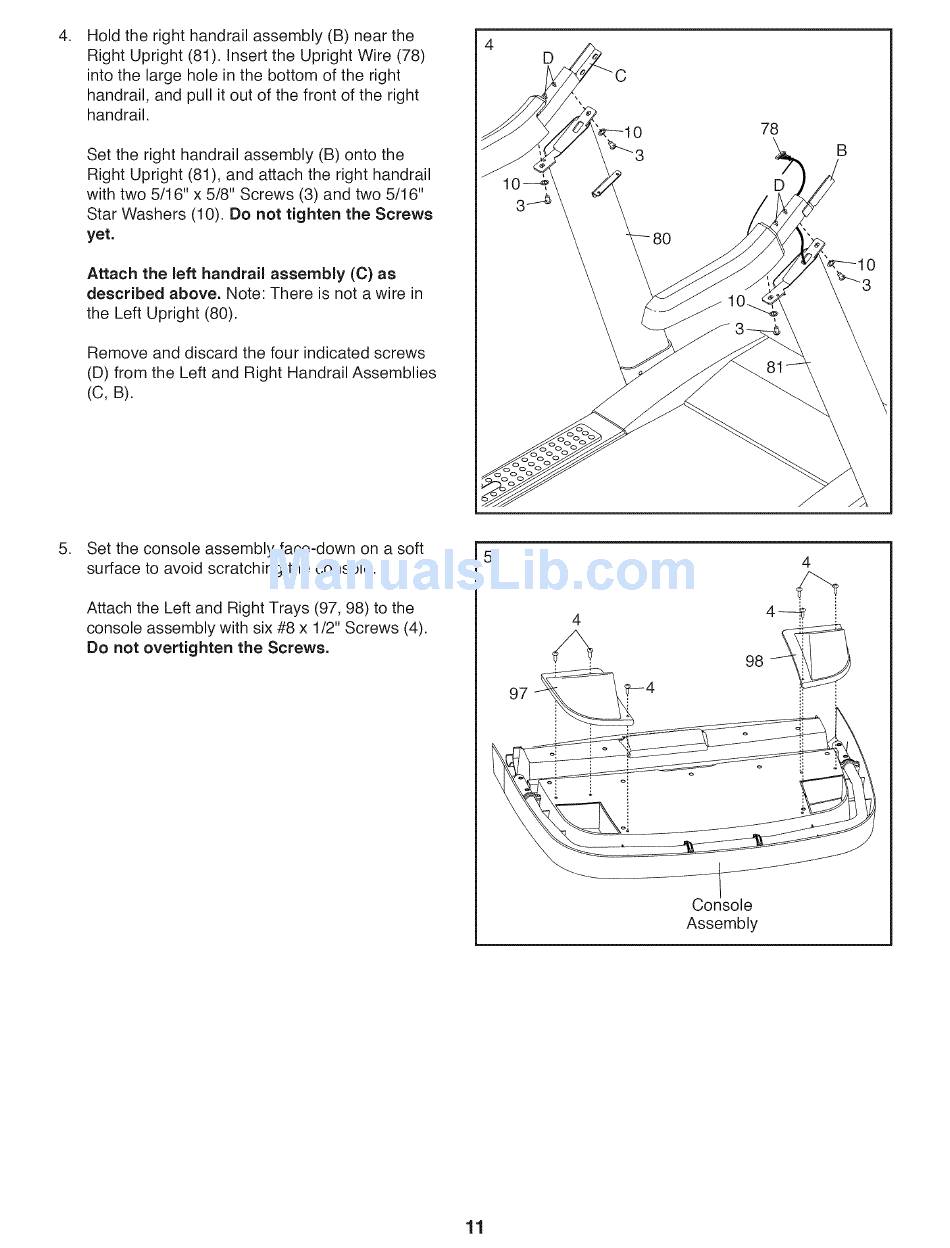

Hold the right handrail assembly (B) near the
Right Upright (81). Insert the Upright Wire (78)
into the large hole in the bottom of the right
handrail, and pull it out of the front of the right
handrail.
Set the right handrail assembly (B) onto the
Right Upright (81), and attach the right handrail
with two 5/16" x 5/8" Screws (3) and two 5/16"
Star Washers (10). Do not tighten the Screws
yet.
Attach the left handrail assembly (C) as
described above. Note: There is not a wire in
the Left Upright (80).
Remove and discard the four indicated screws
(D) from the Left and Right Handrail Assemblies
(C, B).
D
78
B
,
Set the console assembly face-down on a soft
surface to avoid scratching the console.
Attach the Left and Right Trays (97, 98) to the
console assembly with six #8 x 1/2" Screws (4).
Do not overtighten the Screws.
11
