Draytek Vigor2900 Troubleshooting Manual page 7

3.4 Are the ISP Settings OK?
1. Enter the web configuration UI to check your ISP settings (please refer to
section2.2 setp1).

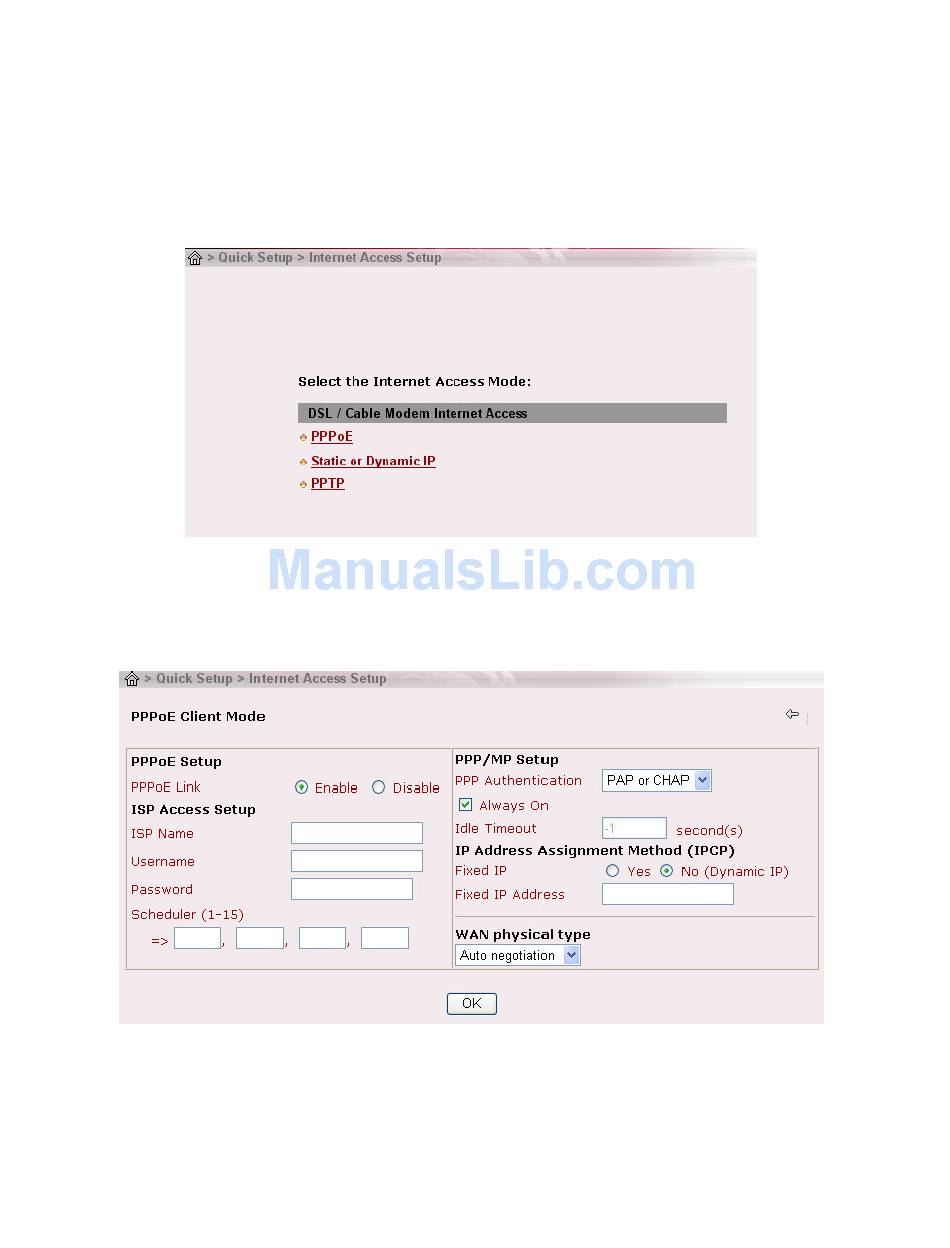

2. Click Internet Access Setup item in the "Quick Setup" group and then the
UI will switch to the following window.
A. For PPPoE Users
1. Check that if the Enable option is selected.
2. Check that if the Username and Password are entered with correct value
given by your ISP.
B. For Static or Dynamic Users
1. Check that if the Enable option is selected.
2. Check that if
WAN IP Network Settings
"Specify an IP address", IP Address, Subnet Mask, and Gateway IP
Trouble Shooting Guide of DrayTek Vigor2900 series
is set appropriately. If you select
7
All Rights Reserved
