2. Hardware Connection

2.1 Hardware Connection
Before starting to configure the router, please ensure to connect your devices correctly.
1. Connect the WAN interface to the external ADSL/Cable modem with a RJ-45 cable.
2. Connect one port of 4-port switch to your computer with a RJ-45 cable.
3. Connect the attached power adapter to the power port.
4. Check the ACT and WAN, LAN LEDs to assure network connections. (For detailed
LED status explanation please refer to section 1.3)

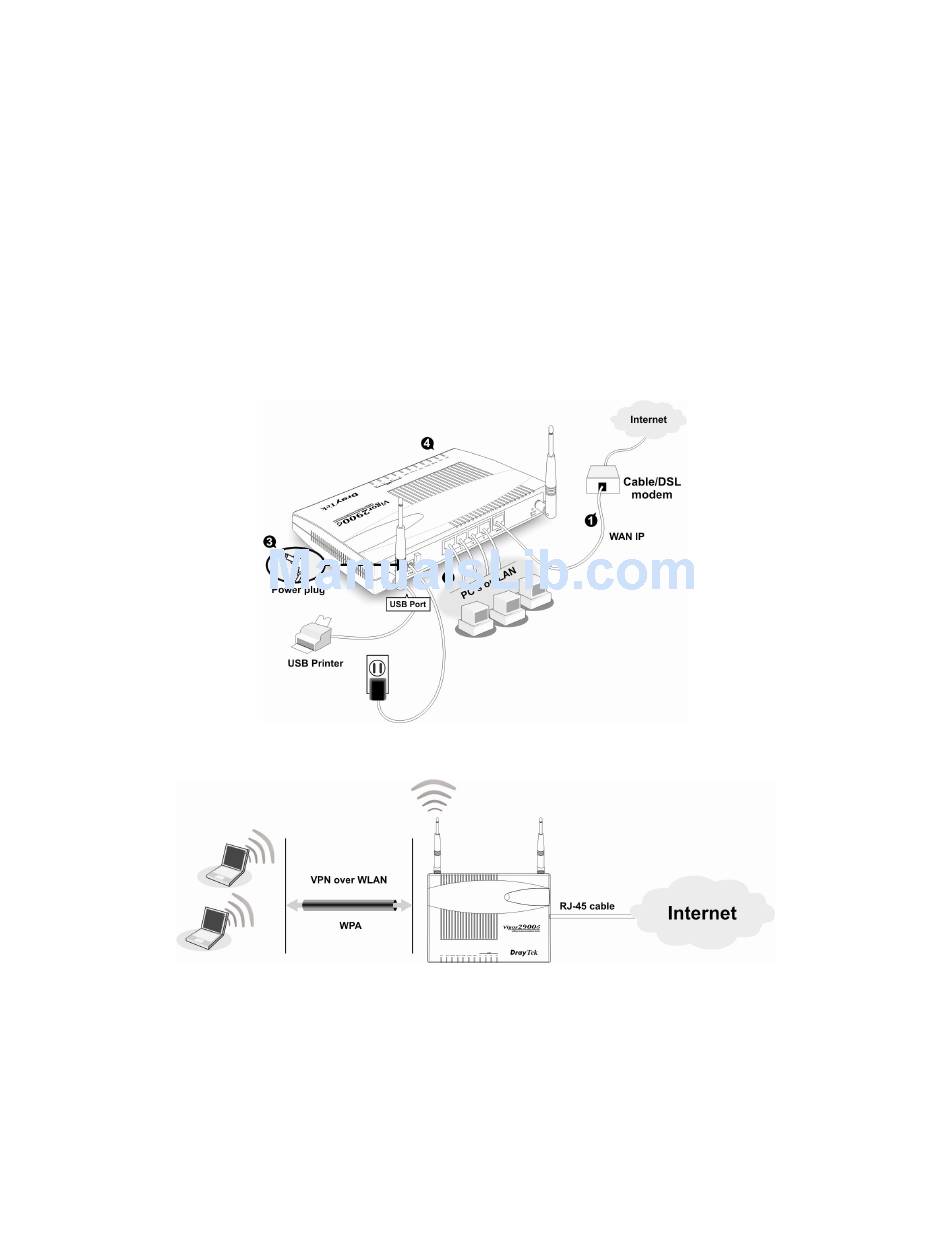

Connection scenario is shown as below:
