Typical Networking Example - Celcom E961 User Manual

14
You can construct a small LAN through the WLAN interface or four Ethernet interfaces of
the gateway.
Your gateway also supports external hubs, Ethernet switches, or routers. To construct a
LAN with multiple PCs, you can extend the Ethernet interfaces through a hub or Ethernet
switch.
For example, the gateway constructs a small-sized LAN with multiple PCs in the SOHO to

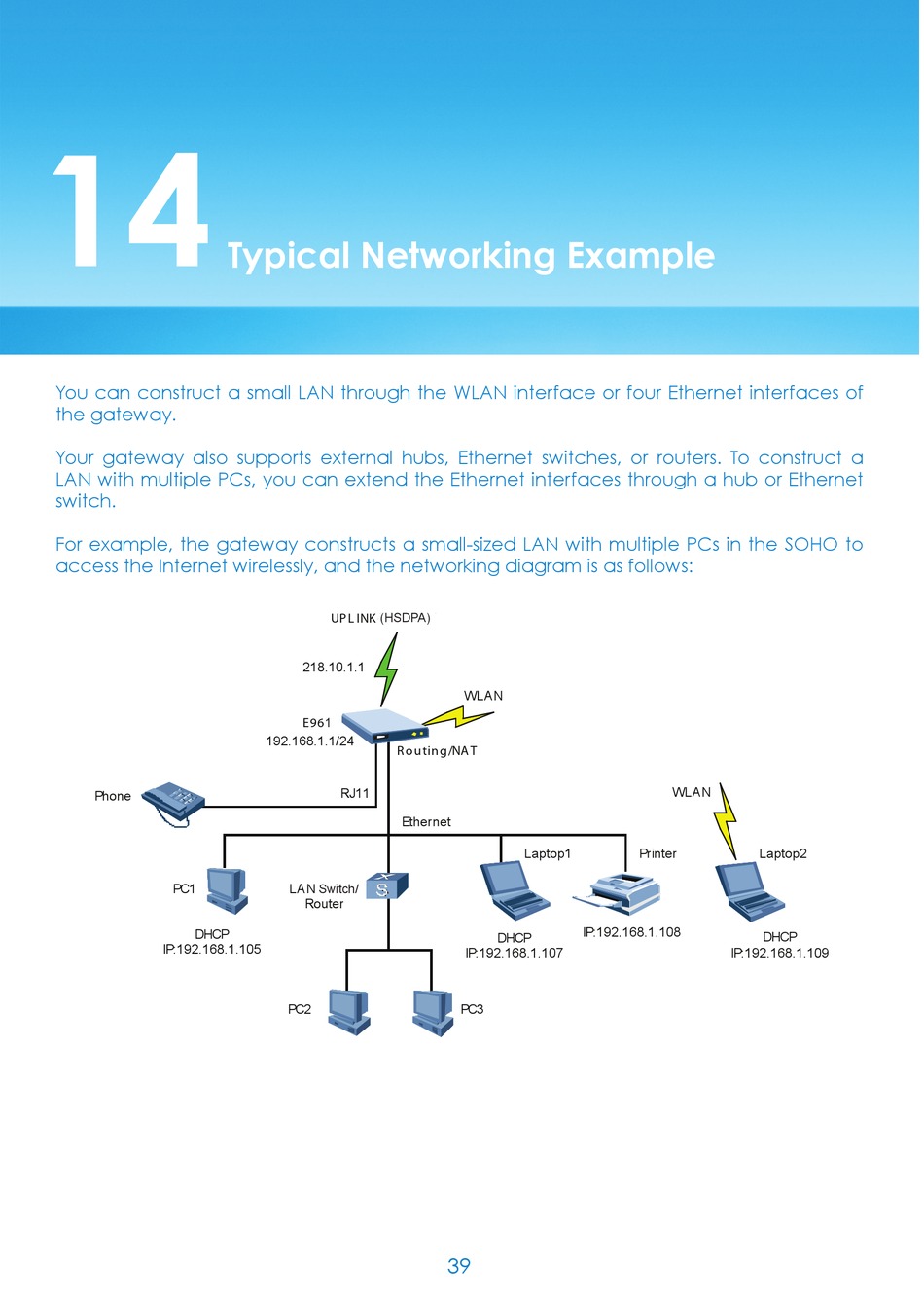

access the Internet wirelessly, and the networking diagram is as follows:
