Portacool PAC2K482S Owner's Manual

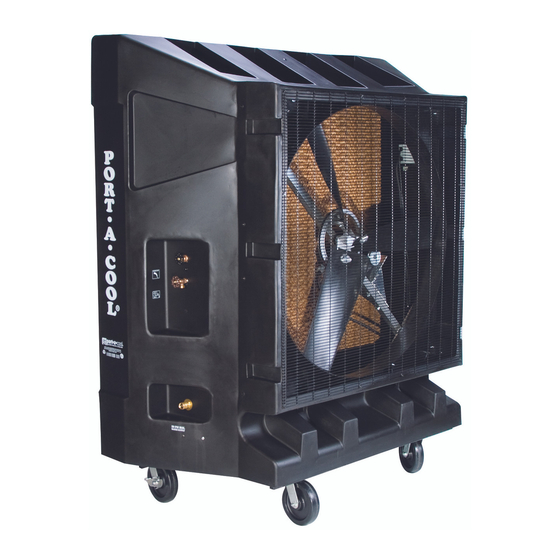

Portable evaporative cooling unit
Hide thumbs Also See for PAC2K482S:
Table of Contents

Advertisement

Quick Links

PORTACOOL OWNER'S MANUAL
FOR PAC2K482S, PAC2K363S, PAC2K361S, PAC2K36HPVS, PAC2K24HPVS and PAC163SVT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC2K482S and is the answer not in the manual?

Questions and answers

Related Manuals for Portacool PAC2K482S

Summary of Contents for Portacool PAC2K482S

  • Page 1 PORTACOOL OWNER’S MANUAL FOR PAC2K482S, PAC2K363S, PAC2K361S, PAC2K36HPVS, PAC2K24HPVS and PAC163SVT...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS READ AND SAVE THESE INSTRUCTIONS CONTENTS: QUICK SETUP GUIDE ................. page 2 TROUBLESHOOTING ..............pages 12-13 PRODUCT OVERVIEW ..............pages 3-7 TECHNICAL SUPPORT AND WARRANTY ....... pages 14-15 SAFETY INFORMATION ..............page 8 EXPLODED VIEWS ..............pages 16-20 GENERAL OPERATION ...............
  • Page 3 QUICK SET UP Remove box and palette Position product on level surface Plug into appropriate outlet Fill sump or attach water hose For setup, pads should appear wet before starting the fan. Check the water gauge to monitor water level in tank.The water flow valve on each unit is set at max flow.
  • Page 4 16" VERTICAL TANK OVERVIEW PAC163SVT This unit does NOT have a hose fill option. Control Panel Water Adjustment Valve Cord Wrap Electrical Plug Manual Fill Water Gauge Locking Drain Casters Plug...
  • Page 5 24" HP OVERVIEW Control Panel Water Adjustment Valve Hose Connection Flap Locking Electrical Casters Plug...
  • Page 6 36" OVERVIEW PAC2K36HPVS Control Panel Water Adjustment Valve Cord Wrap Electrical Hose Plug Connection Locking Casters...
  • Page 7 48" OVERVIEW PAC2K482S Control Panel Water Adjustment Valve Cord Wrap Hose Connection Electrical Plug Locking Casters...

  • Page 8: Safety Information

    • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area so it will not be tripped over. • Read instructions and labels carefully. • Always unplug the electric cord to the Portacool evaporative cooler before performing inspections or repairs. • Plug into three-prong grounded GFCI protected electrical receptacle only.

  • Page 9: General Operation

    OPERATING PROCEDURES Specifications Each Portacool evaporative cooler has its own set of operational specifications, sizes, weights, voltage frequency, current requirements, etc. Please ask for the specifications for your model from your distributor or check the serial number plate. Placement of the Portacool Evaporative Cooler There are three primary considerations when deciding where to place the Portacool evaporative cooler.
  • Page 10 It is important to ensure that the spray bar is properly adjusted when first starting the water flow in the Portacool evaporative cooler. Increasing the flow using the water flow valve (see Quick Setup on page 2) makes this adjustment.
  • Page 11 MAINTENANCE & STORAGE MAINTENANCE 1) Keep the product clean to ensure peak operating performance. 2) The rugged, corrosion-resistant construction ensures low maintenance will be required. However, in dusty or dirty environments, optional filters are available from wholesale-pricing.com. Daily Maintenance The pump should be turned off approximately 15 minutes before the fan is turned off. This will allow the cooling pads to dry out and extend their life. This also helps control the growth of mildew, mold, bacteria, and other odor-causing elements.

  • Page 12: Troubleshooting

    TROUBLESHOOTING The Portacool evaporative cooler consists of three systems — the fan system, the electrical system, and the water system. It is important to determine with which of the systems the problem is associated. Certain problems may be associated with more than one system. A careful check of all systems should be made to fully understand the extent of the problem.
  • Page 13 The following troubleshooting guide is intended to address the most common symptoms which may occur. If you are unable to resolve the issue, please call Technical Support. Turn off all power to the evaporative cooler before attempting to troubleshoot any of the following symptoms. SYMPTOM POSSIBLE CAUSES REMEDY...
  • Page 14 All transportation charges on parts submitted for replacement or repair under this warranty must be borne by the purchaser. Portacool, LLC., will not be held liable for any incidental or consequential damages. This warranty is declared void if the equipment is found to have been misused, abused or tampered with by unauthorized personnel.
  • Page 15 2. The defective part need to be returned to Portacool, LLC, labeled with the RMA number within 90 days of receipt of replacement parts. 3. The customer / distributor can call Tech Support to get an RMA number to send the defective part back to Portacool, LLC. Once the part is received by Portacool, a replacement part will be sent at no charge.
  • Page 16 16" VERTICAL TANK PARTS PAC2K163SHD REVISED 02/12/15 PART # DESCRIPTION PART # DESCRIPTION BONNET-03 SPRAY BAR BONNET PRES-REG-01 WATER PRESSURE REGULATOR BOX-UL-01 3 SPD ELECTRICAL BOX PUMP BRACKET PLASTIC PUMP COVER/BRACKET CLAMP-01 1/2” CLAMP FOR PLASTIC TUBE PUMP-0150-1 PUMP 1/70HP W/NETTING CTRL-3SPD-02 3-SPD HARNESS W/SALZER PVC-ADP-01...
  • Page 17 16" VERTICAL TANK PARTS PAC163SVT PART # DESCRIPTION PART # DESCRIPTION REVISED 02/17/2015 10FT POWER CORD W/STRAIN RELIEF/ BASE-JS/VT CASTER BASE ASSEMBLY FOR JS/VT POWERCORD-03F NUT/WASHER BONNET-03 SPRAY BAR BONNET FOR 16” PAC PAD6024/G 16” PAC REPLACEMENT PAD BOX-UL-01 3SPD ELECTRICAL BOX POLY-FTG-06 90DEG FITTING FOR SIGHT TUBE CASTERS-HD-4...
  • Page 18 24" HIGH PERFORMANCE PARTS PART # DESCRIPTION PART # DESCRIPTION PAC2K24HPVS Revised 02/25/15 BASE-2K24 CADDY LOCKNUT-FNG-516 5/16-18 FLANGE NYLON INSERT LOCK NUT BLADE-ASSM-02 VOSTERMAN 24” FAN BLADE ASSY. (33deg.) PAC-PLB-01 BRASS INLET FITTING BONNET-02 SPRAY BAR BONNET FOR 24” PAC PAC-PLB-02 BLACK PLUMBING ASSEMBLY BOX-UL-03...
  • Page 19 36" SINGLE-SPEED PARTS PAC2K361S PART # DESCRIPTION PART # DESCRIPTION Revised 02/25/15 BASE-2K36 CADDY MOTOR-MNT-01 MOUNT FOR 36” MOTOR BEARING-FAN-01 BEARING FOR 24” & 36” PAC N-516-NYLOK 5/16” NYLOCK NUT FOR CASTERS BELT2K-38-01 A-38 FAN BELT PAC-PLB-01 BRASS INLET FITTING BONNET-01 SPRAY BAR BONNET PAD6048/G...
  • Page 20 36" THREE-SPEED PARTS PAC2K363S PART # DESCRIPTION PART # DESCRIPTION Revised 02/25/15 BASE-2K36 CADDY MOTOR-MNT-01 MOUNT FOR 36” MOTOR BEARING-FAN-01 BEARING FOR 24”/36” FAN BLADE ASSEMBLY N-516-NYLOK 5/16” NYLOCK NUT FOR CASTERS BELT2K-38-01 A-38 FAN BELT PAC-PLB-01 BRASS INLET FITTING BONNET-01 SPRAY BAR BONNET PAD6048/G...
  • Page 21 36" VARIABLE SPEED PARTS PAC2K36HPVS ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION Revised 02/25/15 BASE-2K36 CADDY MOTOR-012-05 1/2 HP DIRECT DRIVE VOSTERMAN MOTOR BLADE-ASSM-01 VOSTERMAN 36” FAN BLADE ASSEMBLY N-516-NYLOK 5/16-18 NYLOK NUT BONNET-01 SPRAY BAR BONNET FOR 36” PAC PAC-PLB-01 BRASS INLET FITTING BOX-UL-06...
  • Page 22 48" TWO-SPEED PARTS PART # DESCRIPTION PART # DESCRIPTION PAC2K482S REVISION 02/17/15 BASE-2K48 CADDY N-516-NYLOK 5/16-18 NYLOK NUT FOR CASTERS BELT2K-45-01 A-45 FAN BELT PAC-PLB-01 BRASS INLET FITTING BONNET-04 SPRAY BAR BONNET PAC-PLB-02 BLACK PLUMBING ASSEMBLY BOX-UL-02 2 SPD ELECTRICAL BOX PAD6060/G PAD FOR 48”...

  • Page 23: Wiring Diagram

    VARIABLE SPD WIRING DIAGRAM...
  • Page 24 ONE-SPEED WIRING DIAGRAM...
  • Page 25 TWO-SPEED WIRING DIAGRAM...
  • Page 26 THREE-SPEED WIRING DIAGRAM...

  • Page 27: Frequently Asked Questions

    THERE’S AN UNPLEASANT ODOR! A. Replacement parts may be purchased from any Portacool product distributor or A. The pads, located in the back of your Portacool product, have never been wet directly from Portacool Parts/Technical Support department. You may also visit www.
  • Page 28 CUSTOMER SERVICE CONTACT www.wholesale-pricing.com Portacool, LLC • Manufacturer of Portacool™ MANR0003 portable evaporative coolers and KUUL evaporative cooling media ® 711 FM 2468 • Center, Texas 75935...

This manual is also suitable for:

Pac2k363sPac2k361sPac2k36hpvsPac2k24hpvsPac163svt
