Page 1: User Manual
User Manual AS2000 Plus Portable GPS Tracker (For Vehicle/Container/Boat/ Personal) -
Page 2: Product Overview

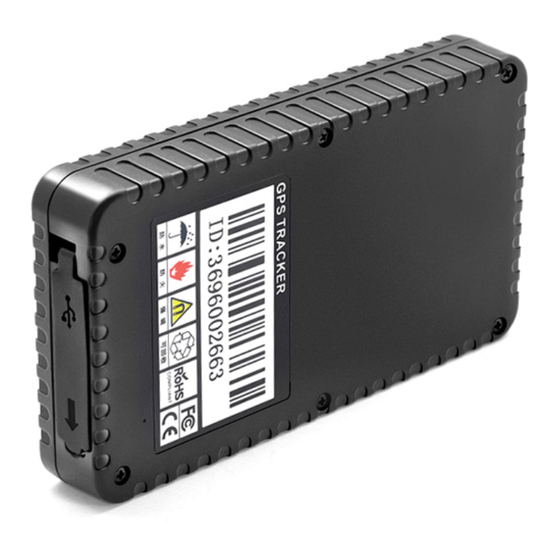

1. Product Overview GPS TRACKER AS2000 plus is the combination of GSM and GPS technology, it uses industrial-grade fireproof material, 6 18MM × 3MM strong magnets , IPX-5 waterproof level, built-in 8000MAH high-capacity battery, long standby 100 days, Magnetic free installation design, easy to use. -
Page 3: Specification
when encountering such problem. Each signal sent out from the system will be confirmed for successful transmission in the base station of the mobile operator. However, if system stoppage occurs or if the mobile telephone is preset to a switch off state by the customer, it cannot ensure successful transmission. -
Page 4: Installation
3.1 Product part list ● 5V 1000MA charger ● Charging Cable ● User guide and warranty card ● GPS tracker AS2000 plus main unit 3.2 Charging First charge, please charge more than 12 hours, please use the original charger and battery. - Page 5 Check if all the wiring has been connected correctly; then connect the GPS Tracker unit to the power supply. We don't provide the SIM card 3.4 Description of AS2000 Plus LED : LED State Description Red LED--- indicate charge sate...
-
Page 6: Important Notice
Yellow LED--- indicate the GSM signal state State Means Flash fast GSM/GPRS initialization Always on GSM/GPRS Working normal Device sleep or device power off 4. Important Notice: 1. This tracker have two work mode which is SMS and GPRS Mode. SMS mode is for off line tracking by Mobile phone. - Page 7 7. Locate by 900D web based tracking software . 1. First you need to Set Access Point Name (APN) Command1： 803+user password+space+APN E.g：8030000 CMNET Command2 : 803+user password+space+APN+space+APN user name+space+APN Password Reply: SET GPRS APN OK In the example APN is CMNET,Which is China mobile APN. APN is Access Point Network, each GSM operator has a unique APN name, please contact your operator to get correct GPRS APN info.
- Page 8 Asset Name: Define by yourself; you can enter A-Z number or Numeric Device ID: On the GPS tracker cover , you can find the “ID”. Very Important Note: Asset name and device ID must be unique on the software, you can add once only, you need to delete it from database before adding it again.
-
Page 9: Sms Command List
Put a check mark on the device, and right click, you will see the menu as below picture. Now you can track online. Attention: For 900D GPS Software, "Monitor" and "Asset Name" must be checked till the font becomes blue, then the GPS tracker will update location automatically on map.Like below picture: 8. - Page 10 Eg: 7100000 Reply: SET MODE OK, CURRENT MODE: GPRS 8.3. Change user password Command: 777+new password +old password (4 figures) Eg: 77712340000 Reply: SET USER PASSWORD OK 8.4. Command Get Daily report: Command : 665+ user password+HHMM Example：66500001022 Reply：SET DAILY REPORT OK Note: HH stands for hour with defined range of [00, 23].
- Page 11 Close the power off alert Command: 010 + user password eg: 0100000 Reply: POWER ALARM OFF 8.8. Power cut(Available for MT1C MT1X A1X only) Cut power: 940+password Eg: 9400000 Enable power: 941+password Eg:9410000 8.9. Time Zone Command: 896 + user password + D + NN Eg: 8960000E08 Reply : TIME ZONE SET OK,CURRENT：E8.
- Page 12 Turn off acc alarm SMS: 887+user password Eg: 8870000 Turn on acc alarm phone call: 888+user password Eg: 8880000 Turn off acc alarm phone call: 889+user password Eg: 8890000 8.14. Sleep Mode: Turn on sleep mode: SLEEP+user password+space+X X means sleep time, from 1-720, in the unit of minute. If device not receive any command or move at the X time you set, device will close GPS,GSM module, and be in power saving mode.
-
Page 13: Troubleshooting
APN is Access Point Network, each GSM operator has a unique APN name, please contact your operator to get correct GPRS APN info. 8.17. Set server IP address and Port Command： 804+user password+space+IP+space+Port Eg: 8040000 58.64.205.22 8000 Reply: SET SERVER IP AND PORT OK Remark: we have two server. - Page 14 Answer: send sms command 7100000 switch gps tracker to GPRS mode please. Thanks for using our products, if you cannot solve the problem by yourself, please contact our technical support team by writing an E-Mail service@i-trac.cn to us. We will be pleased to help you.
