User Manual

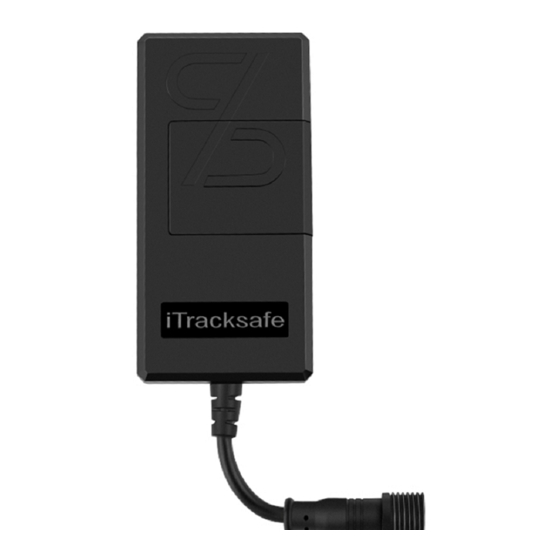

MT-1C GPS Tracker
(Vehicle/Motorcycle)
Version:08
Disclaimer
The Ascend Group Company Limited Manual (the "Manual") is proprietary to
Ascend Group Company Limited. ("i-Trac GPS") and no ownership rights are
hereby transferred. No part of the Manual shall be used, reproduced,
translated, converted, adapted, stored in a retrieval system, communicated or
transmitted by any means, for any commercial purpose, including without
limitation, sale, resale, licence, rental or lease, without the prior express written
consent of i-Trac GPS.
i-Trac GPS does not make any representations, warranties or guarantees,
express or implied, as to the accuracy or completeness of the Manual. Users
must be aware that updates and amendments will be made from time to time
to the Manual. It is the user's responsibility to determine whether there have
been any such updates or amendments. Neither i-Trac GPS nor any of its
directors, officers, employees or agents shall be liable in contract, tort or in any
other manner whatsoever to any person for any loss, damage, injury, liability,
cost or expense of any nature, including without limitation incidental, special,
direct or consequential damages arising out of or in connection with the use of
the Manual.
Advertisement
Table of Contents
Related Manuals for I-Trac MT-1C
Summary of Contents for I-Trac MT-1C
-
Page 1: User Manual
Manual. It is the user's responsibility to determine whether there have been any such updates or amendments. Neither i-Trac GPS nor any of its directors, officers, employees or agents shall be liable in contract, tort or in any... -
Page 2: Specification
1. Specification GSM module MTK program, GSM 850/900/1800/1900 Support TCP protocol GPS Chipset U-BLOX 7020(Support GPS/Glonass/Galileo/Compass) GPS sensitivity -162dB Hot start 1sec.,average Warm start 30 sec.,average Cold Start 35 sec, average Operating temperature -20°C－65°C Battery Volume 50mAh Dimension 89mm×51mm×15mm Voltage 12-100V Altitude Limit 18,000 meters (60,000feet) max. -
Page 3: Important Notice
Status Meaning Flash No gps signal, or searching for gps signal Always on GPS Signal ok Orange LED Light---GSM Status Status Meaning Flash No sim card, or searching for gsm signal Always on GSM Signal ok Red LED Light--- Work status Status Meaning Flash... - Page 4 2. Work Mode Exchange : SMS Mode Command：700+ user password Eg: 7000000 Reply: SET MODE OK, CURRENT MODE: SMS GPRS Mode Command：710+ user password Eg: 7100000 Reply: SET MODE OK, CURRENT MODE: GPRS 3. Change user password Command: 777+new password +old password (4 figures) Eg: 77712340000 Reply: SET USER PASSWORD OK 4.
- Page 5 Turn geo-fence off Command: 210+ password Eg: 2100000 Reply: GEO-FENCE OFF 8. Battery low voltage alert While device detect internal battery is low power, it will send coordinate message with STATE:LOW P OWER 9 .Alert while power off Open the power off alert Command: 011 + user password eg: 0110000 Reply: POWER ALARM ON Close the power off alert Command: 010 + user password...
- Page 6 Reply: SET RATE LIMIT:120 Close command : 1220000 0 Note : X is speed benchmark value, which is an integral number. unit is KM/H with defined domain of [0, 999]. 14. Tow alarm Turn on tow truck alert: 181 + user password + TX Eg: 1810000T15 (15 seconds) Reply : TOWED ALERT ON Turn off tow truck alert: 180 + user password...
- Page 7 Reply：SET OK Turn off sleep mode: SLEEP+user password+space+0 Eg：SLEEP0000 0 Reply：SET OK 18. Set Access Point Name (APN) Command1： 803+user password+space+APN eg：8030000 CMNET Command2 : 803+user password+space+APN+space+APN user name+space+APN Password Reply: SET GPRS APN OK 19. Set server IP address and Port Command：...
- Page 8 Asset Name: Define by yourself; you can enter A-Z number or Numeric Very Important Note: Terminal ID and Plate number are unique on the software, you can add once only, you need to delete it from database before adding it again. Only admin account can delete id from database, general user cannot.
- Page 9 Click "Submit", and then you add the GPS tracker MT-1 successfully on the software 900D. Wait few seconds, and you will see the GPS Tracker online icon on software Put a check mark on the device, and right click, you will see the menu as below picture. Now you can track online.
- Page 10 If you encounter any problems when using our products, and cannot solve them by yourself, please contact our technical support team by writing an E-Mail to us. We will be pleased to help you.
