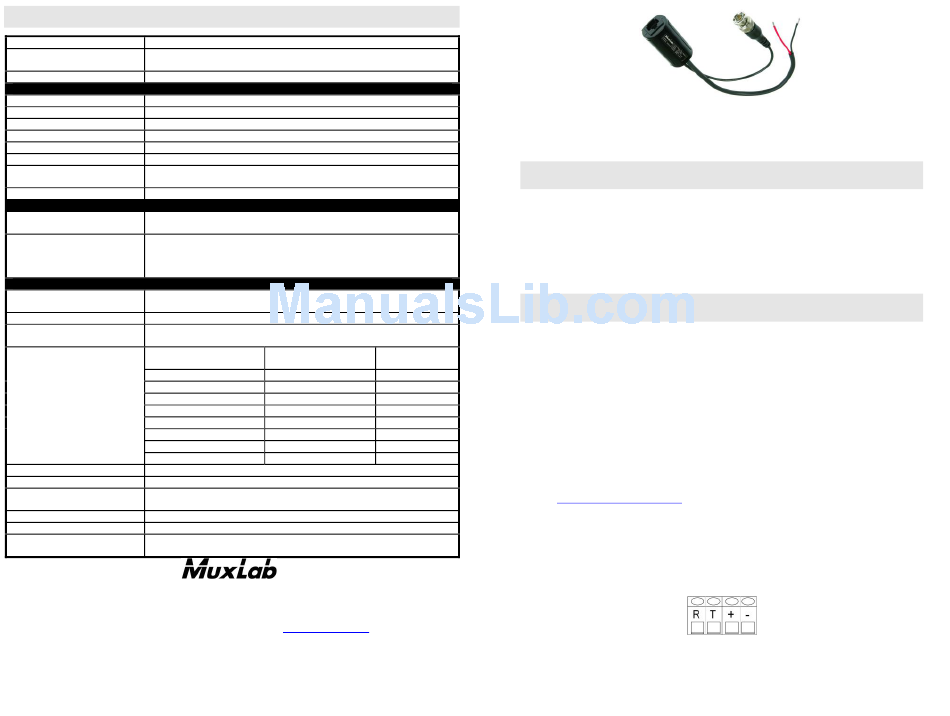

MuxLab 500024 Quick Installation Manual

Specifications

Environment Baseband video; NTSC, PAL, SECAM
Devices Close-circuit TV (CCTV) cameras, monitors, switchers, sequencers, multiplexers,
digital video recorders (DVR) and other CCTV equipment.
Transmission Transparent to the user.
Video
Bandwidth DC to 8 MHz.
Impedance Input: 75 ohms (BNC); Output: 100 ohms (RJ45)
Maximum Input 1.1Vp-p
Insertion Loss Less than 2 dB per pair over the frequency range from DC to 8 MHz
Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection Greater than 40 dB @ 8 MHz
Max. Distance – Colour Cat 3 –1,200 ft (365m); Cat 5 – 2,200 ft. (670m)*
*Certain models of DVR may yield shorter distances of 1,000 to 1,500 ft
Max. Distance – Black & White Cat 3 –1,500 ft (457m); Cat 5 – 2,500 ft (762m)
Remote Power (i.e.; 24 VAC, 28 VAC)
Wiring Remote low voltage power supported via three (3) twisted pairs. A Class II power
supply is recommended.
5 VA: 518 ft (170m)*
Max. Distance @ 24VAC via
three (3) twisted pairs* 20 VA: 130 ft (43 m)*
*Longer distances may be *Based on 10% voltage drop at camera. Please consult your CCTV equipment
achieved @ 28 VAC. vendor for more detailed performance specifications.
Mechanical & Environmental
Cable – UTP
24 AWG or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable – Coax Impedance: 75 Ω at 1 MHz. (RG59/U). Max. 25 ft. of coax allowed end to end.
Connectors Combined signals: RJ45
Power: 2-wire lead
Pin Configuration* Signal
*Reverse polarity sensitive
Power A
Power B
Power A
Power B
Power A
Power B
Video BNC Center (Tip)
Video BNC Ground (Ring)
Temperature Operating: 0° to 55°C. Storage:-20° to 85°C. Humidity: up to 95%
Enclosure ABS fire retardant plastic
1.875" (4.7cm)x 1.0" (2.54cm) diameter plus cable leads; 8" (20cm) for video;
Dimensions
10" (25.4cm) for power lead
Weight 1.95 oz (55 gms)
Warranty Lifetime
500024
Order Information
500029
8114 Trans Canada Hwy, St. Laurent, Quebec, Canada, H4S 1M5
Tel.: +1 (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com URL:
94-000376-C
© MuxLab Inc.
10 VA: 259 ft (85 m)*
30 VA: 86 ft (28 m)*
Video: BNC-male 8" mini-coax lead
RJ45 Pin Cable Lead Color
1 (common with 3&5) Red
2 (common with 4&6) Black
3 (common with 1&5) Red
4 (common with 2&6) Black
5 (common with 1&3) Red
6 (common with 2&4) Black
7 [T] opposite to 500000 Mini-coax
8 [R] opposite to 500000 Mini-coax
CCTV Power-Thru Balun, RJ45
CCTV Power-Thru Balun, Screw Terminals
Fax: +1 (514) 905-0589
www.muxlab.com
SE-000323-C
CCTV Power-Thru Balun (500024, 500029)

Quick Installation Guide

Introduction
The VideoEase CCTV Power-Thru Balun allows video and remote power to be
transmitted via one 4-pair Cat 5 cable, thus eliminating the need to install multiple
cables for more efficient cabling. There are two models: 500024; with modular RJ45
connector and 500029; with screw terminal connectivity. The CCTV Power-Thru
Balun may be used in pairs or in conjunction with other MuxLab CCTV baluns such
as the 500000, 500009, 500015, 500022 and 500023.
Installation
Pre-Installation Checklist:
Note: For regulatory reasons, use of a Class II power supply is
recommended and may be required with the use of this product in some
regions.
1. Ensure the CCTV equipment and remote power supply is turned off.
2. One (1) twisted pair is required for the camera video signal. Three (3) twisted
pairs are required for remote power.
3. Verify that the cable length is within MuxLab specifications. The maximum
distance for video and remote power may be determined by consulting the
product specifications or the CCTV Balun Application Guide available on-line
at www.muxlab.com/support.
4. If the 500024 is being used, identify the pin configuration of the balun by
checking the product label or the specification section of this installation guide.
5. If the 500029 is being used, remove the balun cover with the help of a small
flathead screwdriver. The screw terminals are labeled "R/T" (Ring/Tip) and
"+/-" for video and remote power respectively.
