MuxLab VideoEase 500000 Quick Installation Manual

Specifications

Environment Close-Circuit TV equipment for security and surveillance.
CCTV cameras , DVR, IP camera encoders, AV monitors, switchers,
Devices
sequencers, multiplexers and other CCTV equipment.
Transmission Transparent to the user.
Video: DC to 8 MHz.
Bandwidth
Maximum Input 1.1Vp-p
Insertion Loss Less than 2 dB per balun pair over frequencies from DC to 8 MHz
Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection Greater than 40 dB @ 8 MHz
Max. Distance Color Cat 3 –1200 ft (365m); Cat 5E/6 – 2200 ft (670m).*
*Maximum distance when used with a DVR is typically 1,000 to
1,500 ft via Cat5.
Max. Distance B&W Cat 3 –1500 ft (457m); Cat 5E/6 – 2500 ft (762m)
Cable – UTP 24 gauge or lower solid copper twisted pair wire impedance: 100
ohms at 1 MHz.
Maximum capacitance: 20 pf/foot.
Attenuation: 6.6 dB/1000 ft at 1 MHz
Cable – Coax Impedance: 75 ohms at 1 MHz (RG59/U).
500000, 500031: RJ45 Pin 7 (Ring) & Pin 8 (Tip)
Connectors and pin
configuration 500000R:
500009, 500023: Two screw terminals.
*Reverse polarity sensitive
Temperature Operating: 0 to 55 °C. Storage:-20 to 85°C. Humidity: up to 95%
Enclosure Fire retardant plastic
Dimensions 500000, 500031: 1.75"x.75 x 1" (4.4 x 1.9 x 2.54 cm)
500009:
500023:
Warranty Lifetime
500000
Order Information
500000R
500009
500023
500031
Tel.: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com URL:
94-000230-H
© MuxLab Inc. 2000 - 2008
RJ45 Pin 8 (Ring) & Pin 7 (Tip)
1.25 x 0.5 x 0.5" (3.1 x 1.2 x 1.2 cm)
Same as 500009 with 8" mini coax lead
Modular CCTV BNC Balun, R7T8
Modular CCTV BNC Balun, R8T7
CCTV Screw Terminal Balun
CCTV Mini Balun
Modular CCTV RCA Balun, R7T8
Fax: (514) 905-0589
www.muxlab.com
SE-000114-H

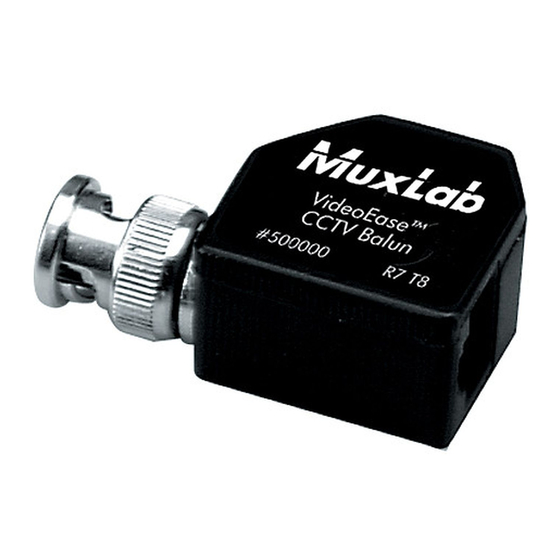

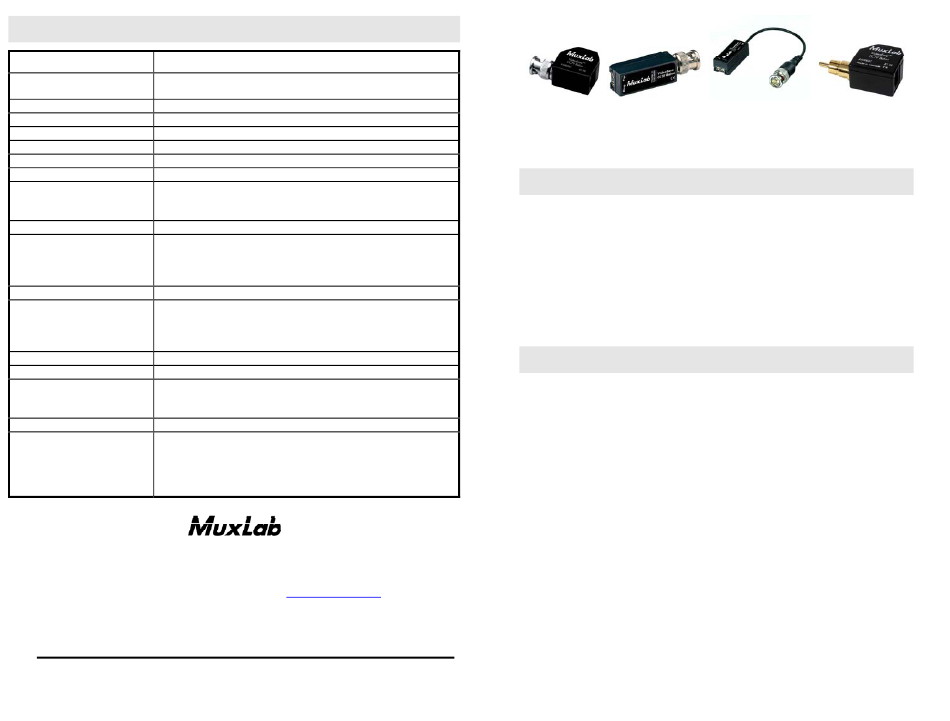

VideoEase CCTV Baluns
(500000, 500000R, 500009, 500023, 500031)
Quick Installation Guide

Introduction

The VideoEase CCTV Baluns eliminate 75-ohm coaxial cable and allow composite
baseband video to be transmitted via a single unshielded twisted pair (UTP) in a
structured cabling system. The VideoEase CCTV Balun is used in pairs to transmit
standard composite NTSC, PAL or SECAM video.
The CCTV Baluns are used with CCTV security and surveillance equipment such as
CCTV cameras, monitors, DVRs, IP camera encoders, video switchers and CCTV
camera servers. The CCTV Baluns may also be used with other composite
baseband video equipment such as DVD players, cable boxes, media servers and
audio-video monitors.

Installation

To install a VideoEase CCTV Balun, perform the following steps:
1. Identify the pin configuration of the baluns depending on the model used. One
twisted pair is required for each camera signal.
reverse polarity sensitive. Please ensure that "Ring" is connected to "Ring"
and "Tip" is connected to "Tip". See diagram below.
2. The CCTV Balun works in pairs. Plug one CCTV Balun into the coaxial
connector of the CCTV camera.
3. Plug a second CCTV Balun into the coax connector of the CCTV monitoring
equipment (i.e.; DVR, mux, IP camera server, monitor) at the other end.
4. If the Modular CCTV Balun is used, connect an RJ45 line cord to each balun.
5. If the CCTV Screw Terminal Balun is used, use UTP cable with the outer
jacket spliced to expose the twisted pair. See diagram below.
6. Complete the connection between the two baluns, using standard UTP cable,
connector blocks and modular wall outlets.
polarity sensitive. Please ensure that straight-through wiring is maintained.
See diagram below.
Note: The CCTV Balun is
The CCTV Balun is reverse
