Kwik-Way 103 Instruction Manual And Parts List page 43

103 Multi-Speed Brake Lathe

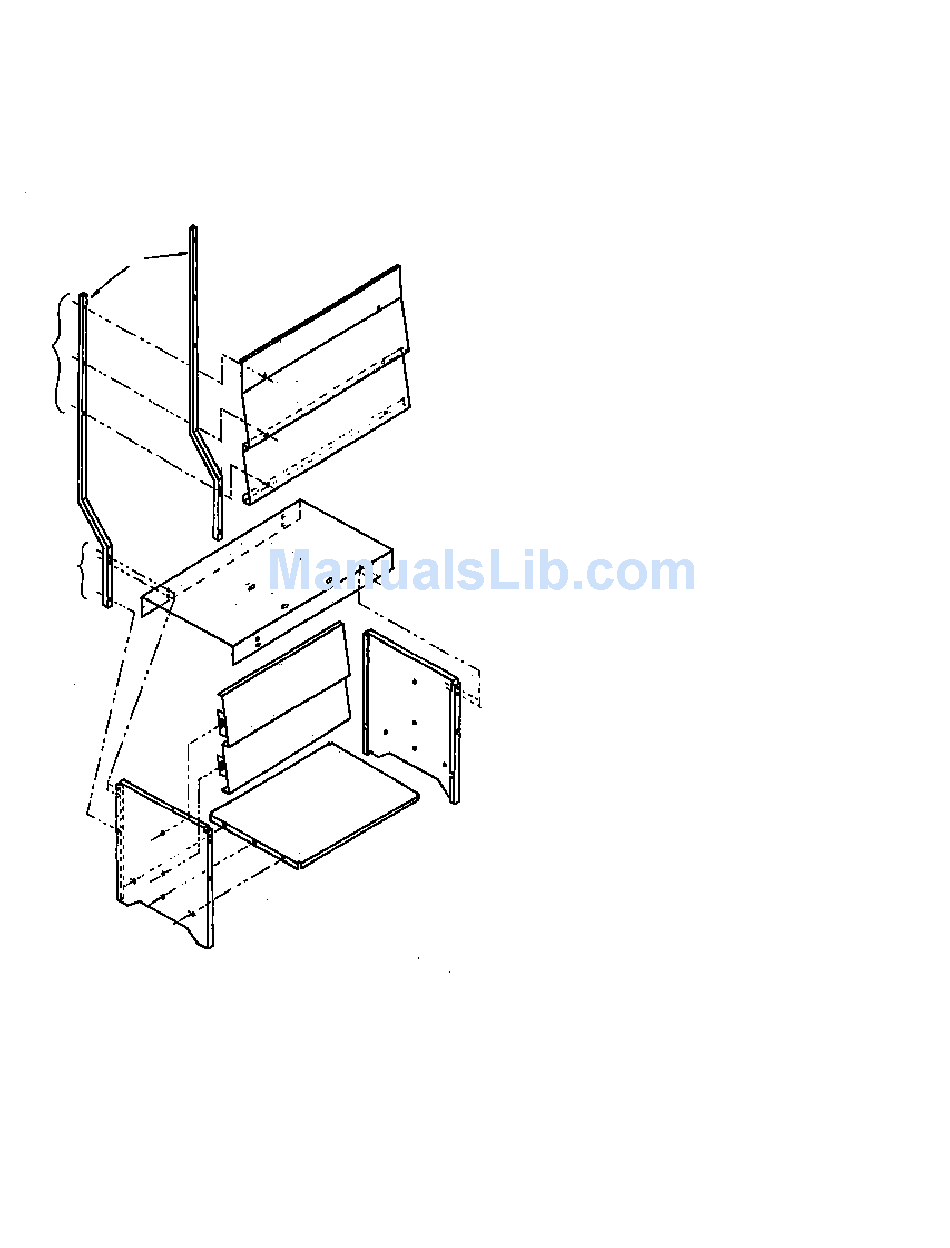

DELUXE BENCH ASSEMBLY for 103 BRAKE LATHE
5
A
A
1
804-8665-47
BASIC BENCH
NOTE: Does not include Items
No.'s 5 & 6 as shown above.
Replacement Parts & Supplies - 800-553-5953
804-8665-29
6
4
3
1
2
(If lathe is equipped with outboard support, assemble according to
instructions on Page 36.
1. Assemble items 1 thru 6. Items are assembled in numerical
order using 1/4-20 x .50 bolts and nuts for all parts except 5 and
6 which use the 1/4-20 x 1.75 bolts and nuts. Leave all fasteners
loose until all parts are assembled.
Tighten all fasteners securely.
2.
3. Place the four rubber pads in line with the four holes in the top
of the bench. Using proper lifting equipment place the 103
Brake Lathe on top of the pads.
Fasten the lathe to the bench using the four 3/8-16 x 2.00 bolts,
4.
nuts and washers. Set the Chip Tray to the left of the lathe.
Arrange the hooks on the upper and lower tool board as desired.
5.
IMPORTANT:
Inspect the shipment of your bench for evidence of dam-
age before signing the bill of lading. A signed bill of lad-
ing indicates the shipment was received in good condi-
tion.
Contact KW Products (Kwik-Way) concerning any parts
shortages.
PARTS LIST
Item Part No.
1 804-8665-32
2 804-8665-31
3 804-8665-38
4 804-8665-30
5 804-8665-40
6 804-8665-39
7 804-8665-60
8 804-8665-53
HARDWARE
000-0101-54 1/4-20 x 1.75 Machine Bolt
000-0100-14 1/4-20 x .50 Machine Bolt
000-1020-08 1/4 Hex Nut
000-0105-88 3/8-16 x 2.00 Machine Bolt
804-8033-25 3/8 Hex Nut
000-1150-45 3/8 Flat Washer
804-8665-50 Rubber Pads
804-8085-56 Hooks for Tool Boards
NOTE:
A - use 1/4-20 x 1.75 Machine Bolt with Nut
1 thru 6 - use
1/4-20 x .50
Machine Bolt with Nut
A S S E M B LY I N S T R U C T I O N S
Description
Leg
Shelf
Lower Tool Board
Top
Upright
Upper Tool Board
Decal (Not Pictured)
Chip Tray (Not Pictured) 1
Qty.
2
1
1
1
2
1
1
12
18
30
4
4
4
4
22
3 9
