Kwik-Way 103 Instruction Manual And Parts List page 16

103 Multi-Speed Brake Lathe
INSTALLATION OF ARBOR
.
1. The 1" diameter arbor is included with the 103 as standard equipment and is capable of handling work
pieces up to 150 lbs. If the work piece is heavier the 150 lbs, it will be necessary to use the optional 2" Heavy
Duty Arbor.

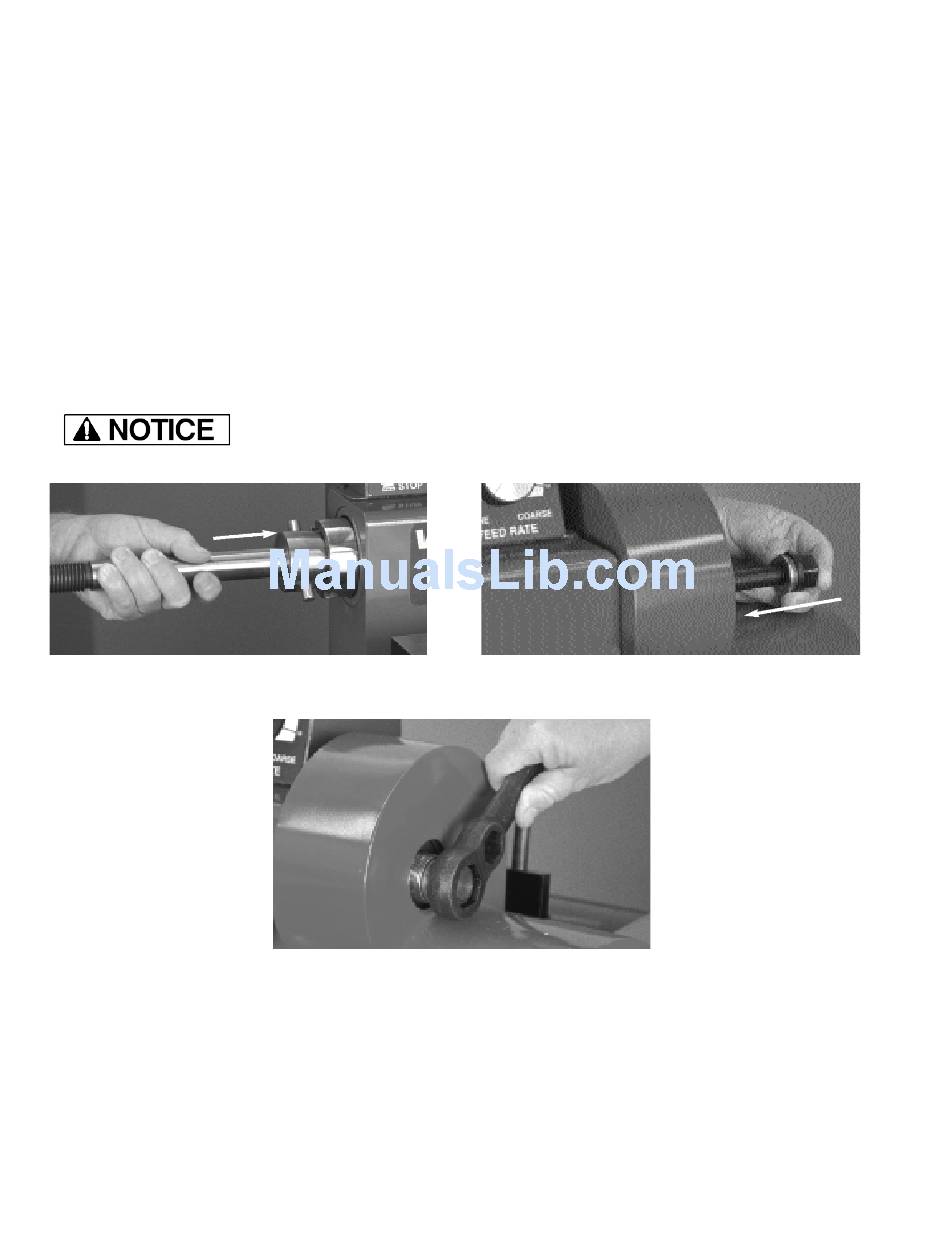

2. Insert arbor into spindle taper (Figure 5).
IMPORTANT: Both the arbor and the spindle taper must be clean, otherwise arbor will have run out and the
taper may be damaged. Align pin in arbor with slot in main spindle. Screw in draw bar (Figure 6) and
tighten (Figure 7). DO NOT tighten excessively. Driver pin will prevent arbor from slipping. To remove
arbor easily (arbor has a non-locking taper) loosen draw bar slightly and tap lightly on the end of the draw
bar. Hold the arbor with one hand to prevent arbor from falling while unscrewing draw bar.
3. Don't hammer upward or downward on draw bar as damage may occur to both arbor and draw bar.
1 2
Figure 5
Figure 7
Replacement Parts & Supplies - 800-553-5953
Figure 6
