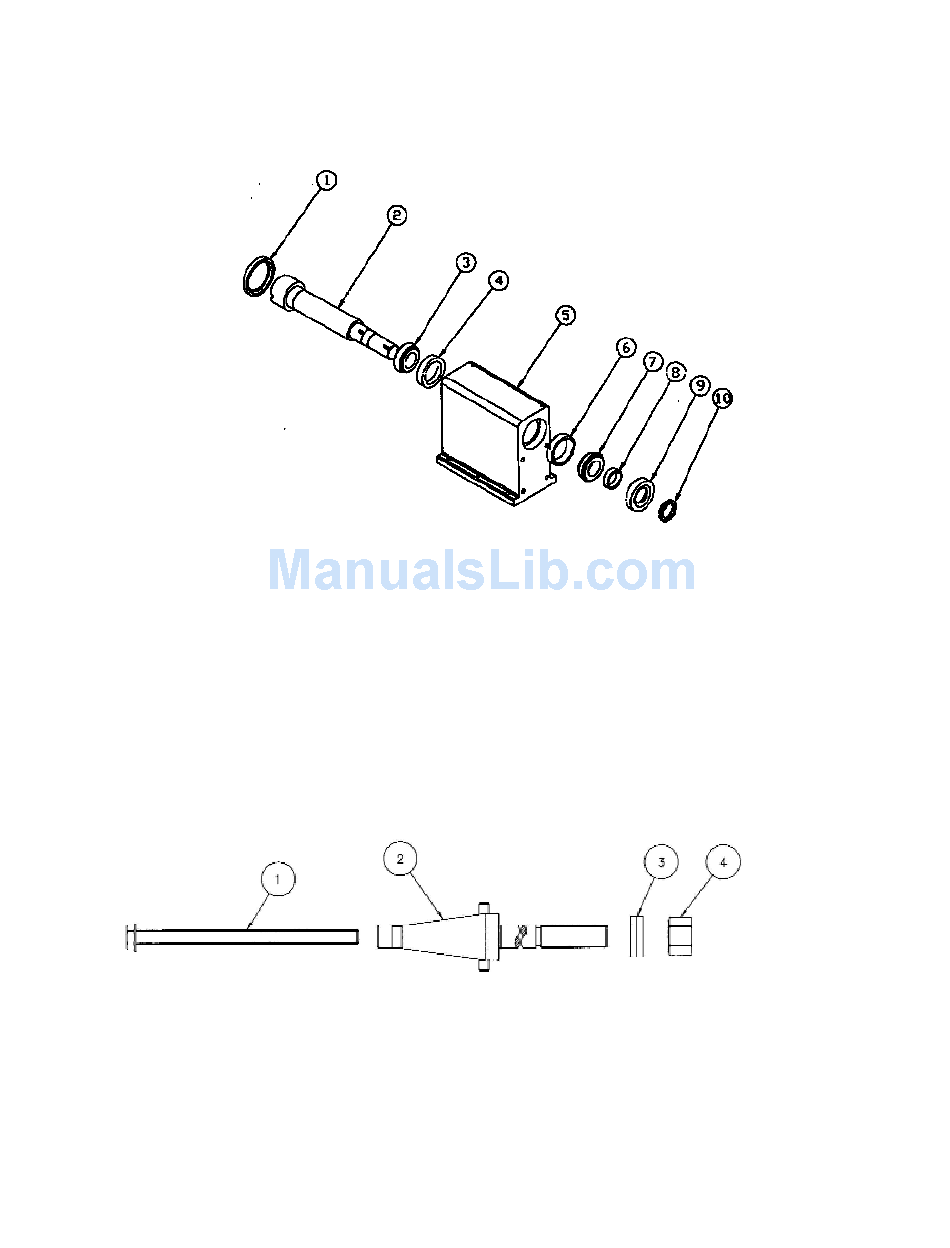

Spindle Housing Assembly; Arbor Assembly - Kwik-Way 103 Instruction Manual And Parts List

103 Multi-Speed Brake Lathe
Item Part No.
1 804-8663-65
2 804-8680-45
3 804-8084-14
4 804-8084-15
5 804-8680-43
6 804-8680-50
7 804-8680-49
8 804-8680-84
9 804-8663-71
10 804-8663-56
3 4
804-8680-44

SPINDLE HOUSING ASSEMBLY

Description
Seal-Front
Spindle
Bearing Cone
Bearing Cup
Spindle Housing
Bearing Cup
Bearing Cone
Spacer
Seal-Rear
Locknut BH 07
Item Part No.
1
2
3
4
Qty.
1
1
1
1
1
1
1
1
1
1
804-8691-88

ARBOR ASSEMBLY

Description
804-8663-90 Draw Bar Assembly
804-8691-87 1.0" Extended Arbor (RH)
804-8685-14 Spherical Washer Set
804-8691-65 Arbor Nut
Replacement Parts & Supplies - 800-553-5953
Qty.
1
1
1
1
