Genesis SHERLOCK 102 Operation Manual page 9

IR SENSOR
(Also see manual 44-0295 IR Sensor (44-0221 Obsolete)
The SHERLOCK Non-Dispersive IR Refrigerant Gas Sensor
was designed to monitor for the presence of refrigerant gases
within an enclosed space. The sensor is mounted within the
space to be monitored and connected by cable to a SHERLOCK
System. The IR sensor is calibrated to a specific refrigerant
gas. The IR comes in two Temperature ranges depending upon
the monitoring environments: Machine room and Extended for
refrigerated applications in NEMA 3R Aluminum (Pictured).
Water-tight ABS fiberglass housing for Wash down protection
(NEMA 3R) and Stainless Steel enclosure are also available.
The IR Sensor is a reliable method of monitoring for refriger-
ant gas leaks in environments that have air quality problems.
The IR will eliminate many false alarms in environments that
contain gasoline, diesel, and propane exhaust and fumes from
solvents, paints, cleansers, and others.

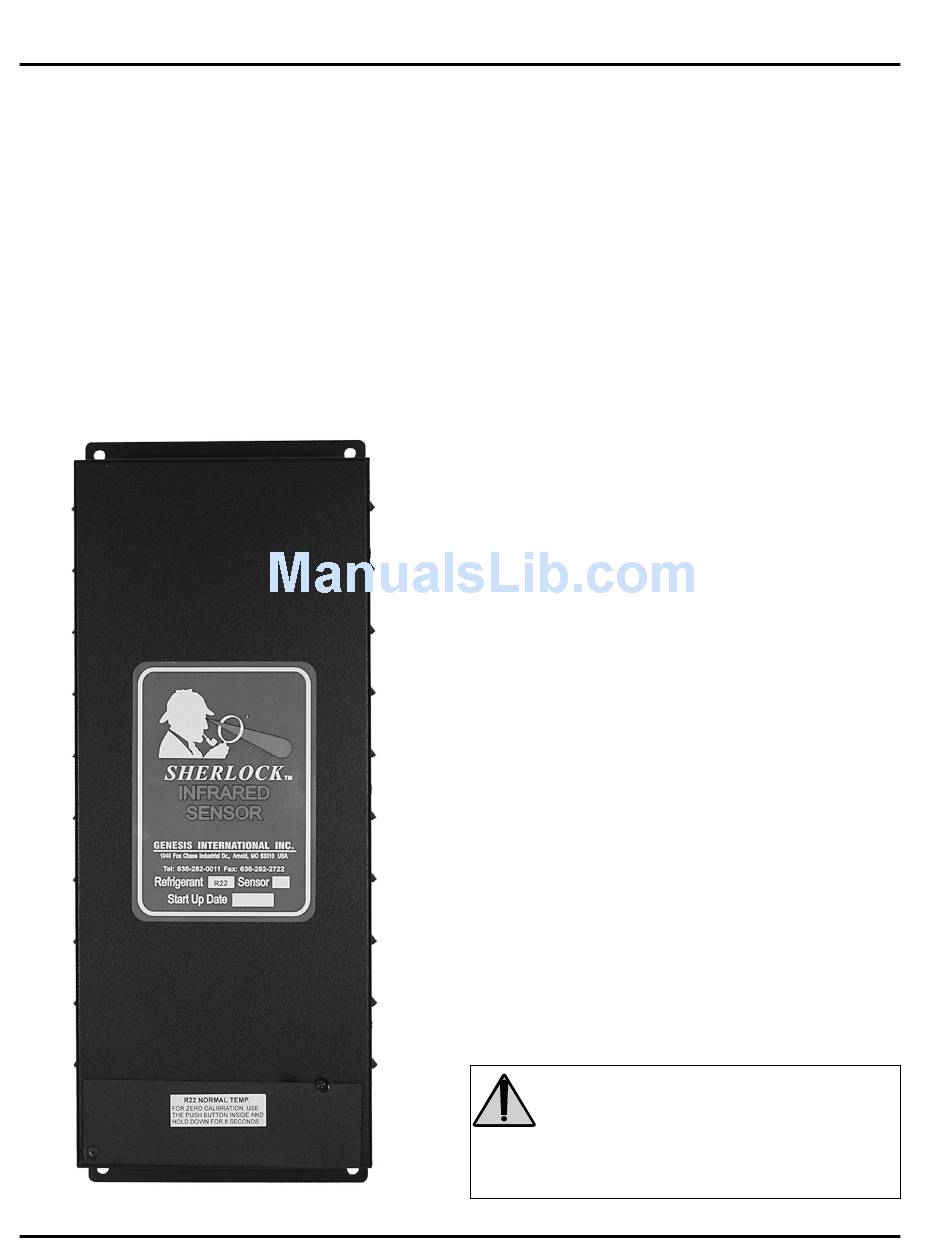

NEMA 3R ALUMINUM HOUSING
10
ENCLOSURE RATING
DIMENSIONS
Inches (mm)
OPERATING ENVIRONMENT
TEMPERATURE
HUMIDITY
POWER INPUT
EFFECTIVE RANGE
SENSITIVITY
RESOLUTION
RESPONSE TIME
CALIBRATION
WARM-UP TIME
LIFE EXPECTANCY
AVAILABLE GAS SENSORS (Part Numbers)
Machinery Room/Walk-In Cooler Application
R11 - 60-0057 R12 - 60-0104
R114 - 82-0260 R123 - 60-0137
R402A - 82-0249 R404A - 60-0052
R408A - 60-0184 R409A - 60-0066
R500 - 60-0067 R502 - 60-0059
Ammonia/NH 3 - 600095
Extended Temperature/Freezer Application
R-11 - 60-0058 R-22 - 60-0047
R-404A - 60-0051 R-408A - 60-0065
R-507A - 60-0062 Ammonia/NH 3 - 60-0096
Call factory for list of additional refrigerants
APPLICATIONS
Typical applications include:
Wineries
Bakeries
Refrigerated Rooms
WARNING!!!! The infrared sensor is not to be
applied into all refrigerated storage applications
where other toxic gases are used in the same room.
Some installations are not suitable for Infrared
technology. Misapplication may result in damage
to sensor. Contact the factory for a specific list of
approved applications.
44-00-0297 SHERLOCK102/202 REV. 4.1 05-02-15
NEMA 3R Aluminum,
Black Powder Coat
12.86 x 4.8 x 2.44
(327 x 122 x 62)
Machine Room 32°-110°F
(0°-43.3°C)
Extended Temp -40°-110°F
(-40°-43.3°C)
0 TO 90% RH Non-Condensing
12VDC, 0.4 A
0 to 1000ppm
±1 ppm at 77°F (25°C), 45% RH
1 ppm
Under Than 60 Seconds
Every 6 Months
Readings will stabilize after 3 hrs
Average of 5 to 7 years in
normal environments
R22 - 60-0053
R134A - 60-0054
R407C - 60-0214
R410A - 60-0165
R507A - 60-0061
R-402A - 60-0142
R-502 - 60-0060
HVAC Chiller Equipment Rooms
Refrigeration Mechanical Rooms
Food Processing Plants
