Genesis SHERLOCK 102 Operation Manual page 12

GENERAL

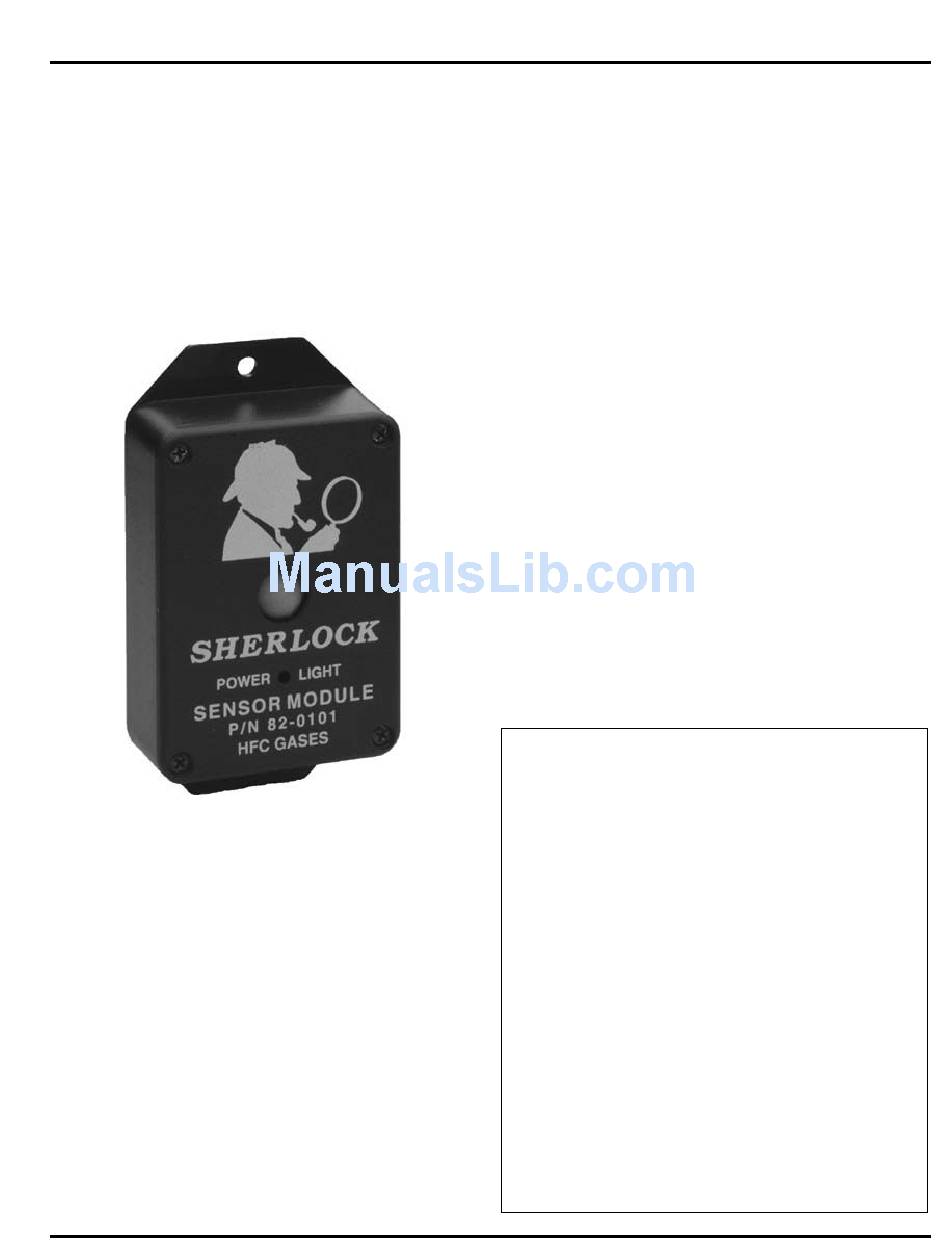

(See manual 44-0283 CMOS Sensor for more) SHERLOCK
CERAMIC METAL OXIDE SEMICONDUCTOR (CMOS)
REFRIGERANT GAS SENSOR was designed to detect for
the presence of a refrigerant gas within an enclosed space.
The sensor is mounted within the space to be monitored and
connected by cable to the monitoring device. Each sensor is
calibrated to a clean air base zero level at the factory prior to
shipment. There are three models of the CMOS sensor, one for
CFC/HCFC gases, one for HFC gases and one for Ammonia.
The CMOS Sensor should be utilized as a signal source for a
SHERLOCK Refrigerant Gas Monitoring System.
APPLICATIONS
Typical applications include:
Refrigerated Rooms
Wineries
Bakeries
SPECIFICATIONS
ENCLOSURE RATING
DIMENSIONS Inches (mm)
NEMA 1
NEMA 3R
POWER INPUT
OUTPUT
(Genesis Control Only)
EFFECTIVE RANGE
44-00-0297 SHERLOCK102/202 REV. 4.1 05-02-15
HVAC Chiller Equipment Rooms
Refrigeration Mechanical Rooms
Food Processing Plants
Standard NEMA1
Optional NEMA 3R
4.3 x 2.4 x 1.2(109 x 61 x 31)
7.3 x 5.9 x 6.5(186 x 151 x 166)
12VDC, 250 mAMPs
0.5 - 5 VDC
20 to 1000 ppm, Control and
Refrigerant Gas Type
Dependent
ACCURACY
REPEATABILITY
AVAILABLE GAS SENSORS
OPERATING ENVIRONMENT
TEMPERATURE
HUMIDITY
CALIBRATON
WARM-UP TIME
LIFE EXPECTANCY
NOTE: These sensors, due to their nature, are susceptible
to detection of non-refrigerant gases and cannot distinguish
the presence of different refrigerant gases, only that there is
a gas present. The CMOS sensor will detect concentrations
of gasoline, diesel, and propane exhaust and fumes from
solvents, paints, cleansers, and others (Please call Genesis
Customer Support for more information.)
accuarcy is a best case and some refrigerant blends can be
off as much as 100% of the Sherlock Control ppm reading.
NOTE: The stated life expectancy for this sensor is 3 to
5 years, however, continued exposure to refrigerants and
other gases and humidity and other adverse conditions can
severely decrease sensor life.
CMOS SENSOR SELECTION CHART
Model 82-0100 NEMA 1 -- CFC/HCFC gases
Model 60-0113 NEMA 3R-- CFC/HCFC gases
R-11
R-400(Lintern)
R-12
R-402A(Hp80)
R-13
R-402B(Hp81)
R-22
R-403A(R-69S)
R-32
R-403B(R-69L)
R-113
R-405A(G2015)
R-124
R-406A(CHG)
R-142B
R-409A(FX56)
Model 82-0101 NEMA 1 -- HFC gases
Model 60-0128 NEMA 3R-- HFC gases
R-23 R-401B(Mp66)
R-123 R-401C(MP62)
R-125 R-404A(HP62)
R-134A R-407A(Klea60)
R-143A R-407B(Klea61)
R-152A R-407C(9000)
R-401A(Mp89) R-407D(Klea)
Model 82-0102 NEMA 1 -- Ammonia gas
Model 60-0129 NEMA 3R-- Ammonia gas
R-717
CMOS SENSOR
+- 10% to 50% of reading
(Gas Dependent, Could be
higher for some newer blends)
±10% when proper calibration
and Maintenance is followed.
CFC/HCFC, HFC & Ammonia
-25 to 120° F (-32 to 49°C)
0 TO 85% RH Non-Condensing
Every 6 Months
Reading will stabilize after 3
hours. Overnight, (up to 18 Hrs)
for low temperature applications
3 to 5 years in most applications
The stated
R-411A(G2108A)
R-411B(G2108B)
R-412A(TP5R)
R-500(AZ50)
R-502
R-508A(Klea5R3)
R-509A(TP5R2)
R-408A(FX10)
R-410A(AZ20)
R-410B(9100)
R-413A
R-503
R-507A(AZ50)
R-508B(SUVA95)
